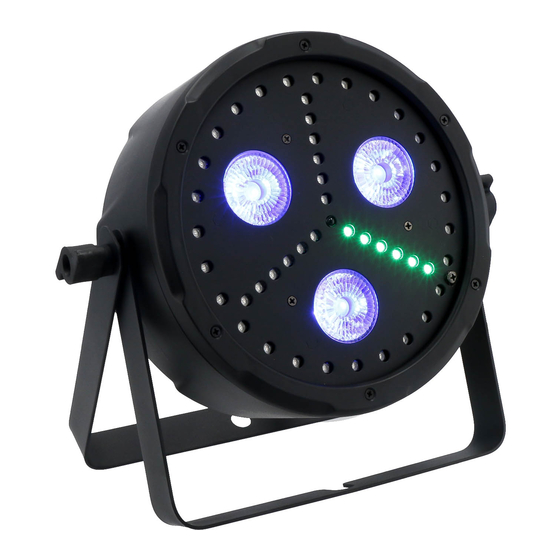

- Page 1 Compar 20 Plus RGB+UV LED Spotlight with Effect SMD LEDs User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 'Box Contents' are included in the package. In the event that the Compar 20 Plus does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Symbol explanation: WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE (Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply to all manufacturers and producers of electronic devices in the EU. Do not throw this product away with regular rubbish.
- Page 6 Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address. Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA request (Return Merchandise Authorisation).
- Page 7 Operation Guidelines for this Device Light output spotlight Light output SMD LED Infrared sensor Double suspension bracket with tightening knobs Power output via IEC C13 Power input via IEC C14 with fuse holder LED display with Menu buttons Ventilation grille Microphone Safety cable attachment point DMX input and output via 3-pin XLR...
- Page 8 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
- Page 9 An explanation of all available functions can be found below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on.
- Page 10 Operation Modes Please find a clear picture of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 11 140-181 LED Slow on, fast off, slow to fast 182-189 LED On 190-231 LED Slow off, fast on, slow to fast 232-239 LED On 240-247 Thunder Strobe 248-255 LED On SMD LED Effect 000-009 No effect 010-019 Effect 1 020-029 Effect 2 030-039 Effect 3 040-049 Effect 4 050-059 Effect 5...
- Page 12 232-239 LED On 240-247 Thunder Strobe 248-255 LED On SMD LED Dimmer Red 0-100% 000-255 SMD LED Dimmer Green 0-100% 000-255 SMD LED Dimmer Blue 0-100% 000-255 SMD LED Effect 000-009 No effect 010-019 Effect 1 020-029 Effect 2 030-039 Effect 3 040-049 Effect 4 050-059 Effect 5 060-069 Effect 6...
- Page 13 IR Remote Control This device comes with a infrared remote control included so that functions can also be changed from a distance. Please find an overview of what can be changed via the remote control below: ON/OFF: Power SOUND: Only available within effect mode STROBE: Can only be used with SMD Colours 1-9 SHOW 1: Show effect 1 SHOW 2: Show effect 2...
-
Page 14: Installation And Connection Instructions
Upright use When you want to place the Compar 20 Plus in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The double suspension bracket is designed so that it can function as a stand. - Page 15 Since a standard 230 V group can handle a maximum load of 16A, and each Compar 20 Plus consumes energy itself, the output can only handle 15A worth of external devices. This also includes a calculated safety margin.
- Page 16 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 17 terminator Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 18: Technical Specifications
Technical Specifications Specifications: - Versatile LED fixture with Spotlight effect, SMD ambient LED effects and a wireless remote control - Base-Light Source: 3x 8W RGB+UV Multichip LED - SMD LED Light Source: 45 x 0.2W RGB SMD LED - Automatic and static operation modes, Master / Slave, DMX and Sound-controlled operation modes - DMX controlled via 9 or 13 channels - Infrared remote control included for diverse stand-alone functions - A range of different in-built Macros and programmes that can be used in both automatic and DMX...
