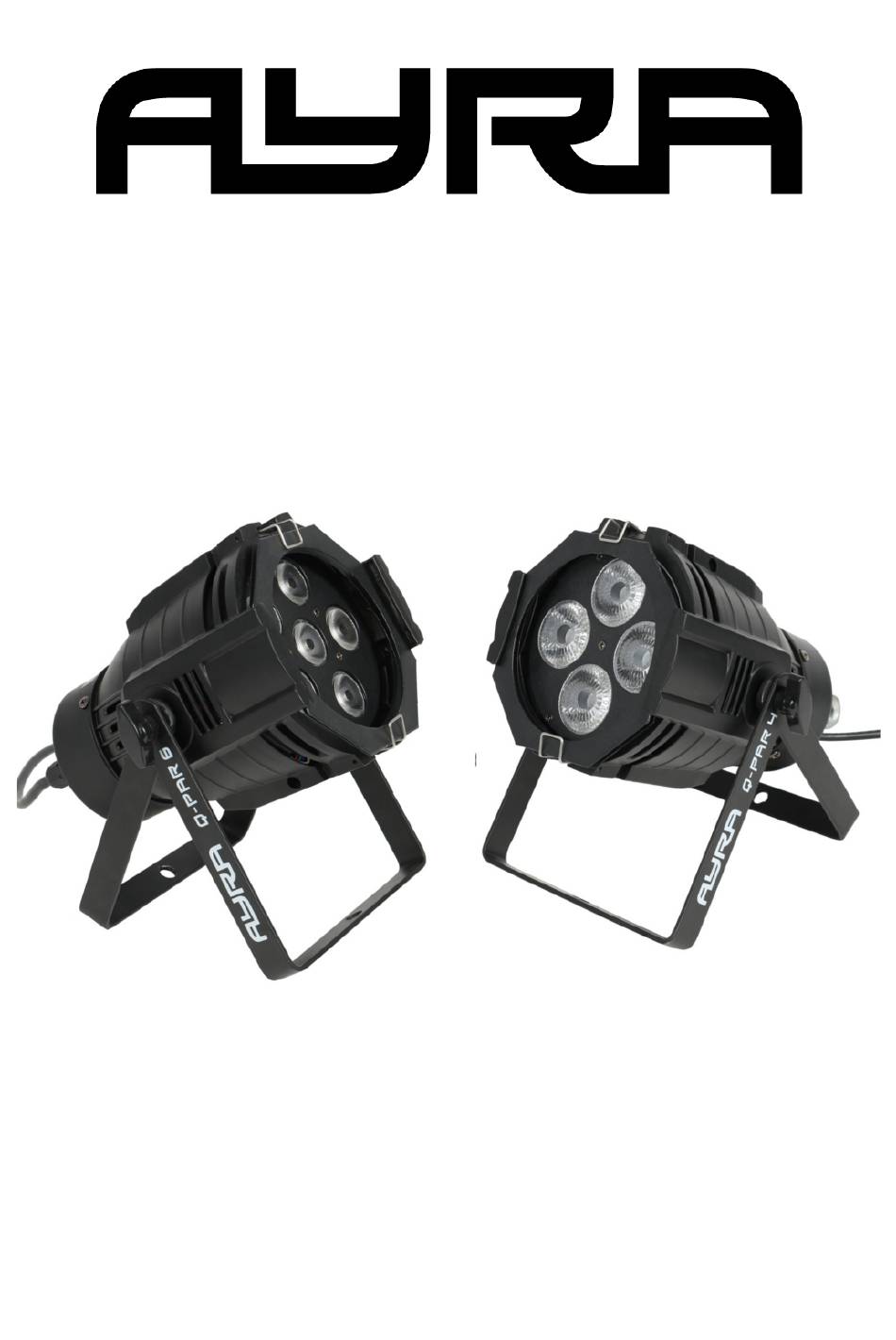

- Page 1 Q-Par 4 / Q-Par 6 RGBW LED spotlight User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:14-02-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing the Ayra Q-Par 4 / 6. This versatile spotlight armature has powerful RGBW modules that not only provide a wide range of colors, but also have a high light output. This manual provides all the information you need to know about the product before you start using it.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Guidelines and operation of this device Note: The Q-Par 6 is shown. The Q-Par 4 has the same connectors in the same position. 1. tightening knob mounting bracket 2. ventilation slots 3. double mounting bracket (can also be used as a floor stand 4.
- Page 7 During calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated. Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons.
- Page 8 You'll find an explanation of the various functions below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond from DMX channel 1. Set it to channel 003, then the device will respond from DMX channel 3, etc.
- Page 9 This is true of DMX lighting of all brands and types. In the case of Q-Par 4 and 6 it is possible to mix these fixtures when using them in master or slave mode, as they share the same channel index and controls.
- Page 10 170-186: Pale Pink 187-203: Amber 204-220: Bright Magenta 221-237: Pale Cyan 238-255: Warm White 3CH1 mode: Function Value Red 0-100% 000-255 Green 0-100% 000-255 Blue 0-100% 000-255 3CH2 mode: Function Value Dimmer: 0 - 100% 000-255 Strobe slow-fast 000-255 Colour macros 000-004 Blackout 005-080: Colour 1-15 081-150: Colour jump (slow - fast)
- Page 11 Upright use If you want to use the Q-Par 4 / 6 in an upright position, ensure that the device is placed on a stable surface like a table, DJ booth or T-bar. The Q-Par 4 / 6 is equipped with a double mounting bracket that can also be used a floor stand.
- Page 12 Cooling The Q-Par 4 / 6 is cooled by a fan that is installed in the housing. It is activated when the device turns on. Make sure the fan and ventilation slots are not blocked and regularly check that they are functioning normally.
- Page 13 DMX lighting troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 14 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The device is not reacting to DMX Incorrect DMX channel mode Check if the device is set to the commands correct DMX channel mode The operation mode can not be...
-
Page 15: Technical Specifications
- colour balance system - temperature display - Test function (checks all the LEDs) - Time register readable Specifications for each model Specifications Q-Par 4 Q-Par 6 LEDs 4x 10 W RGBW LED 6x 10 W RGBW LED Beam angle...
