- Page 1 Compar 50 / 60 RGBAW + UV LED spotlight User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -...

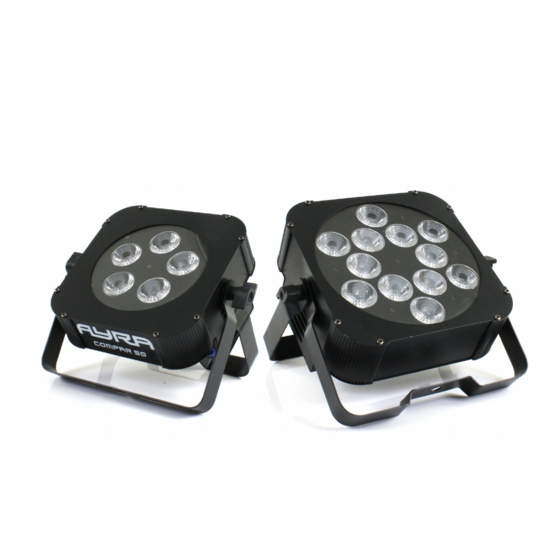

- Page 2 Introduction Thank you for purchasing the Ayra Compar 50 / 60. This versatile spotlight armature has powerful RGBAW + UV modules that not only provide a wide range of colors, but also have a high light output. This manual provides all the information you need to know about the product before you start using it.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Guidelines and operation of this device Note: The Compar 60 is shown in the images. The Compar 50 has the same connectors in virtually the same place. 1. tightening knob mounting bracket 2. rubber foot for horizontal use 3. microphone 4.
- Page 7 During calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated. Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons.
- Page 8 You'll find an explanation of the various functions below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond from DMX channel 1. Set it to channel 003, then the device will respond from DMX channel 3, etc.
- Page 9 Operating modes The following overview is designed to show the differences between the various operation modes that are supported by the above-mentioned menu functions. Auto: In automatic mode, choose one of the operating modes where the device is not dependent on external factors (such as a sound-controlled signals or the presence of noise).
- Page 10 056-059: Colour 15 060-063: Colour 16 064-067: Colour 17 068-071: Colour 18 072-075: Colour 19 076-079: Colour 20 080-083: Colour 21 084-087: Colour 22 088-091: Colour 23 092-095: Colour 24 096-099: Colour 25 100-103: Colour 26 104-107: Colour 27 108-111: Colour 28 112-115: Colour 29 116-119: Colour 30 120-123: Colour 31...
- Page 11 3CH2 mode: Function Value Dimmer: 0 - 100% 000-255 Strobe slow-fast 000-255 Colour macros 000-004 Blackout 005-080: Colour 1-15 081-150: Colour jump (fast - slow) 151-220: Colour fade (slow - fast) 221-255: Sound-controlled 4CH mode: Function Value Red 0-100% 000-255 Green 0-100% 000-255 Blue 0-100%...
- Page 12 Red 0-100% 000-255 Green 0-100% 000-255 Blue 0-100% 000-255 White 0-100% 000-255 Amber 0-100% 000-255 UV 0-100% 000-255 Operating mode selection 000-004 No function 005-080 Colour macro (1-63) 081-150 Colour jump (slow - fast)) 151-220 Colour fade (slow - fast) 221-255 Sound-controlled The information in this user manual is subject to change at any time without notice.
- Page 13 Upright use If you want to use the Compar 50 / 60 in an upright position, ensure that the device is placed on a stable surface like a table, DJ booth or T-bar. The Compar 50 / 60 is equipped with rubber feet that grip suitable surfaces.
- Page 14 This makes it possible to feed multiple products through the device without the need for additional power sockets. The Compar 50 / 60's fuse is only intended to protect the device itself. The input and output of the power supply are directly linked.
- Page 15 DMX lighting troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 16 terminator Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The device is not reacting to DMX Incorrect DMX channel mode Check if the device is set to the commands correct DMX channel mode The operation mode can not be...
-
Page 17: Technical Specifications
- temperature display possibility - test function (checks all the LEDs) - time register readable Specifications for each model Specifications Compar 50 Compar 60 LEDs 5x 18 W RGBAW + UV 6-in-1 chip 12x 18 W RGBAW + UV 6-in-1 chip...
