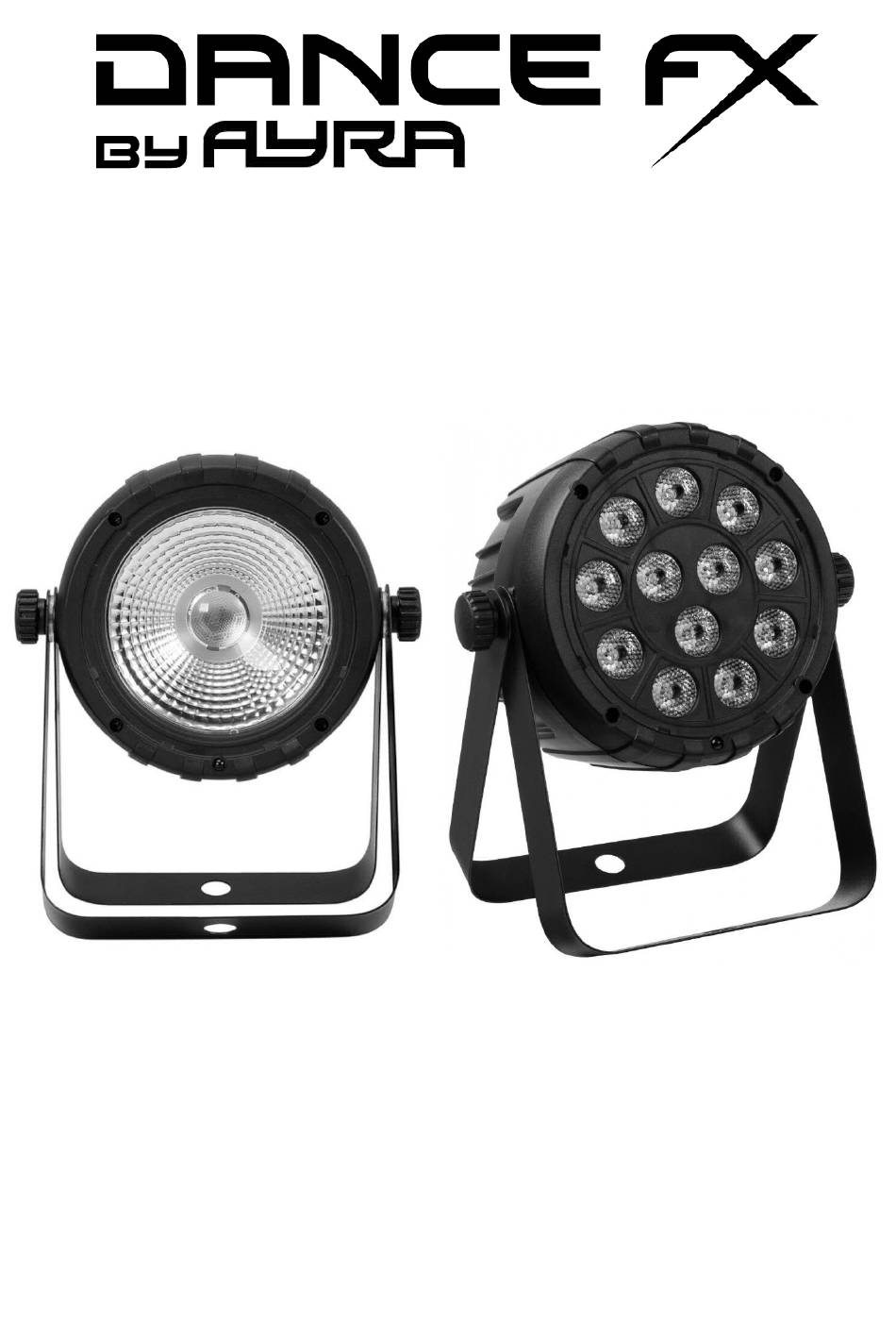

- Page 1 DMX/IR-Controlled LED Spotlights SP12X3 / SP15X1 User Manual The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date & Author Initials: 14-02-2024 RV Revision Date & Author Initials: -...
- Page 2 Introduction Thank you for purchasing the Ayra DanceFX LED spotlight. Ayra’s DanceFX spotlights have been designed to project colourful and dynamic beams of light to enhance the atmosphere at parties and events. This manual provides you with all the information you need to know before using these products.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! WARNING! This device must only be connected to a power socket that matches the specified mains voltage. If this device is connected to a power source with a different voltage, it may cause permanent damage or lead to harmful effects including fire hazards or electric shocks. - Page 4 The light source of the device cannot be replaced. In the event that the light source fails, the entire device will need to be replaced. Important Health & Safety Information: - Do not remove any labels or stickers from this device. - Do not leave any cables lying around where they are in danger of causing a tripping hazard.
- Page 5 Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product. Storage & Transport: - This device is not designed for mobile use. Always transport the device in its original packaging or in a flight case with a foam-lined interior.
- Page 6 Battery Safety WARNING Never swallow batteries. Risk of injury from chemical burns. The included remote control includes a button-cell battery. In the event that a button-cell battery is swallowed, life-threatening internal burns and even death can occur within just 2 hours. Always keep new and used batteries out of reach of children.
- Page 7 Symbol explanation: WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE (Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply to all manufacturers and producers of electronic devices in the EU. Do not throw this product away with normal refuse.
- Page 8 Overview 1. Projection lens 5. Power input 2. IR receiver 6. 3-pin DMX XLR input and output 3. Clamping knob 7. 4-digit LED display with menu buttons 4. Mounting bracket/stand 8. Built-in microphone The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date &...
-
Page 9: Operation
Operation Ayra DanceFX SP3X12 and SP15X1 LED spotlights are capable of projecting a wide array of colours and can be controlled in various modes, including standalone mode, thanks to the fitted 4-digit display and menu-navigation buttons, which can be used to access static colour presets, colour fades, sound-to-light mode, and more. -
Page 10: Program Description
Display Program Description Auto Au - 1 Auto programs (Master - mode) Programm 1 Au - 2 Programm 2 Soun So - 1 Sound controlled mode (Master - mode) Programm 1 So - 2 Programm 2 SPEE SP 1 - SP 9 Select the desired speed (increasing) Stat Colour presets (Master - mode) - Page 11 This applies to all DMX lighting of all brands and types. Message Master IR Remote Control These Ayra DanceFX light effects include a remote control that can be used to change the playback mode. The light effect does not feature any physical controls for changing the light beam colour, activating flash effects or adjusting the playback speed, so always ensure that the included remote control is kept in a safe place.
- Page 12 Function overview (excluding buttons that cannot be used to control the device): Effect projection ON/OFF Colour preset: red (Standby) Red = 255 / Green = 000 / Blue = 000 Colour preset: green Activates automatic programs Red = 000 / Green = 255 / Blue = 000 Colour preset: light blue Activates sound-to-light programs Red = 000 / Green = 255 / Blue = 255...
- Page 13 When chaining multiple DMX-compatible fixtures, all units must be fed the DMX signal. The Ayra DanceFX SP12X3/SP15X1 can be connected via the fitted 3-pin XLR input and output. The DMX channel system offers individual control over the function of every connected fixture as well as synchronised control.
- Page 14 3CH mode: Function Value Dimmer red 0-100% 000 - 255 Dimmer green 0-100% 000 - 255 Dimmer blue 0-100% 000 - 255 4CH mode: Function Value Colour presets 000 – 009 No function 010 – 019: Red 020 – 029: Green 030 –...
- Page 15 5CH mode: Function Value Dimmer red 0-100% 000 - 255 Dimmer green 0-100% 000 - 255 Dimmer blue 0-100% 000 - 255 Function/strobe speed 000 – 000: No function 001 – 005: Sound-controlled (alternate 7 colours) 006 – 010: No function 011 –...
- Page 16 010 – 255: Strobe speed (slow – fast) Setting Up The Unit Ayra DanceFX light effects offer optimum performance when installed in an elevated position. This way, the light beams can travel further. If suspending the unit is not possible, it can also be placed on a tabletop or other flat surface.
- Page 17 DMX Troubleshooting If you happen to encounter any problems while using this unit, we recommend checking this troubleshooting section to see if a solution can be found. If none of the suggested solutions included below solve your particular problem, please contact your local retailer for further advice.
- Page 18 Problem Possible Cause Solution Speaker is too far away, or Place the unit closer to the not enough lower speaker (or vice versa) frequencies (bass) and/or enhance lower frequency reproduction of the sound system. The built-in microphone is not triggered by higher frequencies.
-
Page 19: Technical Specifications
Technical Specifications Model SP12X3 SP15X1 Light source 12 × 3 W RGB LED 1 × 15 W RGB COB LED Beam angle 17 degrees 38 degrees Operating modes Automatic (programs/static), sound-to-light, master/slave, Controllable via 4-digit LED display with menu buttons, IR remote control, Automatic/static functions Colour fading, colour jumping, static colour presets, custom colour mixing...
