- Page 1 DM 20 Dynamic microphone kit User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 10-12-2015 RV Revision date + author initials: -...
- Page 2 The specific polar pattern of the DM 20 means that nearly all sound is captured from the front of the microphone. The sides and rear of this microphone are less sensitive (as shown in the polar pattern graph in the Technical specifications section of this user manual.)
-
Page 3: Box Contents

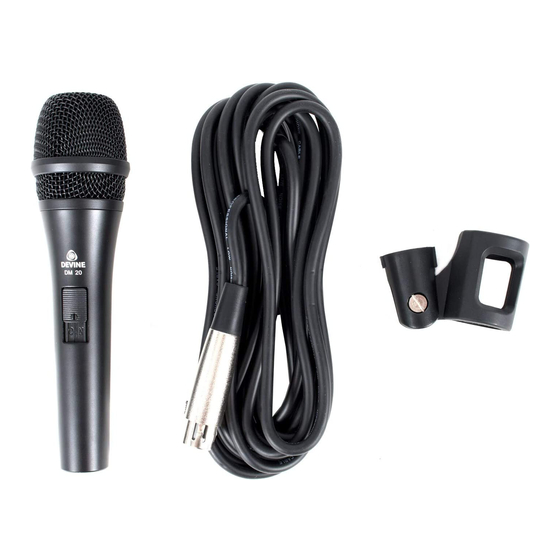

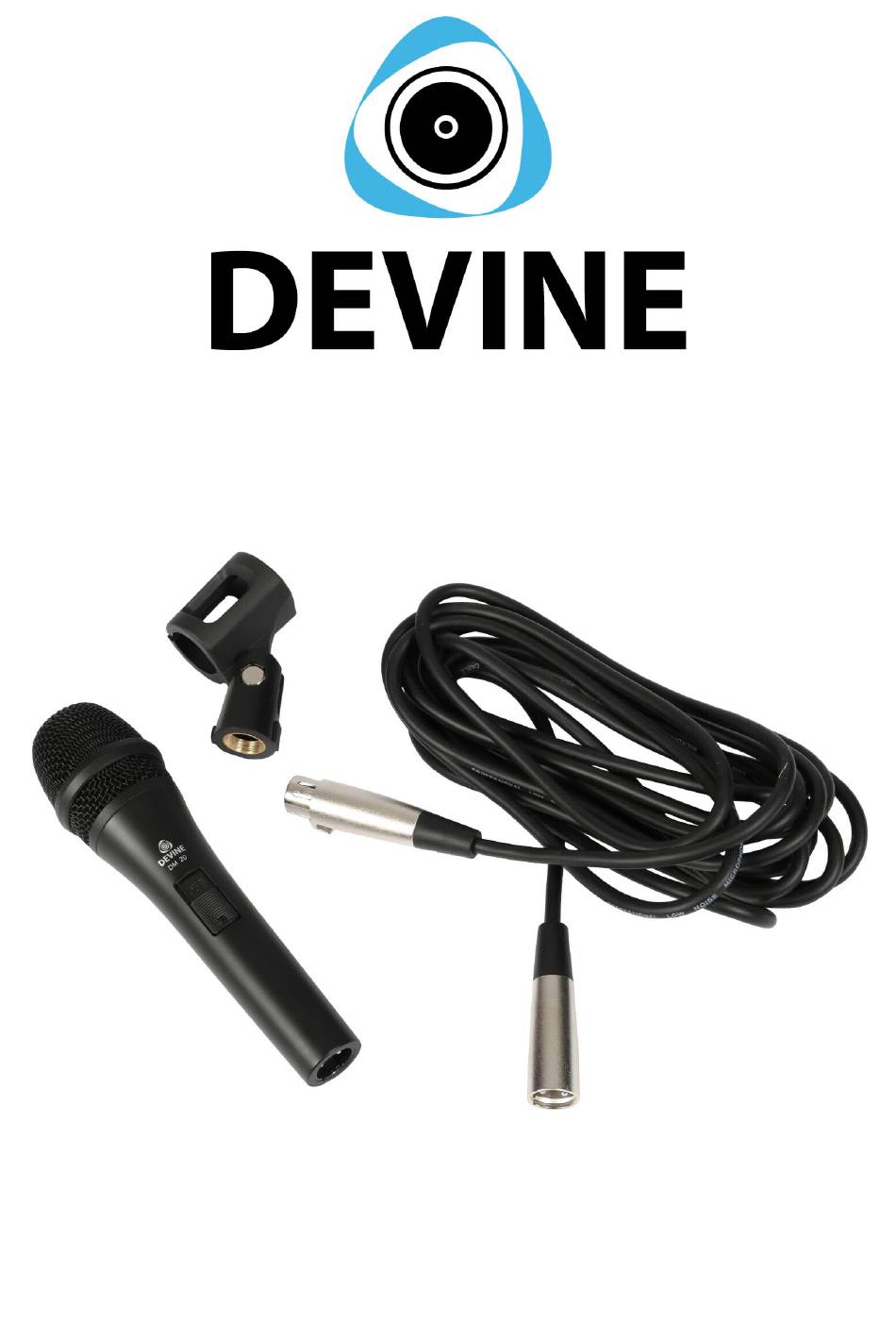

Box contents Box contents: 1x Devine DM 20 dynamic microphone 1x microphone clip with 5/8” thread 1x 3p XLR male – XLR female cable, +/- 5 metres long Unit and accessory inspection - If you do not plan to use the unit for an extended period of time, disconnect it and store it in a dust-free environment. -
Page 4: Using The Microphone
Therefore, placing a wedge monitor directly in front of the microphone, facing the vocalist, is not recommended. Because the DM 20 doesn't pick up much audio from the sides, it would be better to place one or two wedge monitors slightly to the left and/or right, facing the vocalist. - Page 5 Using the switch The DM 20 is equipped with a practical ON/OFF switch and features a screw to adjust the switch tension. Usually, the switch tension setting is high, so it can not accidentally be turned off or on.
-
Page 6: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound, or very low sound level Volume set too low Increase input volume and gain on your mixer, interface or other sound-processing device Microphone positioned too far Place the microphone closer to the away sound source Switch is in OFF position Switch back to ON position... -
Page 7: Technical Specifications
Technical specifications - dynamic vocal microphone - polar pattern: uni-directional (super-cardioid) - sturdy design - ON/OFF switch - 3-pin XLR connection - robust protective grill with integrated foam windshield - frequency response: 40 Hz – 16 kHz - sensitivity: -52 dB +/- 3 dB (0 dB = 1 V/PA @ 1 kHz) - output impedance: 600 ohms +/- 30% (@ 1 kHz) Included accessories: 1x microphone clip with 5/8”...
