- Page 1 BM-600 Professional studio recording microphone User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-03-2014 RV Revision date + author initials: 27-03-2014 RV...
- Page 2 Introduction Thank you for purchasing this Devine BM-600 broadcasting and recording microphone. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the microphone. Also check the contents of the box to make sure all necessary parts are included. If the microphone fails to operate properly, or if you have any problems while using it, disconnect it and contact your local dealer for more information and help.
-
Page 3: Box Contents

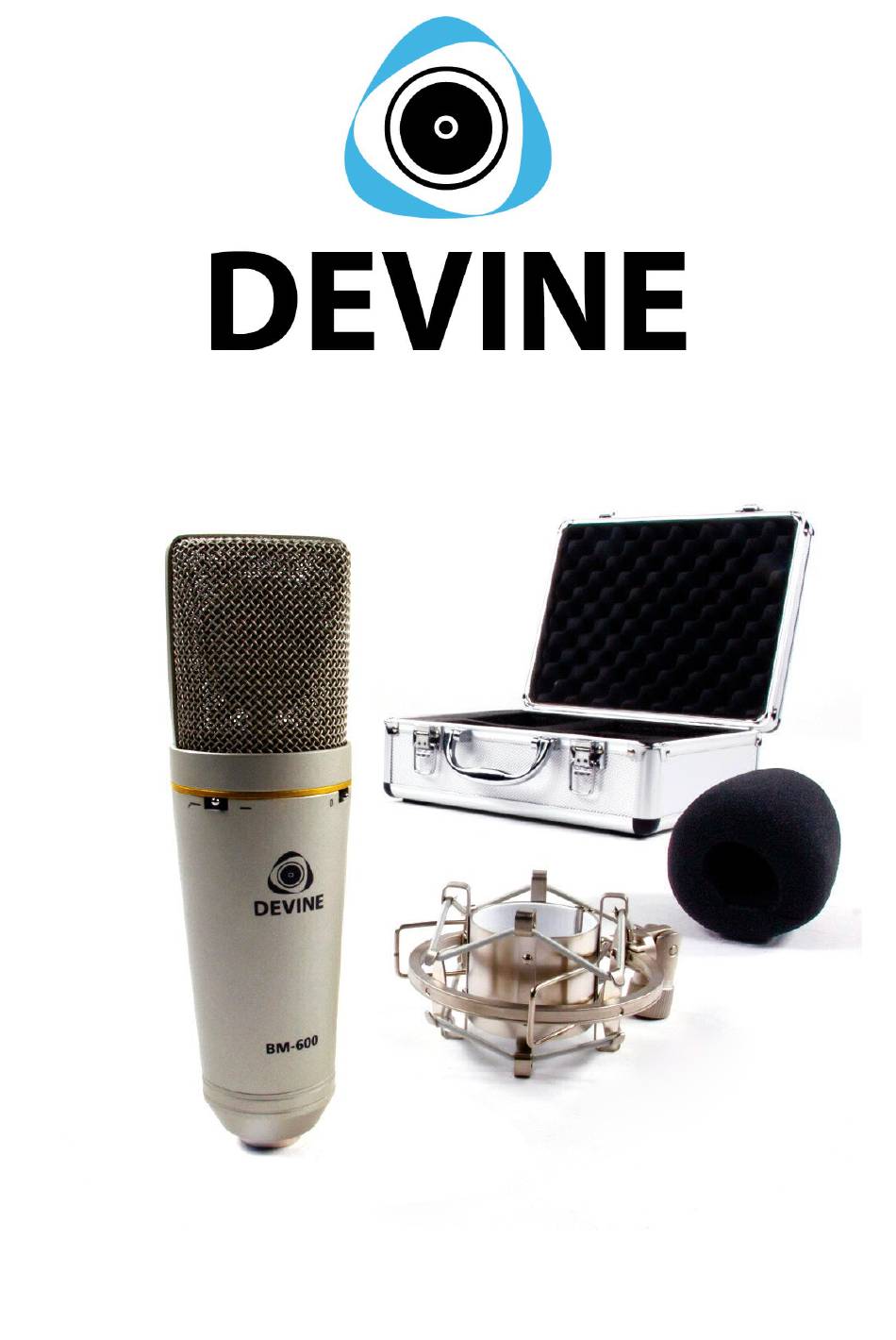

Box contents Box contents: 1x Devine BM-600 microphone 1x windscreen 1x shock mount 1x storage/transport case with foam inlay Unit and accessory inspection - If the unit is not going to be used for a longer period of time, disconnect it and store it in a dust-free environment. - Page 4 Use of the microphone The Devine BM-600 studio microphone is suitable for most recording applications in your studio. Thanks to multiple selectable polar patterns, there is a suitable pattern for almost every application. The Devine BM-600 has three user selectable polar patterns: Unidirectional (cardioid): The most used polar pattern for most vocal and instrument recording applications.
- Page 5 - Pan/Balance settings on the most neutral position - Volume fader or potentiometer set to the lowest possible position - Phantom power in the ‘on’ position (mostly a button per channel, or a group of channels) Microphone: - Steady positioning on a microphone stand, with the included microphone clip - Select the polar pattern which you want to use - Turn off functions such as the -10 dB pad and low-cut filter - Make sure the audio source (vocalist or instrument) is positioned as close as possible to the microphone...
- Page 6 Polar pattern and frequency response The Devine BM-600 has three selectable polar pattern settings, each with its own characteristics. Below you will find the polar pattern and frequency response graph for each selectable pattern. Please note that the several pattern graphics are based on a measured frequency of 1 kHz. The frequency response graph is measured from 20 Hz to 20 kHz.
-
Page 7: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound, or very low sound No phantom power Connect or activate phantom signal power supply Volume set too low Increase incoming volume and gain on your mixer, interface or other sound processing device Microphone positioned too far Place the microphone closer to the away sound source... -
Page 8: Technical Specifications
Technical specifications - condenser studio microphone - pressure gradient transducer - gold-plated 34 mm diaphragm - gold-plated XLR connector - suitable for vocal and instrument recording - -10 dB pad, for clear capture of loud sources, such as drums - high-pass filter, to eliminate low frequency rumble and turbulence 3 selectable pick-up patterns - cardioid - figure-eight... - Page 9 Included windscreen - suitable for outdoor environments - prevents wind noise Included storage and transport case - foam padded interior - protects against shocks, collision, scratches Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-03-2014 RV Revision date + author initials: 27-03-2014 RV...
