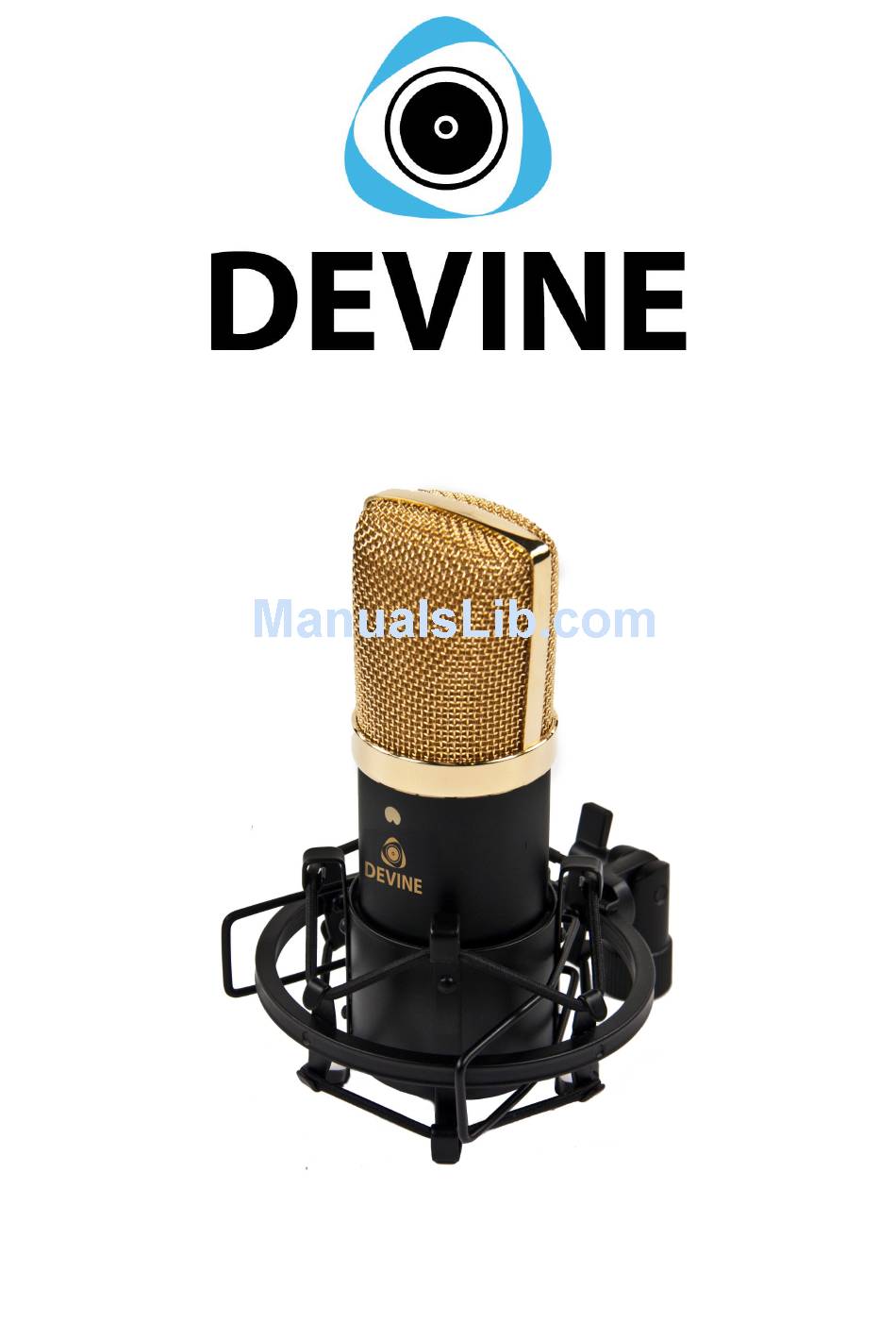

Page 1: User Manual
BM-500 Professional studio recording microphone User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-01-2014 RV Revision date + author initials: 27-01-2014 RV... - Page 2 Introduction Thank you for purchasing this Devine BM-500 broadcasting and recording microphone. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the microphone. Also check the contents of the box to make sure all necessary parts are included. If the microphone fails to operate properly, or if you have any problems while using it, disconnect it and contact your local dealer for more information and help.
-
Page 3: Box Contents
Box contents Box contents: 1x Devine BM-500 microphone 1x black windscreen 1x shockmount 1x storage/transport case with foam inlay Unit and accessory inspection - If the unit is not going to be used for a longer period of time, disconnect it and store it in a dust-free environment. - Page 4 The Devine BM-500 studio microphone is suitable for most recording applications in your studio. The Devine BM-500 has an unidirectional (cardioid) polar pattern. This is the most used polar pattern for most vocal and instrument recording applications. Most of the sound is captured at the front of the microphone, while reducing pickup of sound at the sides and especially the rear.
- Page 5 Placement on a microphone stand or boom arm The shockmount of the BM-500 microphone is equipped with a 5/8” thread, suitable for most microphone stands. If your microphone stand has 3/8” thread, adapters can be purchased separately. For easy positioning, mount the shockmount with the thread mount before mounting the microphone.
-
Page 6: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound, or very low sound No phantom power Connect or activate phantom signal power supply Volume set too low Increase incoming volume and gain on your mixer, interface or other sound processing device Microphone positioned too far Place the microphone closer to the away sound source... -
Page 7: Technical Specifications
Technical specifications - large diaphragm condenser recording microphone - cardioid (uni-directional) polar pattern - 34mm pressure gradient transducer (gold-plated) - high sensitivity for clear and detailed recordings - low self noise - wide dynamic range - stylish appearance (matte black body, gold coloured parts and printing) - +48V phantom power required Details: - frequency response: 20 Hz - 20 kHz...
