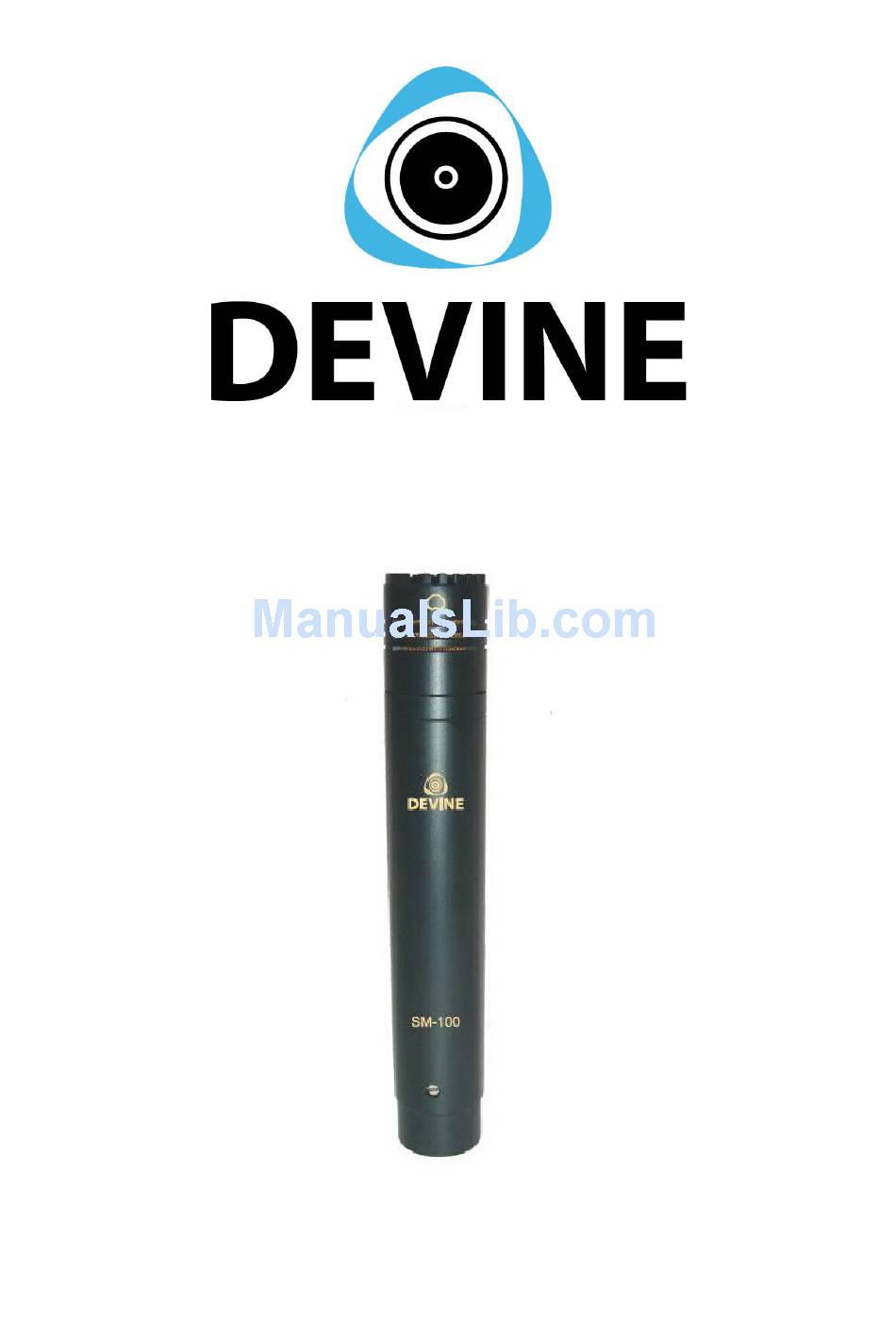

Devine SM-100 Instrument Condenser Microphone User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-01-2014 DK Revision date + author initials: 27-01-2014 DK...
Page 2
Introduction Thank you for purchasing this Devine SM-100 Instrument Condenser Microphone. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the microphone. Also check the contents of the box to make sure all necessary parts are included. If any parts are missing, or if the microphone fails to operate properly, or if you have any problems while using it, disconnect it from phantom power supply and contact your local dealer for more information and help.
Page 3

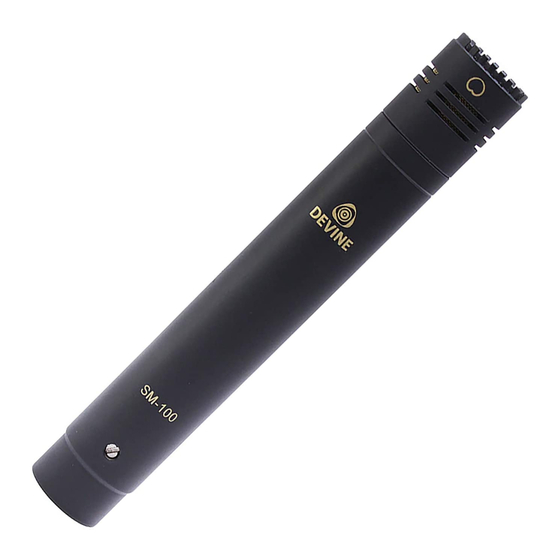

Description The Devine SM-100 is an instrument condenser microphone for recording applications. The SM-100 adopts a 16 mm high quality capsule and a high quality electric circuit. It has a high sensitivity and low self noise, a (cardioid) Uni-directional polar pattern and a 3-pin XLR output connector for perfect signal transmission. The SM-100 can be widely used for recording acoustic instruments, overheads, piano, orchestra sound, etc.
Usage 1. Turn on your amplifier or mixing board and set the volume control to minimum position to connect the phantom power to the microphone. 2. While turning on the phantom switch, accommodate the volume control from low to high until your preferred level is reached.
