Summary of Contents for Devine BM-1000
-

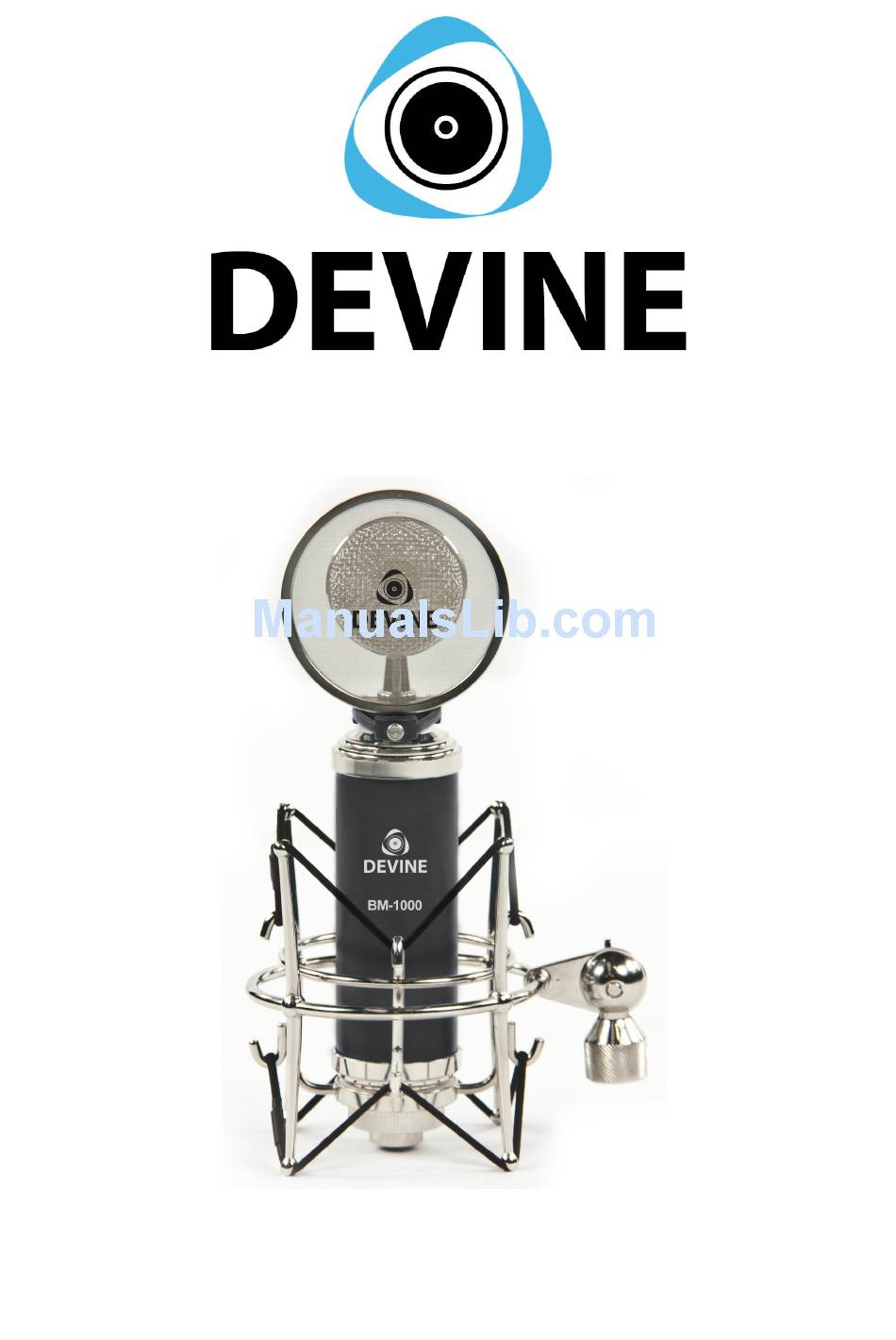

Page 1: User Manual
BM-1000 Professional studio recording microphone User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 27-01-2014 RV Revision date + author initials: 27-01-2014 RV... - Page 2 Introduction Thank you for purchasing this Devine BM-1000 broadcasting and recording microphone. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the microphone. Also check the contents of the box to make sure all necessary parts are included. If the microphone fails to operate properly, or if you have any problems while using it, disconnect it and contact your local dealer for more information and help.
-
Page 3: Box Contents

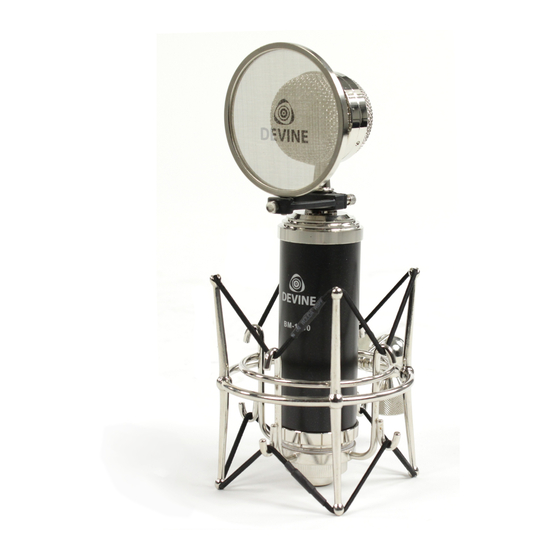

Box contents Box contents: 1x Devine BM-1000 microphone 1x metal popshield 1x shockmount 1x XLR – 3.5 mm jack cable for direct computer recording Unit and accessory inspection - If the unit is not going to be used for a longer period of time, disconnect it and store it in a dust-free environment. - Page 4 The Devine BM-1000 studio microphone is suitable for most recording applications in your studio. The Devine BM-1000 has an unidirectional (cardioid) polar pattern. This is the most used polar pattern for most vocal and instrument recording applications. Most of the sound is captured at the front of the microphone, while reducing pickup of sound at the sides and especially the rear.
- Page 5 Positioning and using the included accessories: The BM-1000 includes a shock mount and metal pop filter for optimal audio performance. Devine recommends to always use the included shock mount, to prevent audio distortion and background or handling noise. The metal pop screen is optional and is mostly used when recording vocals. The windscreen breaks up airflow caused by vocal expressions, which prevents distortion.
-
Page 6: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound, or very low sound No phantom power Connect or activate phantom signal power supply Volume set too low Increase incoming volume and gain on your mixer, interface or other sound processing device Microphone positioned too far Place the microphone closer to the away sound source... -
Page 7: Technical Specifications
Technical specifications - small diaphragm condenser recording microphone - cardioid polar pattern - high sensitivity for clear and detailed recordings - low self noise - wide dynamic range - patended pure aluminum-plating diaphragm - solid construction, modern appeal - reflective nickel plated parts for a stylish appearance in every setup Details: - frequency response: 20 Hz - 20 kHz - sensitivity: -37 dB (+/- 2 dB) at 0dB = 1V/Pa on 1 kHz...
