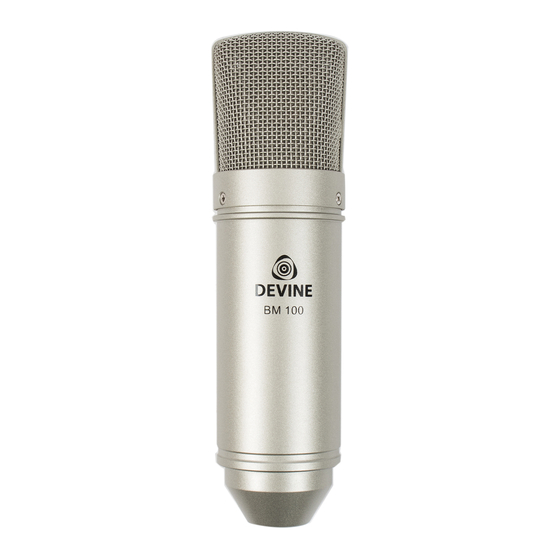

- Page 1 BM-100 Condenser studio microphone User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 10-12-2015 RV Revision date + author initials: -...
- Page 2 The cardioid polar pattern of the BM-100 means that most of the sound is captured from the front of the microphone. When recording a complete band, for example, the cardioid polar pattern keeps ambient sounds and background noise (such as backing vocals, instruments, etc.) to a minimum.
-
Page 3: Box Contents

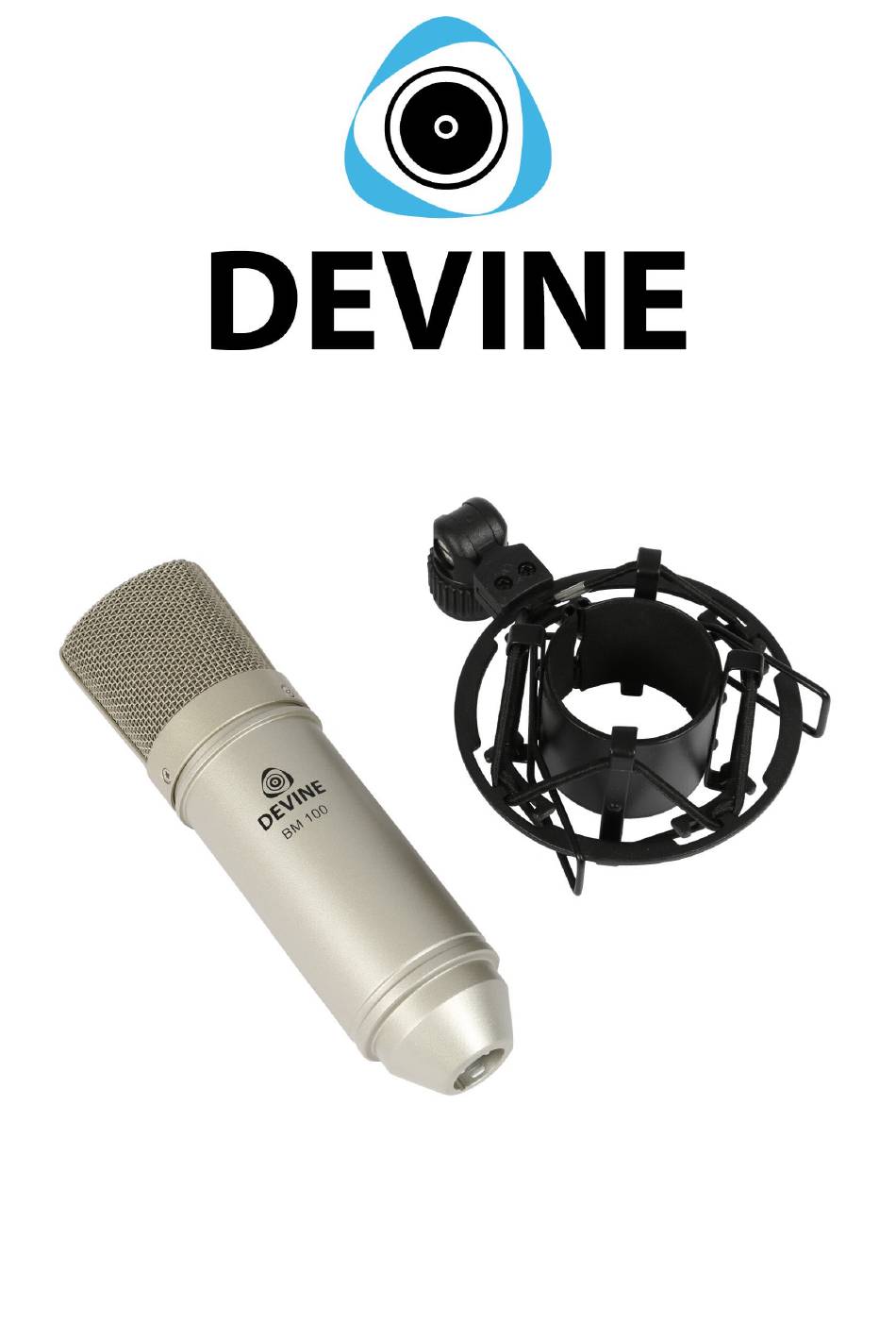

Box contents Box contents: 1x Devine BM-100 condenser studio microphone 1x shock mount Unit and accessory inspection: - If you do not plan to use the unit for an extended period of time, disconnect it and store it in a dust-free environment. -
Page 4: Using The Microphone
The Devine BM-100 studio microphone is suitable for a variety of studio recording applications. It can be used for vocals as well as instrument recording. The BM-100 has a cardioid polar pattern, which captures the most sound directly from in front of the microphone. - Page 5 LED). Protecting the microphone: This Devine microphone is equipped with very sensitive electronics to provide optimal audio performance. Make sure the microphone is not exposed to situations that may cause permanent damage as a result of severe impacts, collision, or falls from high altitudes. Improper use of the microphone is not covered by warranty.
-
Page 6: Troubleshooting
Troubleshooting Problem Possible Cause Solution No sound, or very low sound No phantom power Connect or turn on phantom power signal supply Volume set too low Increase input volume and gain on your mixer, interface or other sound-processing device Microphone/sound source Place the microphone closer to the positioned too far away sound source or vice versa... -
Page 7: Technical Specifications
Technical specifications - studio recording microphone - condenser capsule with 18 mm diaphragm - polar pattern: uni-directional (cardioid) - frequency response: 20 Hz – 20 kHz - sensitivity: -38 dB +/- 2 dB (0 dB = 1 V/Pa @ 1 kHz) - output impedance: 200 ohms +/- 30% (@ 1 kHz) ≥...
