DMP Electronics 717 Installation Manual

717 GRAPHIC ANNUNCIATOR MODULE
Installation Guide
8 9 10 11 12
MODEL 717
CR1
TENS ONES
0 0
R Y G B 0

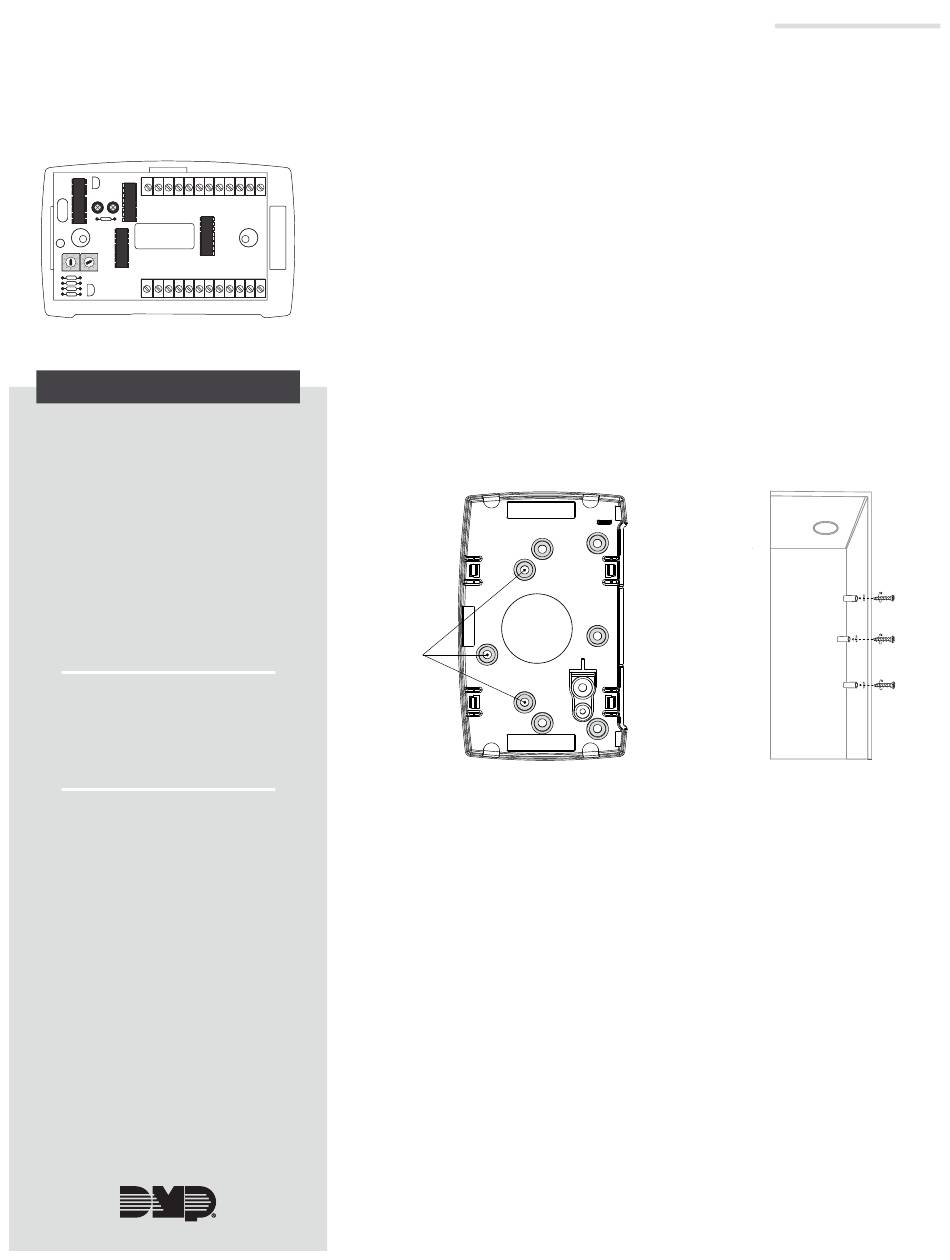

Figure 1: 717 Module
DESCRIPTION
The 717 Graphic Annunciator
Module provides 20 open collector
annunciator outputs that follow
the armed and bypassed state
of assigned panel zones and is
programmable by setting the
address. The module connects
to the panel 4‑wire LX‑Bus and
is addressed using two on‑board
rotary switches. Install multiple 717
modules on the LX‑Bus to achieve a
variety of remote annunciation and
control applications.
Compatibility
• XR150/XR550 Series panels
What is Included?
• One 717 Graphic Annunciator
Module
• Hardware Pack
1
13 14 15 16 17 18 19
OUTPUTS
OUTPUTS
1 2 3 4 5 6 7
2
MOUNT THE MODULE
The 717 comes in a high‑impact plastic housing that you can
mount directly to a wall, backboard, or other flat surface. For easy
installation, the back of the housing contains multiple holes that
allow you to mount the module on a single‑gang switch box or
ring. The module can also be mounted in a DMP enclosure using
the standard 3‑hole mounting pattern. Refer to Figure 2 and
Figure 3 as needed during installation.
1. Hold the plastic standoffs against the inside of the enclosure
side wall.
2. Insert the included Phillips head screws from the outside of
the enclosure into the standoffs. Tighten the screws.
3. Carefully snap the module onto the standoffs.
Mounting
holes
Figure 2: Mounting Hole Locations
WIRE THE MODULE
The 717 module provides two screw type terminal blocks for
connecting LX‑Bus wiring and the wiring from annunciation or
control circuits. Refer to Figure 4 when wiring the module.
Connect red, green, and black wires to the panel LX‑Bus.
For supervised operation, connect the yellow wire to the
panel LX‑Bus. Connect remaining wires as needed. For more
information, refer to "Unsupervised Operation" and "Supervised
Operation".
Note: The 717 module cannot be installed on the Keypad Bus.
Figure 3: Standoff Installation
