Configuration Via Webinterface; Configuration - Output Ports - Gude Expert net control 2i2o Manual

expert net control 2i2o

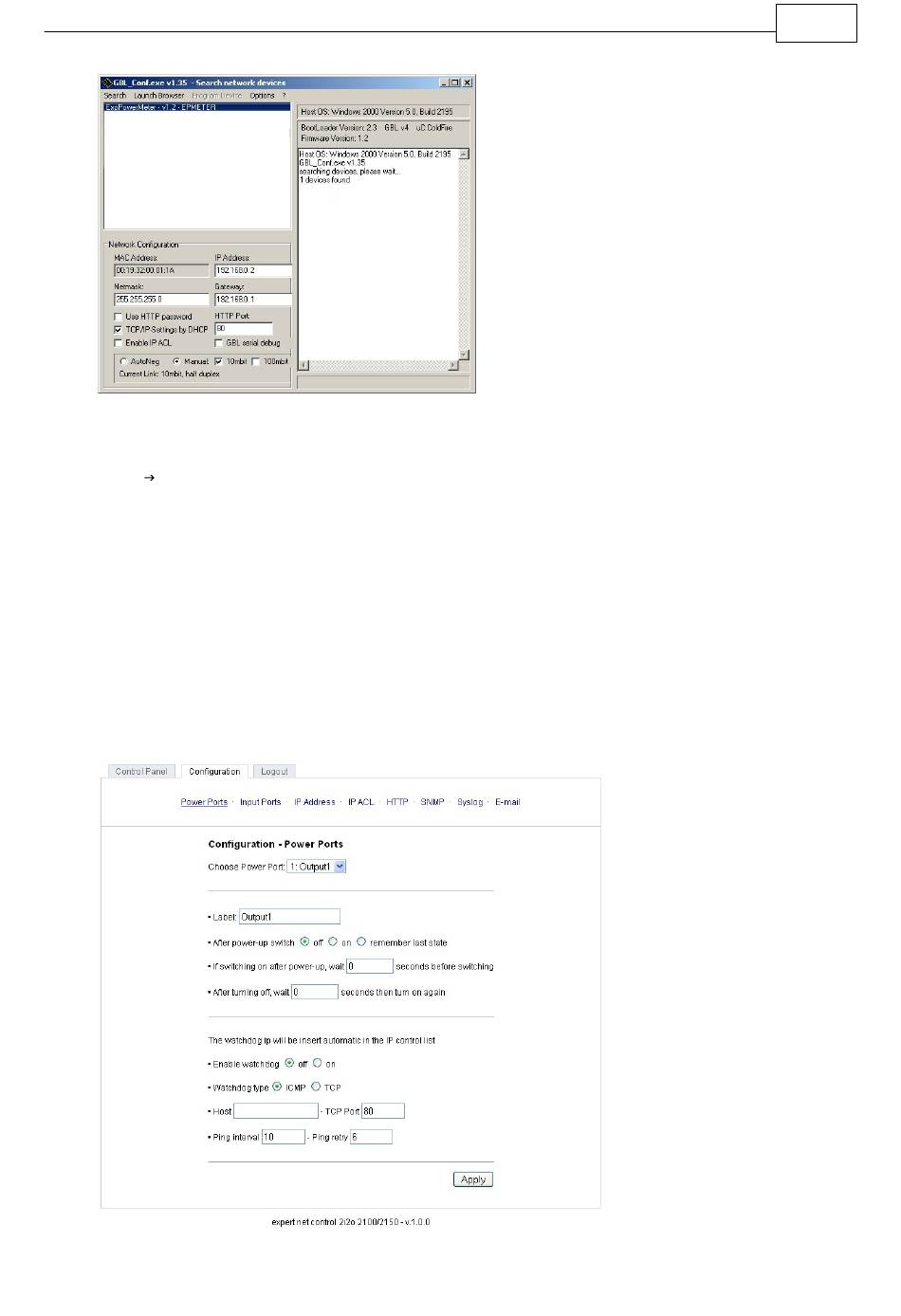

If the displayed IP address accords with the factory settings (192.168.0.2), there is either no DHCP server available in the
network or no free IP address could be allocated.
Enter a free IP address and the according netmask in the entry mask, then save these changes by clicking on Program
Device SaveConfig.
Restart the firmware of expert net control 2i2o, so that the changes will take effect. Now click on Search in order to have
the new network configuration displayed.
4.3

Configuration via webinterface

Go to the website of expert net control 2i2o. Enter the IP address of expert net control 2i2o into the address line of your
internet browser:
http://"IP address of expert net control 2i2o"/
and press LOGIN.
To enter the configuration menu, click on „Configuration" on the upper left side of the screen.
4.3.1

Configuration - Output Ports

6
Configuration
