Installation with CE Elite PI Displays

1. Follow the previous installation steps, omitting steps involving the SmartView Display.
2. Mount the CE Elite PI Display in the elevator.

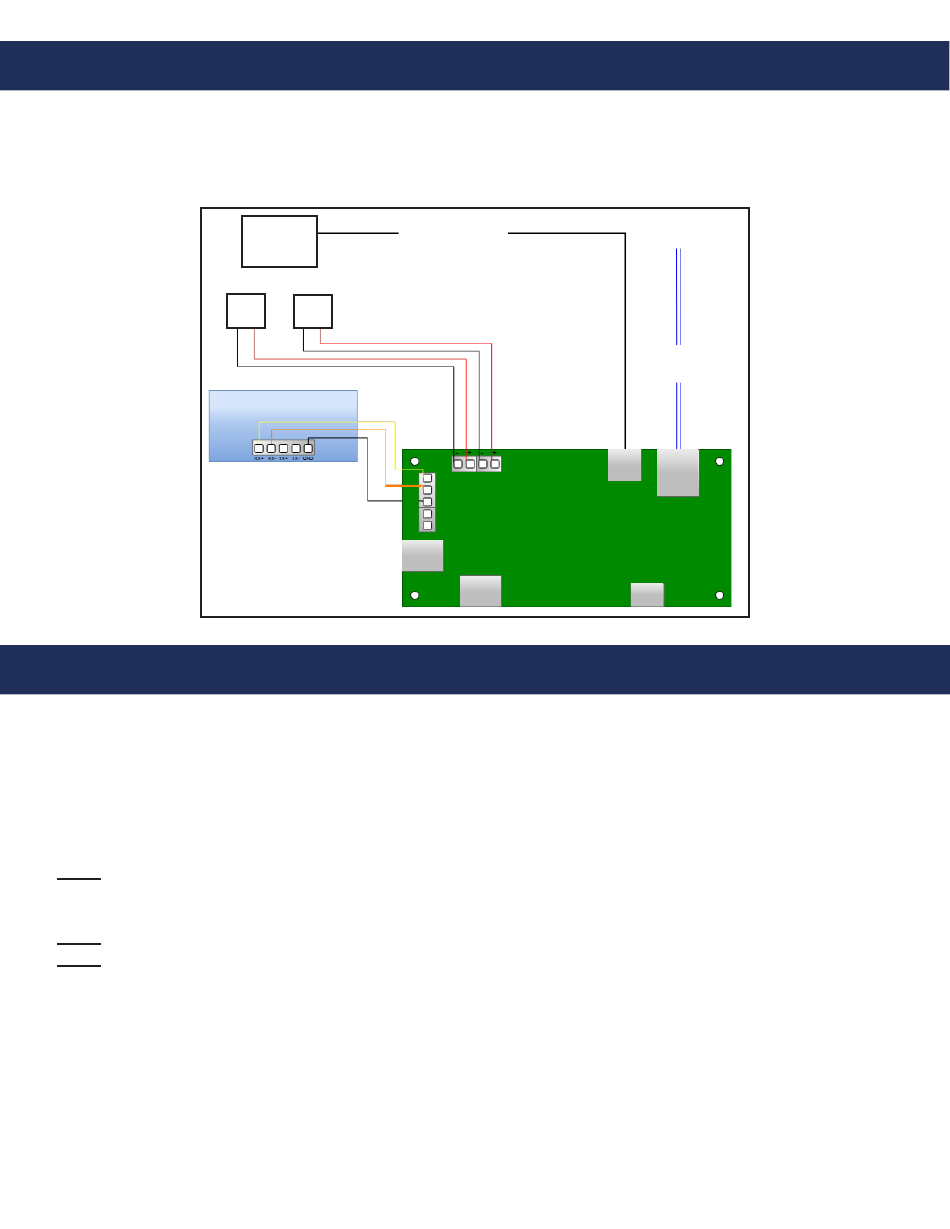

3. Follow the wiring schematic below for connecting the SmartView Controller with a CE Elite PI Display via the
RS485/422 connectors.

In-Building Intercom Master Setup

For initial setup, the SmartView Head-End will need to be connected to the internet.
1. Install the SmartView Controllers before setting up the Head-End (see instructions on page 3).
2. Power on the Head-End and wait for the software to load.
3. Click the SmartView icon to begin linking the Head-End Controllers.
4. On the Configuration Screen, enter each SmartView ID installed at your location.
5. Click Submit.
Note: If you see an error, re-check that a proper ID was entered.
6. The IDs will be displayed on the next page.
7. Once successfully linked, you will see a list of the devices with a view icon next to each.
Note: Wait at least 2 minutes to allow the SmartView devices to link before testing.
Note: To verify operation, click the view icon for one of the devices.
To SmartView Camera
SmartView
Camera
NO
YES
CE Elite PI Display
TX+
TX-
COM
RX+
RX-
HDMI
USB
YES NO
SmartView Controller
(12v, 1A or 24v 0.5A)
Display
Power
Power
To Network Switch
or
Ethernet Extender
Ethernet
Aux
Page 6
