PowerWalker BP P240T-40x9Ah How To Assemble

S.O.P. – How to assemble BP P240T-40x9Ah

Long battery plate

Cable tie

Insulator

M4*8 screw

1、Put insulator on battery plates; fix battery plates( wider side is on the top) and

cable tie.

Torque:16kgf-cn

Cross screw torque

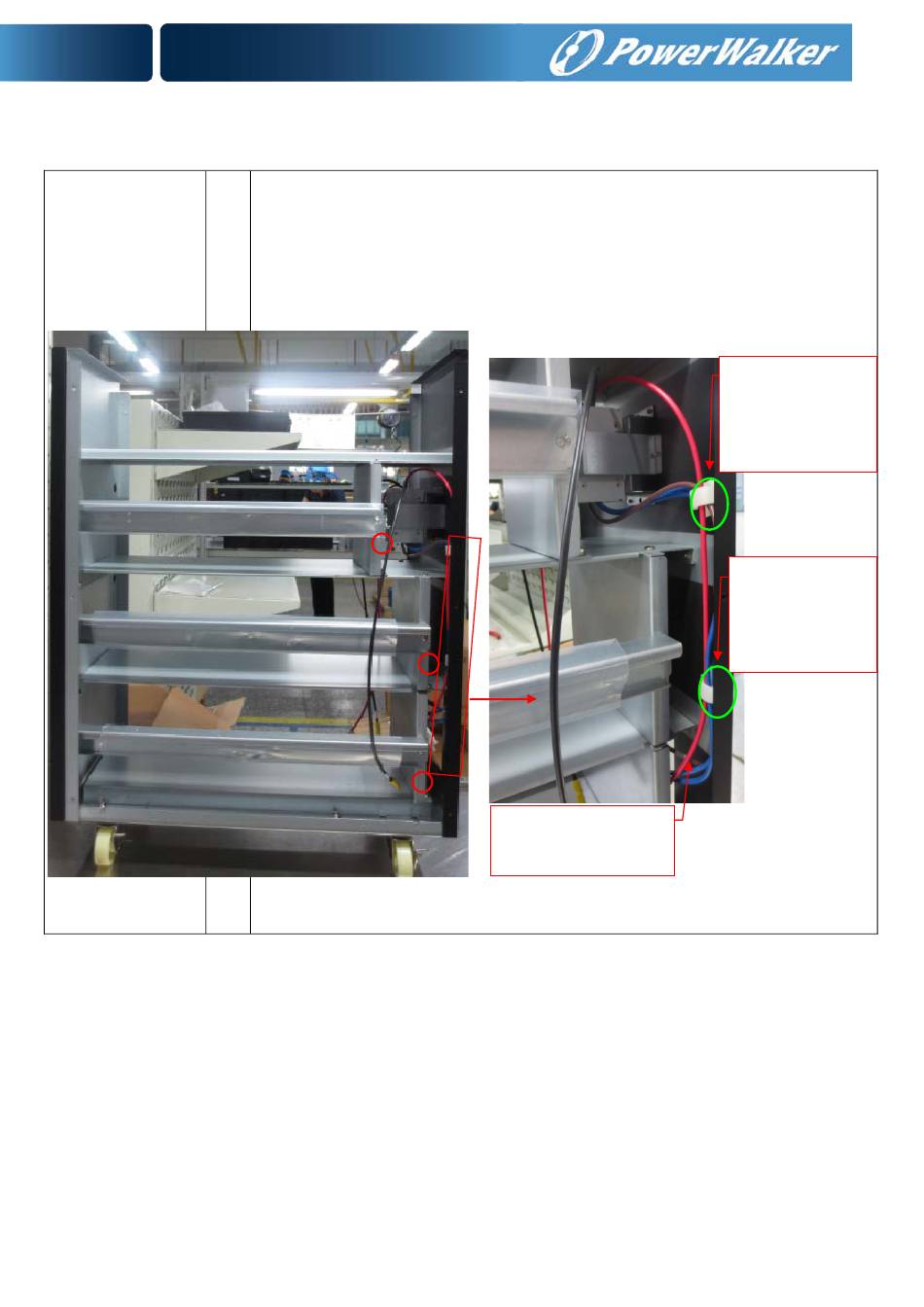

4、fix BAT+、BAT-、

BAT1+to rear panel by

cable tie.

5、Paste the cable tie

as shown in the

picture. The opening

of cable tie is

outward.

6、 Paste the cable tie

as shown in the

picture. The opening

of cable tie is

outward.

Table of Contents

Need help?

Do you have a question about the BP P240T-40x9Ah and is the answer not in the manual?

Page 1 S.O.P. – How to assemble BP P240T-40x9Ah 1、Put insulator on battery plates; fix battery plates( wider side is on the top) and Long battery plate Long battery plate cable tie. Cable tie Torque:16kgf-cn Insulator Cross screw torque M4*8 screw 5、Paste the cable tie as shown in the picture.
Page 2 Assy 2. Put 2 pieces of batteries into insulator as shown below. Totally there are 20 Battery groups of batteries. Insulator 3.Put these 20 groups of batteries into the chassis. Remarks: to avoid short circuit, please be noted that the battery terminals must not contact the metal parts.
Page 3 4、Put insulator on battery plates; fix battery plates( wider side is on the top) Long battery plate Short battery plate M4*8 screws Insulator 1、Insert one side of battery plate into the slot; fix the other side to the metal by M4*8 screws.
Page 4 5、Ensure that the switch is off, then connect batteries with battery wires. Cable tie Measure the voltage of the terminals marked by green circle. The range should be Short battery wire 220V ~280V. Last, Insert BAT2+ and BAT1-。 Long battery wire 3、Insert BAT2+ 6、Insert BAT1- 4、Insert BAT2-...
