Model 5411
Gigahertz Transverse
Electromagnetic
(GTEM!™) Cell
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETS-Lindgren GTEM! 5411 and is the answer not in the manual?

Questions and answers

Related Manuals for Esco ETS-Lindgren GTEM! 5411

Summary of Contents for Esco ETS-Lindgren GTEM! 5411

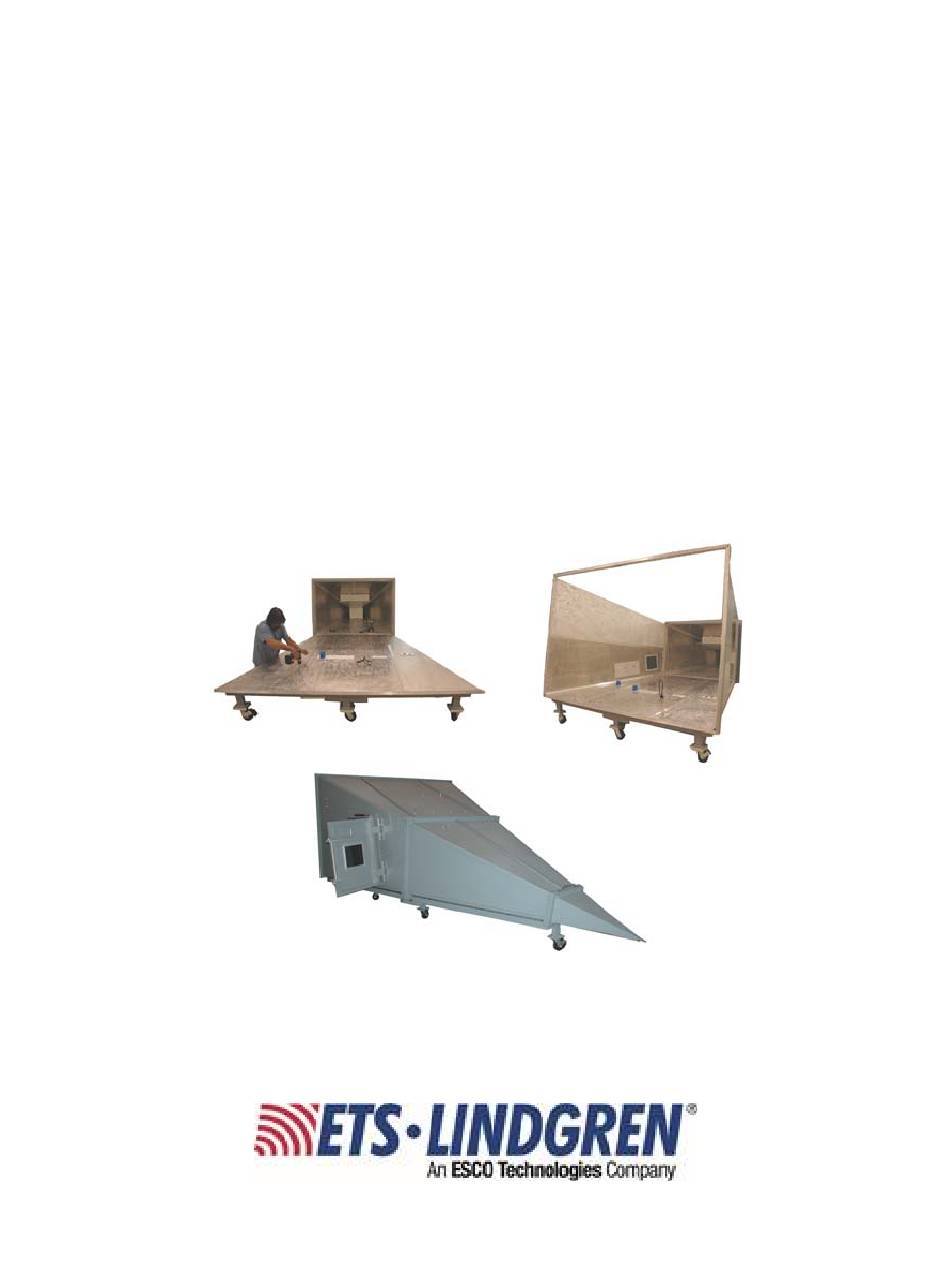

  • Page 1 Model 5411 Gigahertz Transverse Electromagnetic (GTEM!™) Cell Installation Manual...
  • Page 2 ETS-Lindgren L.P. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein;...

  • Page 3: Table Of Contents

    Table of Contents Notes, Cautions, and Warnings ................. v   1.0 Introduction ....................7   About GTEM! Operation ..................... 7   About GTEM! Maintenance ....................7   About GTEM! Warranty ...................... 7   2.0 Receiving Your Order ................... 9   Unpacking and Acceptance ....................
  • Page 4 Rear Wall Assembly ......................58   PCA Installation ........................ 60   Feedthrough Assemblies ....................65   Label Placement ....................... 66   Blower Assembly ......................66   Optional Assemblies ......................67   Verify Performance ......................67   6.0 GTEM! Optional Components Installation ..........69  ...

  • Page 5: Notes, Cautions, And Warnings

    Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard.
  • Page 6 This page intentionally left blank.

  • Page 7: Introduction

    1.0 Introduction This manual provides the steps to uncrate, assemble, and install the ETS-Lindgren Model 5411 Gigahertz Transverse Electromagnetic (GTEM!™) Cell. Steps to install optional components are also included. The uncrating, assembly, and installation of the Model 5411 must be performed by factory installation specialists or individuals authorized by ETS-Lindgren to perform installation.
  • Page 8 This page intentionally left blank. Introduction...

  • Page 9: Receiving Your Order

    2.0 Receiving Your Order Before unpacking your Model 5411 Gigahertz Transverse Electromagnetic (GTEM!™) Cell, see GTEM! Uncrating Instructions on page 17. Unpacking and Acceptance 1. Upon delivery of your order, inspect the shipping container(s) for evidence of damage. Record any damage on the delivery receipt before signing it. In case of concealed damage or loss, retain the packing materials for inspection by the carrier.
  • Page 10 3. Package the system or component carefully. If possible, use the original packing materials to return a system or system component to ETS-Lindgren at the following address: ETS-Lindgren Attn: Service Department 1301 Arrow Point Drive Cedar Park, TX, USA 78613 Phone: +1.512.531.6400 Customer Service: +1.512.531.6498 ets-lindgren.com...

  • Page 11: Before You Begin Gtem! Assembly

    3.0 Before You Begin GTEM! Assembly Before assembling or installing any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. To verify proper alignment and performance, your Model 5411 Gigahertz Transverse Electromagnetic (GTEM!™) Cell was partially assembled and tested at the factory.

  • Page 12: Correctly Install Shielding Strip

     Metric boxed and open-end wrenches  1/4-in or smaller alignment tool (for example, awl, steel rod, drill rod)  Two 8-ft to 10-ft step ladders  Flashlight or utility light  Wax (DoAll-type, or comparable)  Isopropyl rubbing alcohol and wipes Correctly Install Shielding Strip To prevent leakage and provide efficient...

  • Page 13: Outer Corner Joints

    UTER ORNER OINTS NNER ORNER OINTS Before You Begin GTEM! Assembly...

  • Page 14: Joint Strips, Channels, Bars, Any Location Where Components Are Joined (Transitions/Seams)

    OINT TRIPS HANNELS OCATION HERE OMPONENTS OINED RANSITIONS EAMS ANEL CCESS EMOVABLE ANELS Before You Begin GTEM! Assembly...

  • Page 15: Correctly Install Bronze Wool

    Correctly Install Bronze Wool Bronze wool (RP52201) must be tucked into the corners of the inner and outer corner joints and wall and roof assemblies. Using TAPTITE Screws Wax (DoAll-type, or comparable) is required on all TAPTITE® screws. No flat or lock washers are necessary.
  • Page 16 This page intentionally left blank. Before You Begin GTEM! Assembly...

  • Page 17: Gtem! Uncrating Instructions

    4.0 GTEM! Uncrating Instructions Always wear Personal Protective Equipment (PPE) appropriate to the task you are performing, such as gloves, safety glasses, and steel-toed boots. The uncrating process will expose sharp nails and fasteners. Wear appropriate PPE and use caution when handling these items.

  • Page 18: Uncrate Components

    Uncrate Components A standard Model 5411 configuration is typically shipped in the four crates, Crate A, Crate B, Crate C, and Crate D. The number and size of shipping crates may vary for custom Model 5411 configurations. See Required Tools on page 11 for the list of hardware and other supplies required to uncrate, assemble, and install the Model 5411 and components.

  • Page 19: Audit Checklist

    Audit Checklist Actual contents of crates may vary, depending on your configuration. Contact ETS-Lindgren for questions regarding your shipment. Crate A Item Quantity 500 SECTION ASSY (FRONT SECTION W/SUBFRAME & FEED ATTACHED) 1 LOT JOINT STRIP/BAR 1 LOT JOINT STRIP OUTER TOP FRONT 79.4” 5411, part # 106590 JOINT STRIP OUTER TOP REAR 90.7”...
  • Page 20 Crate A, continued Item Quantity JOINT STRIP/BAR continued CORNER JOINT, INNER SPLICE 5411, RQ, part # 106663-2 JOINT STRIP, INNER LEFT 5411, ST, part # 106611 JOINT STRIP, INNER RIGHT 1 5411, part # 106613 JOINT STRIP, INNER RIGHT 2 5411, part # 106614 JOINT STRIP, OUTER LEFT 5411, XY, part # 106612 SPACER PLATE, REAR, part # 106602-1 SPACER PLATE, REAR, part # 106602-2...
  • Page 21 Crate A, continued Item Quantity MANUAL GTEM SOFTWARE, part # 399164 APPLICATION NOTE GTEM FCC COMPLIANCE, part # 399515 MANUAL PRODUCT INFORMATION BULLETIN, part # 399545 TECH SHEET, FINGER STOCK REPLACEMENT, part # 399799 CERTIFICATE OF TEST CONFORMANCE CALIBRATION CERTIFICATE SHIPPING KIT, part # 0104054 STUFFER, GTEM, part # 106397 ABSORBER FLAT LFB CL 4"x2'x2', part # 920090B...
  • Page 22 Crate B Item Quantity SUBFRAMES WIITH CASTERS ATTACHED 1 LOT REAR FRAME ASSEMBLY GTEM 1100, part # 103191-1 REAR FRAME ASSEMBLY GTEM 1100, part # 103191-2 REAR PLATES, UPPER 1 LOT REAR PLATE, UPPER 5411, part # 106623-1 REAR PLATE, UPPER 5411, part # 106623-2 REAR PLATES, LOWER 1 LOT REAR PLATE, LOWER 5411, part # 106624-1...
  • Page 23 Crate B, continued Item Quantity BOT PLATE, SIDE, WITH PLYWOOD ATTACHED, part # 106635-2 1 LOT BOT PLATE, CENTER, WITH PLYWOOD ATTACHED, part # 106635-2 1 LOT SIDE PLATES 1 LOT SIDE PLATE, LOWER 5411 (W/BLWR CUTOUT)**, part # 106636-1 SIDE PLATE, UPPER 5411****, part # 106637 DOOR SIDE PLATES 1 LOT...
  • Page 24 Crate B, continued Item Quantity PINS 1 LOT PIN CLEVIS 3/4 X 2 98306A554 MCMASTER, part # 890302 COTTER PIN HAIR 1/8" 90149A039 MCMASTER, part # 890303 GROUND LUG, part # 890719 FRONT FRAME ASSEMBLY GTEM 1750, part # 102392 ASSEMBLY WAVELENGTH FEEDTHRU, part # 102049B FRT JOINT BRACE GTEM 1750, part # 102402 REAR JOINT BRACE GTEM 1750, part # 102403...
  • Page 25 Crate B, continued Item Quantity SEPTUM, REAR 5411, part # 106642 PCA A ASSY GTEM 1100, part # 105970 BAR PCB MOUNT GTEM BOARDS, part # 102368 PCA CARD A PURCHASED ASSY GTEM 1100, part # 102990D EPOXY 2-PART KIT 1838-L B/A 3M, part # 920172 PCA B ASSY GTEM 1100, part # 105971 BAR PCB MOUNT GTEM BOARDS, part # 102368...
  • Page 26 Crate B, continued Item Quantity FLOOR ASSEMBLY 5411, part # 106666 continued JOINT STRIP OUTER TOP FRONT 79.4" 5411, part # 106590 JOINT STRIP OUTER TOP REAR 90.7" 5411, part # 106591 JOINT STRIP INNER T/B FRONT 81.07" 5411, part # 106596 JOINT STRIP INNER T/B REAR 91.8"...
  • Page 27 Crate B, continued Item Quantity PRIMARY DOOR, NO WINDOW STANDARD 5411, part # 106758 1 LOT FLANGE BEARING FL102-8 BUNTING, part # 0880079 BEARING FLANGE OIL BRZ FL40-8 MIDCAP, part # 0880103 SWITCH END CAP GTEM 500, part # 102251 PIVOT ARM,GTEM DOOR, part # 102571 SWITCH BRACKET GTEM, part # 102592 ACTUATOR SWITCH GTEM 1750, part # 102933...
  • Page 28 Crate B, continued Item Quantity PRIMARY DOOR, NO WINDOW STANDARD 5411, part # 106758 continued JOINT STRIP 1,OUTER DOORSIDE, 5411, part # 106615 JOINT STRIP 2, OUTER, DOORSIDE, 5411, part # 106616 DOOR SIDE PLATE, UPPER 5411****, part # 106638 DOOR SIDE PLATE, LOWER 5411****, part # 106639 DOOR PANEL 5411 (NO WINDOW CUTOUT), part # 106644-2 MED DOOR OUTER FRAME ASSY WELDED 5411, part # 106654...
  • Page 29 Crate B, continued Item Quantity PRIMARY DOOR, NO WINDOW STANDARD 5411, part # 106758 continued SCREW,M4 X 12MM,PHIL,PAN,SS, part # 930432 SCREW,M4 X 12,POZI,PAN,TAPTITE, part # 930436 SCREW,M4 X 12,POZI,FLAT,TAPTITE, part # 930439 SCREW,M4 X 16MM,PHIL,PAN,SS, part # 930441 SCREW,M4 X 16,SH,SET,SS, part # 930442 SCREW,M4 X 25MM,PHIL,PAN,SS, part # 930460 SCREW,M4 X 35,PHIL,PAN,SS, part # 930470 SCREW,M4 X 40,PHIL,PAN,SS, part # 930471...
  • Page 30 Crate B, continued Item Quantity FOAM FRONT BLOCK SEPTUM GTEM 500, part # 870026 FOAM MIDDLE BLOCK SEPTUM GTEM 500, part # 870027 FOAM REAR BLOCK SEPTUM GTEM 500, part # 870028 FOAM WALL UPPER GTEM 1750, part # 870050 FOAM WALL LOWER GTEM 1750, part # 870051 FOAM WEDGE GTEM 1750, part # 870052 FOAM WALL UPPER...
  • Page 31 Crate C Item Quantity BOT ABS ASSY WITH MOUNTING ARMS & HARDWARE, part # 103195 1 LOT SWIVEL ROD GTEM 1750, part # 102483 ADJUSTING ROD GTEM 1750, part # 102484 ROD HOLDER GTEM 1750, part # 102485 ROD CLAMP GTEM 1750, part # 102486 COVER GTEM 1750, part # 102487 BOT ABSORB FRAME ASSY GTEM 1100, part # 103128 BOTTOM PLYWOOD MOUNT GTEM 1100, part # 103131B...
  • Page 32 Crate C, continued Item Quantity BOT ABS ASSY WITH MOUNTING ARMS & HARDWARE, part # 103195 continued SCREW,10MM X 12MM,SH,SHLD,SS, part # 930731 BOLT,M8 X 25,HEX,SS, part # 930732 EPOXY KIT 2-PART RESIN T-88, part # 920001 GTEM! Uncrating Instructions...
  • Page 33 Crate D Item Quantity TOP ABS ASSY, part # 103196 SWIVEL ROD GTEM 1750, part # 102483 ADJUSTING ROD GTEM 1750, part # 102484 ROD HOLDER GTEM 1750, part # 102485 ROD CLAMP GTEM 1750, part # 102486 COVER GTEM 1750, part # 102487 TOP ABSORBER FRAME ASSY GTEM 1100, part # 103129 TOP PLYWOOD MOUNT GTEM 1100, part # 103130B ABSORBER MOUNT 9...
  • Page 34 Miscellaneous Item Quantity WASHER,1/4 X 1 X 1/8,SS, part # 102355 ROD CLAMP GTEM 1750, part # 102486 THUMBSCREW M4 X 12, part # 106364 CLAMP, PCB 5411, part # 106607 NUTBAR, 5411, part # 106608 BOLT,1/4-20 X 1-1/2,HEX,SS, part # 910450 WASHER,1/4,FLAT,SS, 910455 ROLL PIN,3/32 X 3/8,SS, part # 910525 EPOXY KIT 2-PART RESIN T-88, part # 920001...
  • Page 35 Miscellaneous, continued Item Quantity SCREW,M4 X 40,PHIL,PAN,SS, part # 930471 WASHER,M4,FLAT,SS, part # 930482 WASHER,M4 SPLIT LOCK,SS, part # 930487 NUT,M4,HEX,SS, part # 930488 SCREW,M6 X 10,POZI,PAN,TAPTITE, part # 930612 SCREW,M6 X 20,PHIL,PAN,SS, part # 930641 BOLT,M6 X 20,HEX,SS, part # 930642 SCREW,M6 X 20,POZI,PAN,TAPTITE, part # 930649 BOLT,M6 X 25,HEX,SS, part # 930651 CAP SCREW HEX HD SS M6x45, part # 930671...
  • Page 36 This page intentionally left blank. GTEM! Uncrating Instructions...

  • Page 37: Gtem! Assembly Instructions

    5.0 GTEM! Assembly Instructions Prior to following the steps in this section, see Before You Begin GTEM! Assembly on page 11. Section 500 and Feed Assembly SSEMBLY RAWINGS  Figure 1 on page 71  Figure 2 on page 72 ARTS EQUIRED UMBERS...
  • Page 38 1. Remove the section 500 and feed assembly from Crate A as instructed in GTEM! Uncrating Instructions on page 17. 2. Thread the end connector onto the feed assembly. GTEM! Assembly Instructions...

  • Page 39: Rear Frame Assembly

    Rear Frame Assembly SSEMBLY RAWINGS  Figure 7 on page 77 ARTS EQUIRED UMBERS  Frame coupler 102436  Coupler leg with caster 106740  Rear frame assembly, right 103191-1  Rear frame assembly, left 103191-2  M6 x 25 hex cap screw 930651 ...

  • Page 40: Rear Floor Assembly

    Rear Floor Assembly SSEMBLY RAWINGS  Figure 3 on page 73  Figure 4 on page 74  Figure 6 on page 76 ARTS EQUIRED UMBERS  Bottom center plate, plywood 106634, 106657 attached  Bottom side plate, plywood attached 106635-1, 106656-1 ...
  • Page 41 6. Place bottom center plate with plywood attached onto center of rear frame assembly completed in the previous section. 7. Place one bottom side plate with plywood attached on each side of the center bottom plate. Joint strips are stamped on one end. Position the stamped ends toward the front or feed section of the Model 5411 Gigahertz Transverse Electromagnetic (GTEM!™) Cell.

  • Page 42: Corner Bracket And Side Plate Assembly

    Corner Bracket and Side Plate Assembly SSEMBLY RAWINGS  Figure 1 on page 71  Figure 6 on page 76  Figure 9 on page 79 ARTS EQUIRED UMBERS  Shielding strip 890259  Rear bar L/R 106604  Corner bracket 106221 ...
  • Page 43 15. Secure all four corners, and then tighten the outer and inner corner joints with M6 x 20 TAPTITE screws. 16. Start evenly bolting the dowels and brackets, and then securely tighten them. Using a flat-head screwdriver, position the slot on each of the dowels horizontally (90 degrees to the threads).
  • Page 44 Side plate install GTEM! Assembly Instructions...
  • Page 45 18. Fasten the right and left side plate assembles individually to the front joint bars (R/L) with M6 x 20 TAPTITE screws. 19. Repeat step 14 to step 17 to attach rear bar T/B to corner brackets. GTEM! Assembly Instructions...

  • Page 46: Roof Assembly

    Roof Assembly SSEMBLY RAWINGS  Figure 1 on page 71  Figure 4 on page 74  Figure 6 on page 76 ARTS EQUIRED UMBERS  Rear center top plate 106632  Front joint bar 106618  Inner strip T/B 106601 ...
  • Page 47 Insert rear side plates 22. Place one top rear side plate on each side of the rear center top plate and insert into the center of the front joint bar. Joint strips are stamped on one end. Position the stamped ends toward the front or feed section of the Model 5411.
  • Page 48 26. Insert and tighten remaining M6 x 10 TAPTITE screws into the rear bar. 27. Attach shielding strip (890259) to the inner and outer corner joints. Make sure to attach the shielding strip so that the gasket fingers face this direction: ...
  • Page 49 Along the inside of one end, the inner and outer corner joints are stamped with a reference ID such as EF, GH, JK, and so on. The reference ID will always be assembled with the markings closest to the front or feed section of the Model 5411.

  • Page 50: Door Assembly

    Door Assembly SSEMBLY RAWINGS  Figure 1 on page 71  Figure 13 on page 83 ARTS EQUIRED UMBERS  Shielding strip 890259  Door assembly 106758  M4 x 12 TAPTITE screw 930436 See Correctly Install Shielding Strip on page 12 for illustrations of how to install shielding strip.
  • Page 51 At the corner of the door is a safety switch. The customer may choose to connect this safety switch to an indicator, such as a lamp or other type of light. When connected, opening or closing the door turns off or on the indictor to alert that a test is in progress.

  • Page 52: Septum And Feed Septum Assembly

    Septum and Feed Septum Assembly SSEMBLY RAWINGS  Figure 5 on page 75 ARTS EQUIRED UMBERS  M16 Acorn nut 931080  Sleeve spacer 106223  KEVLAR braid 890309  Adjustment sleeve 102425D  M4 x 6 Phillips flat-head screw 930403 –...
  • Page 53 To fasten the rear of the septum plate to the feed septum plate: The septum plate thickness varies. Use either M4 x 6 Phillips flat-head or M4 x 8 Phillips flat-head screws. Either screw not used may be discarded. The screw threads must protrude through both septum plates but not beyond the surface of the septum assemblies.

  • Page 54: Cleaning

    37. If necessary, use a Phillips screwdriver to carefully loosen (but do not remove) the rear septum adjustment brackets fastened to the KEVLAR braided rope. This will raise or lower the rear septum to adjust the rear septum to the feed septum angle of projection.

  • Page 55: Rear Wall Absorber

    Rear Wall Absorber SSEMBLY RAWINGS  Figure 4 on page 74  Figure 10 on page 80 ARTS EQUIRED UMBERS  Angle mount 102525  (Top) M6 x 20 hex cap screw 930642  (Bottom) M6 x 45 hex cap screw 930671 ...
  • Page 56 41. With assistance from two or more crewmembers, slide bottom absorber assembly into bottom angle mounts. 42. Install bottom frame adjustment arms to side wall using M8 x 35 hex cap screws (930747). 43. Repeat step 41 to install the top absorber assembly into top angle mounts, and then secure with clevis pins and cotter pins.
  • Page 57 45. Adjust absorbers as needed. Insert stuffers into spaces around entire perimeter, but do not insert into PCA area. 46. From inside the Model 5411, replace 2-ft x 2-ft white foam caps onto absorber tips. Be careful not to damage the tips.

  • Page 58: Rear Wall Assembly

    Rear Wall Assembly SSEMBLY RAWINGS  Figure 8 on page 78  Figure 9 on page 79 ARTS EQUIRED UMBERS  Shielding strip 890259  Rear frame weldment 106622  Spacer plate 106602-1, 106602-2  Rear upper plate 106623-1, 106623-2 ...
  • Page 59 52. Assemble the horizontal joint strip: Attach channel rear wall outer to horizontal inner rear wall joint strip between the upper and lower panels. The rear wall assembly is heavy and bulky. When installing, use extreme caution to avoid damage to the shielding strip or absorber.

  • Page 60: Pca Installation

    PCA Installation SSEMBLY RAWINGS  Figure 5 on page 75  Figure 9 on page 79 ARTS EQUIRED UMBERS  Rear access panel 106669  PCA A 105970  PCA B (2) 105971  PCA C 105972  Shielding strip 890259 ...
  • Page 61 56. Check the shielding strip located between the upper and lower transitions at the rear of the septum to make sure the shielding strip is not damaged or obstructed. If required, replace shielding strip. GTEM! Assembly Instructions...
  • Page 62 Do not completely remove the screws, or the contact angles can fall behind the wall, requiring removal of the rear wall to retrieve. 57. You can raise or lower the contact angles by slightly loosening the screws directly below the access panel opening. Using a screwdriver, loosen the four contact angle screws and lower them.
  • Page 63 59. Install PCAs: This requires one person inside the Model 5411 to align the PCA between the upper and lower transitions at the rear of the septum, and one person outside to keep the PCA and the contact angle aligned. Insert one PCA, component side up, with either end through the rear opening.
  • Page 64 See Correctly Install Shielding Strip on page 12 for illustrations of how to install shielding strip. 65. Attach shielding strip (890259) to inside surface of the rear access panel, making sure to face the fingers inward. 66. Re-attach the rear access panels to the rear wall using M4 x 8 Phillips pan-head screws.

  • Page 65: Feedthrough Assemblies

    Feedthrough Assemblies SSEMBLY RAWINGS  Figure 1 on page 71 ARTS EQUIRED UMBERS  Wavelength feedthrough 102049  Type N bulkhead adaptor 514016 67. Remove one of the two nuts from the fiber optic wavelength feedthrough assembly. 68. Fit the threaded body into the Model 5411 wall, making sure approximately 1/8 inch of the body is inside the Model 5411, and the remainder of the body is outside.

  • Page 66: Label Placement

    Label Placement SSEMBLY RAWINGS  Figure 14 on page 84 ARTS EQUIRED UMBERS  Label Kit 103316 72. Before affixing labels, clean all surfaces and make sure they are free from debris. 73. Align and center labels, and press firmly to ensure proper adhesion. Blower Assembly SSEMBLY RAWINGS...

  • Page 67: Optional Assemblies

    76. The blower trim weldment and the blower assembly are mounted together on the outside of the Model 5411. With one crewmember inside the Model 5411, fasten the blower assembly to the Model 5411 with M4 x 12 TAPTITE screws. 77.
  • Page 68 80. See the Model 5400 Series Gigahertz Transverse Electromagnetic (GTEM!™) Cell Operation Manual for VSWR testing specifications. 81. Raising the septum will lower the TDR value of the Model 5411, and lowering the septum will increase the TDR. GTEM! Assembly Instructions...

  • Page 69: Gtem! Optional Components Installation

    6.0 GTEM! Optional Components Installation Before assembling or installing any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Prior to shipment, pre-cut sections in the wall and/or roof assemblies of your Model 5411 Gigahertz Transverse Electromagnetic (GTEM!™) Cell were made to accommodate the optional assemblies ordered.
  • Page 70 This page intentionally left blank. GTEM! Optional Components Installation...

  • Page 71: Appendix A: Gtem! Assembly Drawings

    Appendix A: GTEM! Assembly Drawings 1 – R IGURE IGHT GTEM! Assembly Drawings...
  • Page 72 2 – O IGURE UTSIDE GTEM! Assembly Drawings...
  • Page 73 3 – B IGURE OTTOM GTEM! Assembly Drawings...
  • Page 74 4 – B IGURE OTTOM ATERAL GTEM! Assembly Drawings...
  • Page 75 5 – S IGURE EPTUM GTEM! Assembly Drawings...
  • Page 76 6 – T IGURE GTEM! Assembly Drawings...
  • Page 77 7 – T IGURE RAME GTEM! Assembly Drawings...
  • Page 78 8 – R IGURE NSIDE GTEM! Assembly Drawings...
  • Page 79 9 – R IGURE UTSIDE GTEM! Assembly Drawings...
  • Page 80 10 – A IGURE BSORBER GTEM! Assembly Drawings...
  • Page 81 11 – F IGURE LOCKS GTEM! Assembly Drawings...
  • Page 82 12 – F IGURE ILTER GTEM! Assembly Drawings...
  • Page 83 13 – D IGURE GTEM! Assembly Drawings...
  • Page 84 14 – L IGURE ABEL LACEMENT GTEM! Assembly Drawings...

Table of Contents
