NAV SD 501 and NAV SD 101 • Setup Guide (Continued)
Step 3 — Front Panel Configuration Port Connection
VIDEO
CONFIG
HDCP
B B B A A A
CONFIG

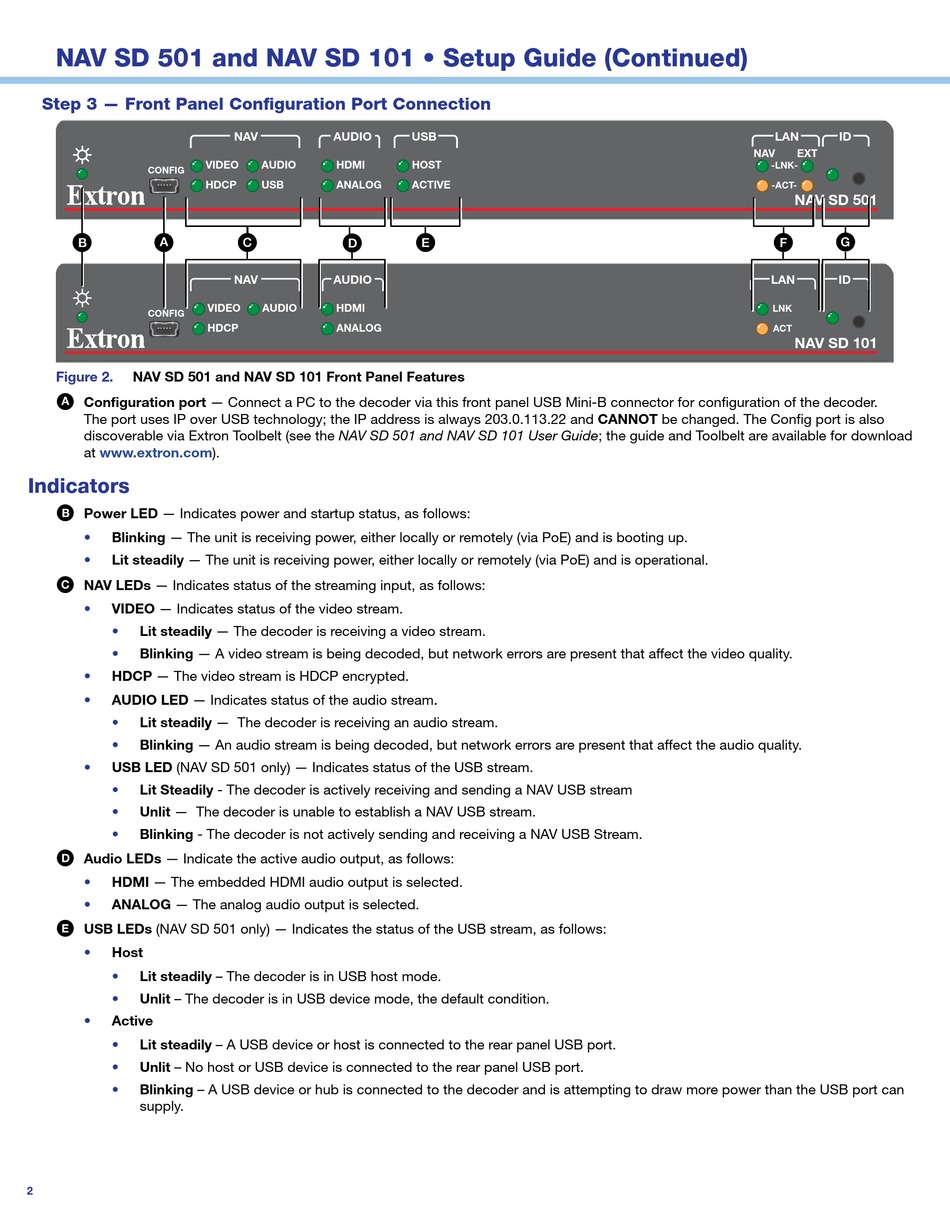

Figure 2. NAV SD 501 and NAV SD 101 Front Panel Features
A Configuration port — Connect a PC to the decoder via this front panel USB Mini-B connector for configuration of the decoder.
The port uses IP over USB technology; the IP address is always 203.0.113.22 and CANNOT be changed. The Config port is also
discoverable via Extron Toolbelt (see the NAV SD 501 and NAV SD 101 User Guide; the guide and Toolbelt are available for download
at www.extron.com).
Indicators
B
Power LED — Indicates power and startup status, as follows:
Blinking — The unit is receiving power, either locally or remotely (via PoE) and is booting up.
•
• Lit steadily — The unit is receiving power, either locally or remotely (via PoE) and is operational.
C NAV LEDs — Indicates status of the streaming input, as follows:
• VIDEO — Indicates status of the video stream.
Lit steadily — The decoder is receiving a video stream.
•
• Blinking — A video stream is being decoded, but network errors are present that affect the video quality.
• HDCP — The video stream is HDCP encrypted.
AUDIO LED — Indicates status of the audio stream
•
• Lit steadily — The decoder is receiving an audio stream.
• Blinking — An audio stream is being decoded, but network errors are present that affect the audio quality.
USB LED (NAV SD 501 only) — Indicates status of the USB stream.
•
• Lit Steadily - The decoder is actively receiving and sending a NAV USB stream
• Unlit — The decoder is unable to establish a NAV USB stream.
Blinking - The decoder is not actively sending and receiving a NAV USB Stream.
•
D Audio LEDs — Indicate the active audio output, as follows:
HDMI — The embedded HDMI audio output is selected.
•
• ANALOG — The analog audio output is selected.
E USB LEDs (NAV SD 501 only) — Indicates the status of the USB stream, as follows:
• Host
• Lit steadily – The decoder is in USB host mode.
• Unlit – The decoder is in USB device mode, the default condition.
Active
•
• Lit steadily – A USB device or host is connected to the rear panel USB port.
Unlit – No host or USB device is connected to the rear panel USB port.
•
• Blinking – A USB device or hub is connected to the decoder and is attempting to draw more power than the USB port can
supply.
2
NAV AUDIO
AUDIO HDMI
USB ANALOG
C C C D D D
NAV AUDIO
VIDEO AUDIO HDMI
HDCP ANALOG
USB
HOST
ACTIVE
E E E
.
LAN ID
NAV EXT
-LNK-
-ACT-
NAV SD 501
F F F G G G
LAN ID
LNK
ACT
NAV SD 101
