Arris SPACE CONNECT VAP4641 Quick Start Manual

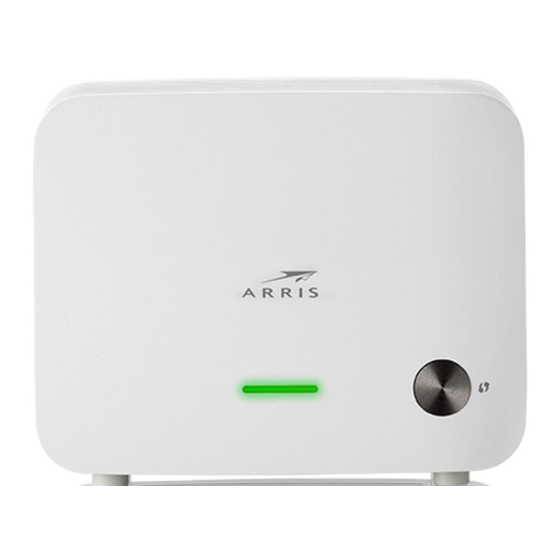

PartS OF the MeSh POInt
ON/
OFF
Switch
I
O
I
O
RE SET
AC
AC
AC
Status WPS Reset Power Ethernet
LED Button Socket Port
Power Plug
OPen SOurce SOFtWare and LIcenSeS
For instructions on how to obtain a copy of any source code being made publicly available by ARRIS related to software used in this ARRIS product
you may send your request in writing to: ARRIS, Software Pedigree Operations, 2450 Walsh Avenue, Santa Clara, CA 95051, USA. The ARRIS website
opensource.arris.com also contains information regarding use of open source. ARRIS has created opensource.arrisi.com to serve as a portal for
interaction with the software community-at-large.
EnVIROnmEnT:
• The Mesh Point needs air flow to keep cool. Do not block or cover the ventilation holes of the Mesh Point. Leave a gap of at least 10cm above and
around the mesh Point to allow for adequate ventilation.
• Do not operate your Mesh Point in an unventilated cabinet or on top of another unit that emits heat, such as a TV or media player.
• Do not store the Mesh Point in hot, damp, dusty, or unusually cold locations.
• The Mesh Point is intended for indoor use and installation only.
HanDLing:
• Do not put anything on or over your Mesh Point which might drip or spill on it.
• never place an open flame, such as from a lit candle, near the Mesh Point's ventilation holes.
STorage:
• Store your Mesh Point in a cool, dry place. Before installation and use, let the Mesh Point reach room temperature.
hOW tO read yOur MeSh POInt LedS
STATE
Starting up
Power
up; not connected to network
Fast network speed
Wired Limited network speed
Slow network speed
WPS process ongoing
LAN
LAN
LAN
WPS pairing unsuccessful
WPS
WPS pairing successful
mesh Point at good position
Wireless mesh Point far from router
mesh Point too far from router
cautIOn
WI-FI Mesh Point
LeD CoLour
VAP4641
fast blinking green
slow blinking green
Quick start guide
solid green
solid yellow
solid red
blinking yellow
fast blinking red; 10
seconds
fast blinking green; 10
seconds
solid green
solid yellow
solid red
610349-002_f 8/2020
www.spacetv.co.za
Helpline: 0861 40 41 42
