Arris RUCKUS Unleashed T310s Quick Setup Manual

Unleashed T310s Access
Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on
how to field-install the Ruckus Unleashed T310s access point
(AP). For detailed information on planning the installation,
performing a site survey, and operating the T310s, refer to the
Ruckus Wireless Outdoor Access Point User Guide , available
at https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with
local and national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm
(3"-5") drip loop in any cable that is attached to the AP or
the building. This will prevent water from running along the
cable and entering the AP or the building where the cable
terminates.
CAUTION! Be sure that grounding is available and that it
meets local and national electrical codes. For additional
lightning protection, use lightning rods and lightning
arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING! Ruckus Wireless strongly recommends that you
wear eye protection before mounting the T310s.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
• このガイドの日本語版は
https://
でご覧ください。
support.ruckuswireless.com
©
Copyright 2018 ARRIS Enterprises LLC. All rights reserved.
Published March 2018, Part Number 800-71727-001 Rev A
• 이 가이드의 한국어 버전은 웹 사이트
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta
guía en https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• Release Notes and other user documentation are available
at http://support.ruckuswireless.com/documents.
• Software upgrades are available at
support.ruckuswireless.com/software.
• Open source information is available at
opensource.ruckuswireless.com.
• Software license and limited warranty information are
available at http://support.ruckuswireless.com/warranty.
Before deploying your Ruckus Wireless Access Point, verify
that all items listed in
package. If any item is damaged or missing, notify your
authorized Ruckus Wireless sales representative. Also,
make sure that you have the required hardware and tools.
Required Hardware and Tools
Prepare the following before starting this procedure:
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole --OR-- a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall
anchors, flat washers, and hex nuts for flat-surface mount
Package Contents
A complete T310s field installation package includes all of the
items listed below (see Figure below for illustrations):
• T310s Access Point (A)
• M25 data cable gland (B)
https://
• Ground wire with lug (C)
• Pole/Wall Mount Bracket Kit (D)
• Four steel pipe clamps
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
(https://
https://
http://
http://
Package Contents are included in the
• Regulatory Statement
• Ruckus Wireless AP Getting Started Guide
• DC Power Supply Installation Guide
• This Quick Setup Guide

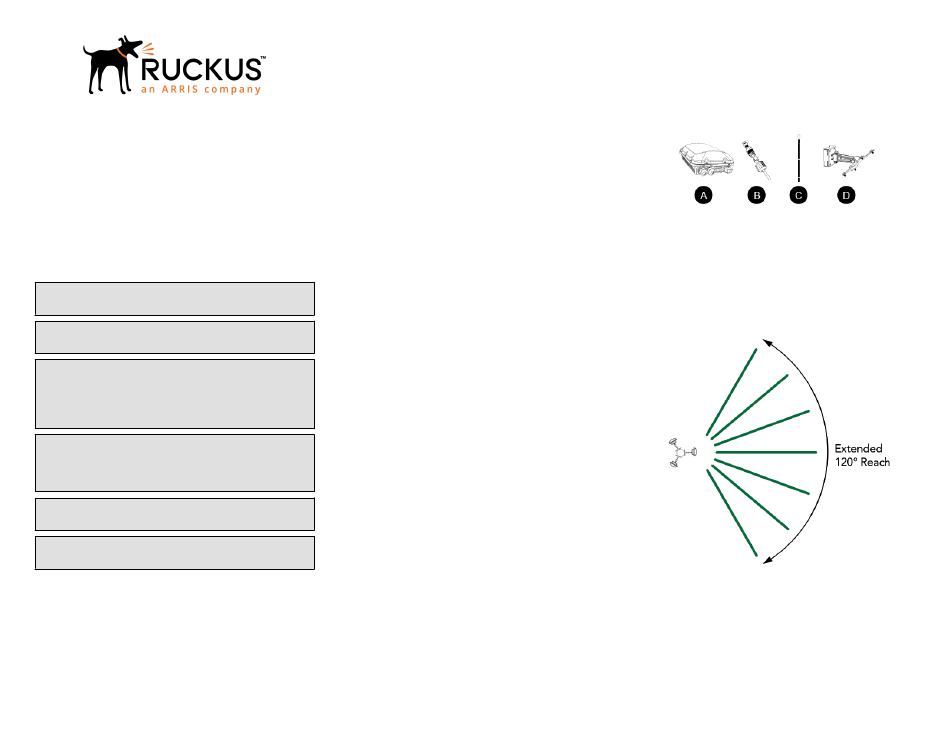

FIGURE 1 T310s Package Contents
T310s Sector Antenna Coverage
The T310s 120-Degree Sector AP is best deployed where
internal antenna directional beamwidths can provide extended
reach and throughput to a 120-degree coverage area. See the
illustrations below for the azimuth and elevation coverage
patterns.
FIGURE 2 Typical AP sector azimuth plane coverage, top view
Page 1 of 4
