Manual version: 6PW101-20170411
1 Card identifier
The card identifier LSUM1FWCEAB0 is at the upper right corner of the front panel.
2 Introduction
The LSUM1FWCEAB0 card is a 10-Gbps high performance firewall card that provides functions
including firewall, VPN, content filtering, and NAT. You can install it on an H3C S10500 or S7500E
switch to improve security capabilities of the switch without changing the network topology.
3 Specifications
The card has one console port, two USB ports, and two GE combo interfaces.

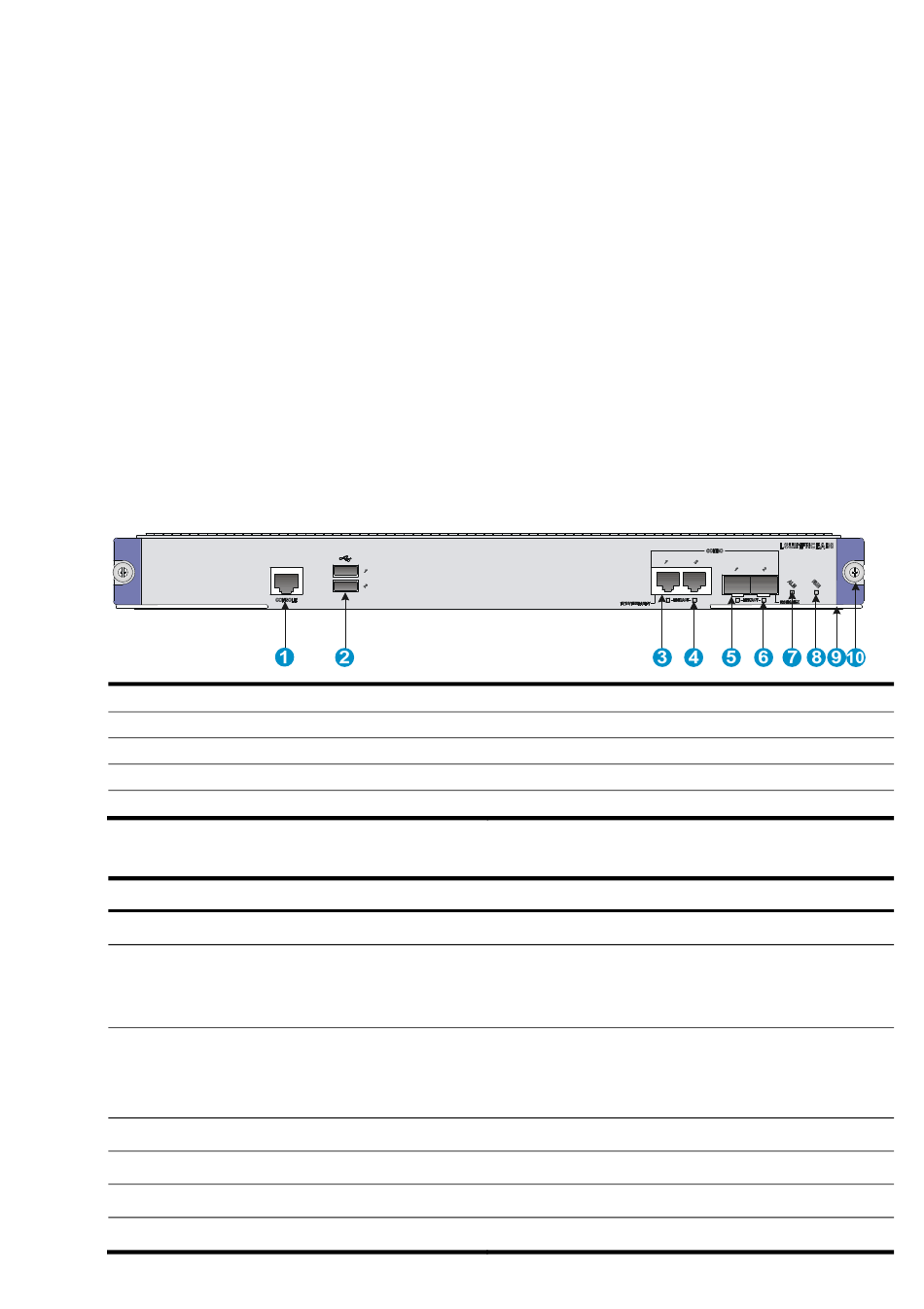

Figure 1 Front panel of the LSUM1FWCEAB0 firewall card
(1) Console port (CONSOLE)
(3) 10/100/1000BASE-T copper combo port
(5) 1000BASE-X fiber combo port
(7) Alarm LED (ALM)
(9) Ejector lever
Table 1 Card specifications
Item
Flash
Memory
CF card slot
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
H3C LSUM1FWCEAB0 firewall card
(2) USB ports (reserved)
(4) Copper combo port LED (LINK/ACT)
(6) Fiber combo port LED (LINK/ACT)
(8) System LED (RUN)
(10) Captive screw
Specification
8 MB Nor Flash
One memory slot
Standard configuration: 8 GB (one 8-GB DDR3
SDRAM)
One built-in CF card slot
Standard configuration: 4 GB
Maximum configuration: 4 GB
40.1 × 399.2 × 376.8 mm (1.58 × 15.71 × 14.83 in)
109.0 W to 157.1 W
3.9 kg (12.79 lb)
Supported
i
BOM: 3123A19Y
Advertisement
Table of Contents
Related Manuals for H3C LSUM1FWCEAB0
Summary of Contents for H3C LSUM1FWCEAB0
- Page 1 The LSUM1FWCEAB0 card is a 10-Gbps high performance firewall card that provides functions including firewall, VPN, content filtering, and NAT. You can install it on an H3C S10500 or S7500E switch to improve security capabilities of the switch without changing the network topology.
- Page 2 Operating: 10% RH to 95% RH, noncondensing Ambient humidity • Storage: 5% RH to 95% RH, noncondensing • H3C S10500 switches (The quantity requirement for this card varies by switch model.) Compatible gateway models and slots • S7500E switches (The quantity requirement for this card varies by switch model.)
- Page 3 Manual version: 6PW101-20170411 BOM: 3123A19Y Item Specification Transmission distance 100 m (328.08 ft) • 10 Mbps, half/full duplex • 100 Mbps, half/full duplex Port transmission rate • 1000 Mbps, full duplex Table 4 1000BASE-X fiber port specifications Item Specification Transceiver module Connector type Interface standard 802.3, 802.3u, and 802.3ab...
- Page 4 Do not touch the components on the PCB. • The slots on the H3C S10500 switches are either horizontally oriented or vertically oriented. When installing the card in a horizontal slot, make sure its PCB faces up. When installing the card in a vertical slot, make sure its PCB faces left.
- Page 5 6 Software upgrade The LSUM1FWCEAB0 card has an independent operating system and CLI. To upgrade the card software, you must access its CLI or Boot menu after logging in to the card through its console port or management Ethernet port. For information about upgrading the LSUM1FWCEAB0 firewall card, see the...
- Page 6 Manual version: 6PW101-20170411 BOM: 3123A19Y 7 Obtaining documentation To access the most up-to-date H3C product documentation on the H3C website at www.h3c.com.hk: Go to http://www.h3c.com.hk/Technical_Documents. Click Security Products, and then choose the desired product. Copyright © 2017 New H3C Technologies Co., Ltd.
