Installation and Operator's Manual
(Aurora Wind Interface Rev 4.0)

3.1 Assembly and Mounting Instructions

The unit shall be installed in a location so that it is not expected to be casually
contacted by person with the external heat sink.

3.1.1 Mounting Height

The WBI must be mounted at least 1m (3 feet) above floor level on a vertical
surface.

3.1.2 Minimum clearances

The WBI needs to be mounted with the following minimum clearances around
itself.
Top: 20 cm (40 inches)
Bottom 20 cm (40 inches)
Right Side: 20 cm (40 inches)
Left Side (Heat Sink): 20 cm (40 inches)

3.2 Equipment Ground Connection

The equipment ground connection to wind interface box is shown below.

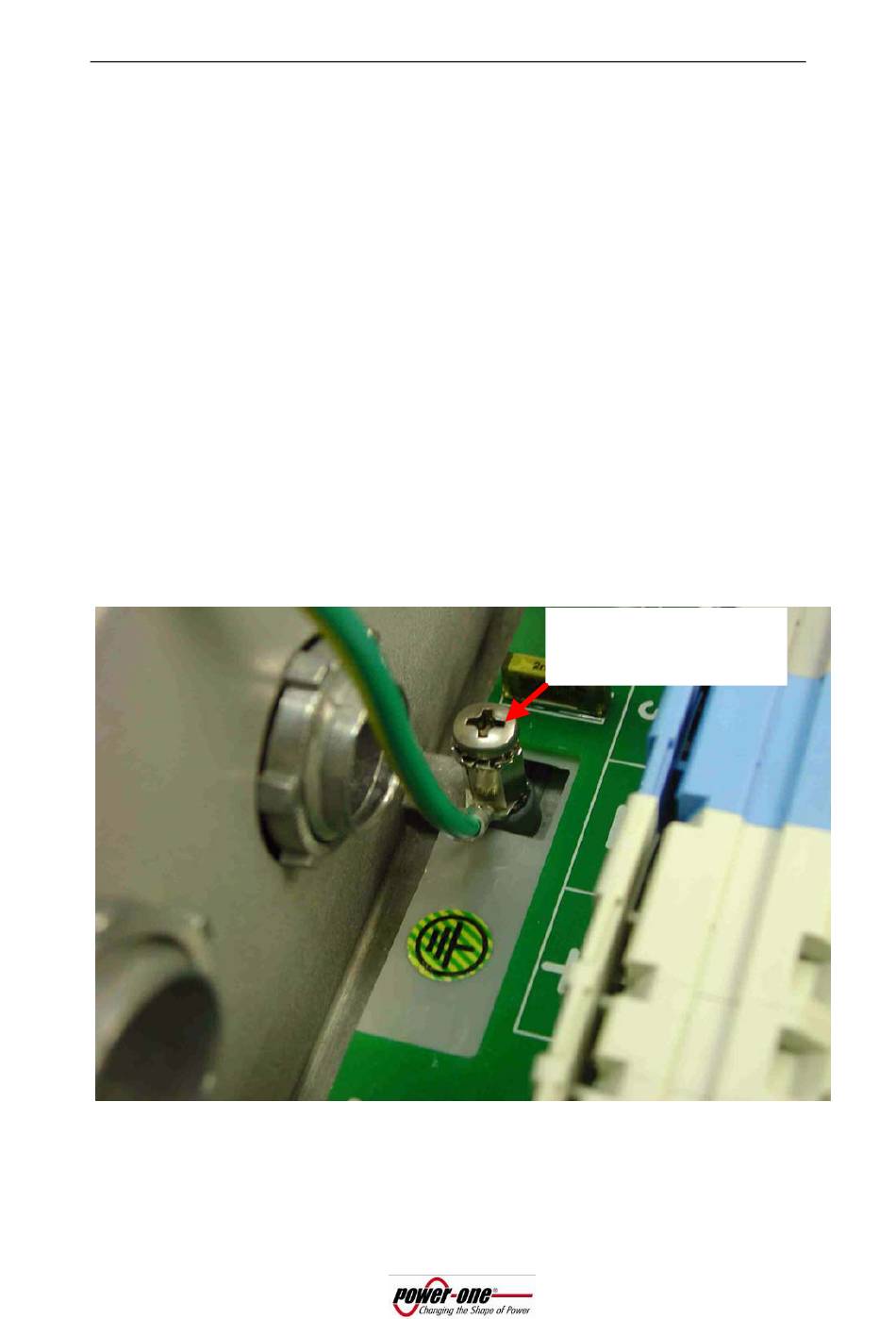

Figure 5: detail of PE (protective earth) point for grounding
Page 14 of 20
Ground
Connection
