 APPENDIX A

  
  
 
    
 
  
     
 
     
     
     
 
  
   

     
 
       

 
   
     
  
   
     
  
 
   
     
 
   
 
 
 
  

   

 
 
 
   
 
 
   
   
 
 
  
 


 
   
 
     
 
 
     
 
 
   
      
 

 
 

   
        
 
 
 
       
 
   
 
             
   
 
    
 

         
 
 
 
 
 


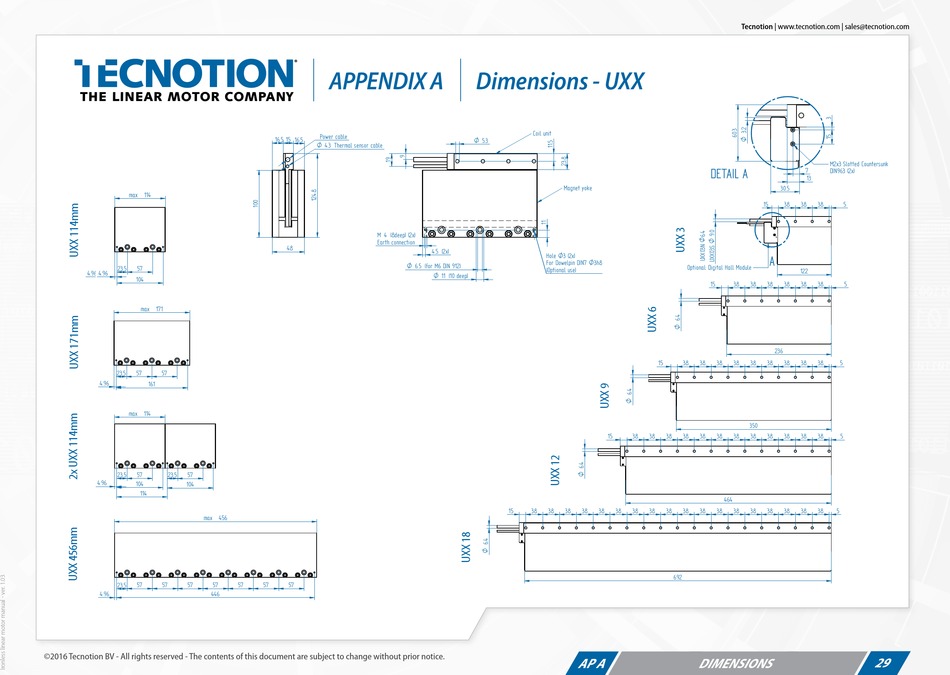

Dimensions - UXX

     
 
  
 
   
 
 

 
   
     
 
 
       
   
   
     

 
  
     
 

  
     
     

     
  
 
  
     
 
   
     
     
          
     
     
 

           
 
   
    
 
                 
      
          
 
 
 
                    

   
          
     
                    
   
           

 
 
   
 


 

 
 
 
   
 
 



 
 
     

    
 
 
     
 

          
  

 
  
     

         
 
 
     
 
     
 

     
 

 
             

  
 
 
      
   
               
 
     
 
         
         

     

 
      
      
                
 
         

               
           
  
      
         
                
 
         
                     
                   

 
      
         
                
 
 
                     

 
AP A DIMENSIONS
