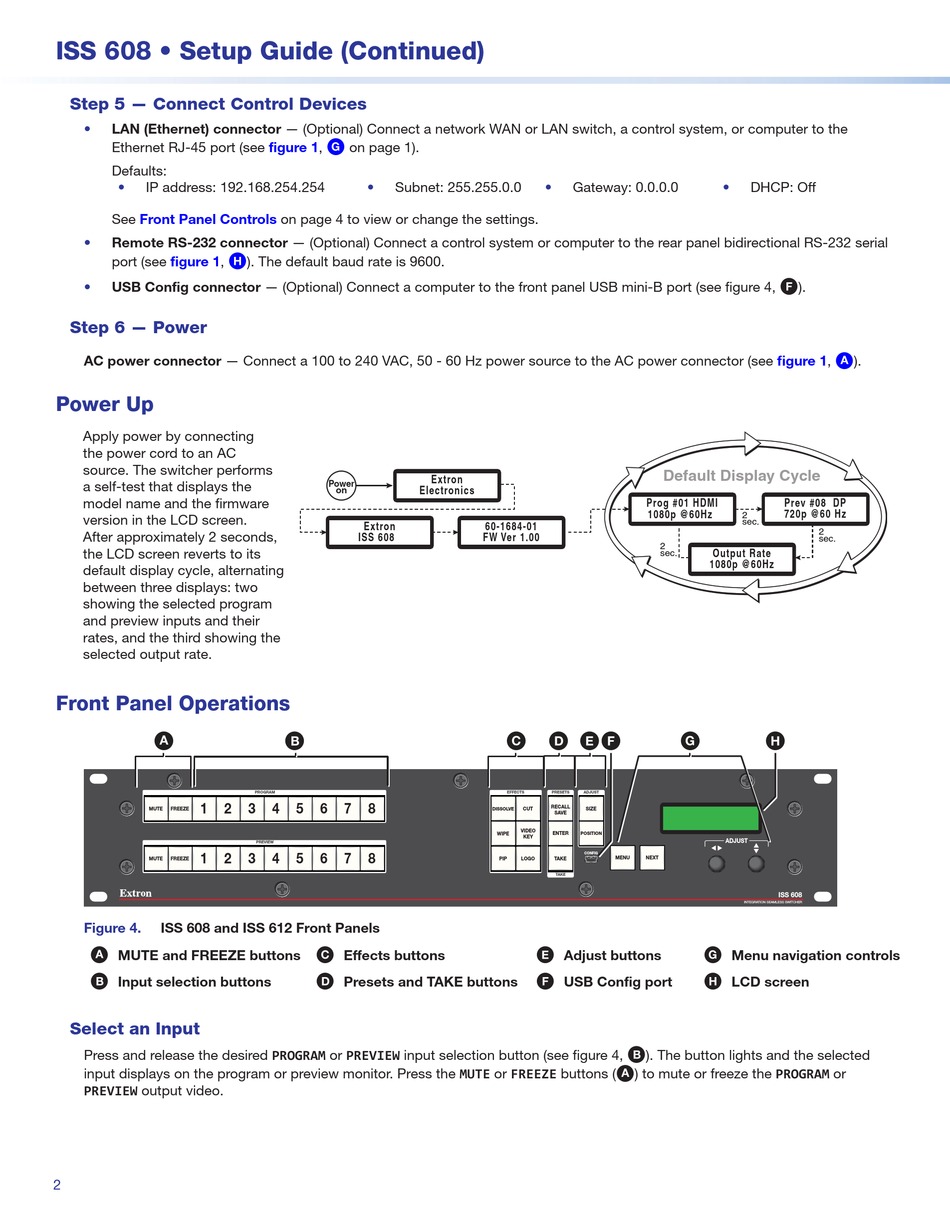

ISS 608 • Setup Guide (Continued)
Step 5 — Connect Control Devices
• LAN (Ethernet) connector — (Optional) Connect a network WAN or LAN switch, a control system, or computer to the
Ethernet RJ-45 port (see figure 1,
Defaults:
• IP address: 192.168.254.254
See Front Panel Controls
• Remote RS-232 connector — (Optional) Connect a control system or computer to the rear panel bidirectional RS-232 serial
port (see figure 1, H
• USB Config connector — (Optional) Connect a computer to the front panel USB mini-B port (see figure 4,
Step 6 — Power
AC power connector — Connect a 100 to 240 VAC, 50 - 60 Hz power source to the AC power connector (see figure 1,
Power Up
Apply power by connecting
the power cord to an AC
source. The switcher performs
a self-test that displays the
model name and the firmware
version in the LCD screen.
After approximately 2 seconds,
the LCD screen reverts to its
default display cycle, alternating
between three displays: two
showing the selected program
and preview inputs and their
rates, and the third showing the
selected output rate.

Front Panel Operations

A A
1 2
MUTE FREEZE
1 2
MUTE FREEZE
Figure 4. ISS 608 and ISS 612 Front Panels
A
MUTE and FREEZE buttons
B Input selection buttons
Select an Input
Press and release the desired PROGRAM or PREVIEW input selection button (see figure 4,
input displays on the program or preview monitor. Press the MUTE or FREEZE buttons (
PREVIEW output video.
2
G
on page 1).
• Subnet: 255.255.0.0
on page 4 to view or change the settings.
). The default baud rate is 9600.
Power
Electronics
on
Extron
ISS 608
B B
PROGRAM
3 4 5 6 7 8
PREVIEW
3 4 5 6 7 8
C
Effects buttons
D Presets and TAKE buttons
• Gateway: 0.0.0.0
Extron
60-1684-01
FW Ver 1.00
C C D D E E F F
EFFECTS PRESETS ADJUST
RECALL
CUT SIZE
DISSOLVE
SAVE
VIDEO
WIPE ENTER POSITION
KEY
CONFIG
PIP LOGO TAKE
TAKE
E
Adjust buttons
F USB Config port
• DHCP: Off
F
Default Display Cycle
Prog #01 HDMI Prev #08 DP
1080p @60Hz 720p @60 Hz
2
sec.
2
Output Rate
sec.
1080p @60Hz
G G H H
ADJUST
MENU NEXT
ISS 608
INTEGRATION SEAMLESS SWITCHER
G
Menu navigation controls
H LCD screen
B
). The button lights and the selected
A ) to mute or freeze the PROGRAM or
).
A ).
2
sec.
