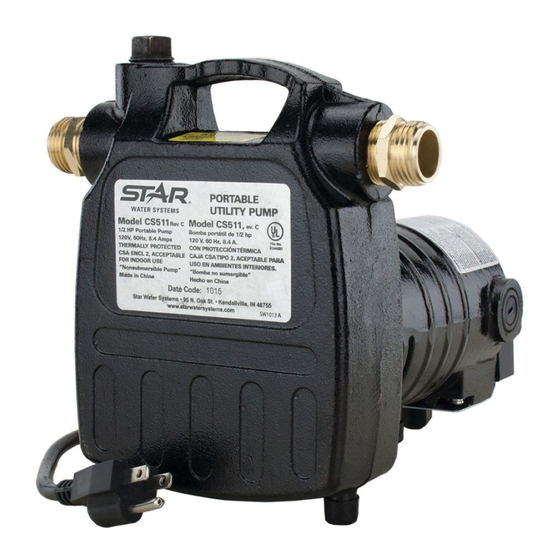

- Page 1 UTILITY TRANSFER PUMP MODEL #CS511 Español p. 10 ATTACH YOUR RECEIPT HERE Purchase Date Serial Number Questions, problems, missing parts? Before returning to your retailer, call our customer service department at , 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Pump Garden Hose Adapters Hose Strainer Motor Brushes SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard UL778. - Page 3 WARNING • ELECTRICAL SHOCK ALERT. Before installing this product, have the electrical circuit checked by an electrician to ensure proper grounding. All electrical installations must conform to the National Electric Code and all local codes. • ELECTRICAL SHOCK ALERT. Connect this product to a properly-grounded 115 volt circuit equipped with a Ground Fault Circuit Interrupter (GFCI) device.
-
Page 4: General Pump Information
CAUTION • PERSONAL INJURY OR PRODUCT DAMAGE MAY RESULT. This pump operates on 115 volts. Make certain that the power source conforms to the requirements of your equipment. • PRODUCT DAMAGE MAY RESULT. The maximum temperature of the pumped liquid must not exceed 120°F (40°C). The minimum allowable temperature is 40°F (4°C). -
Page 5: Installation Instructions
LOCATION 1. Pump (A) should be located within 15 ft. of the water source, and strainer (C) should be used at the end of the inlet line. NOTE: Make sure the inlet hose is NOT coiled or kinked above or below water level. The inlet line may be galvanized pipe, plastic pipe, or reinforced hose. - Page 6 2. Attach discharge hose (not provided) to pump (A) outlet. A standard 3/4 in. garden hose may be used as a discharge line. Keep the total length as short as possible for best performance. PRIMING AND STARTUP 1. Remove priming plug from the top of pump (A). Priming Plug 2.
-
Page 7: Care And Maintenance
3. For normal water transfer applications, plug in power cord to grounded outlet. Pump (A) will prime in a few minutes, depending on suction line length. Unplug pump (A) to turn it off. 4. If the pump does not pump water after five minutes, turn off the pump and repeat steps 1 through 3. -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Pump will not 1. Air leak in suction line. 1. Repair or replace suction line. Make begin pumping or sure fittings are air tight and use retain prime after thread sealant tape if necessary. operating, or stops 2. -
Page 9: Warranty
WARRANTY This product is warranted for one year from the date of purchase or two years from the date of manufacture, whichever occurs first. Subject to the conditions hereinafter set forth, the manufacturer will repair or replace to the original consumer, any portion of the product which proves defective due to defective materials or workmanship.
