Star UTHALC Manual

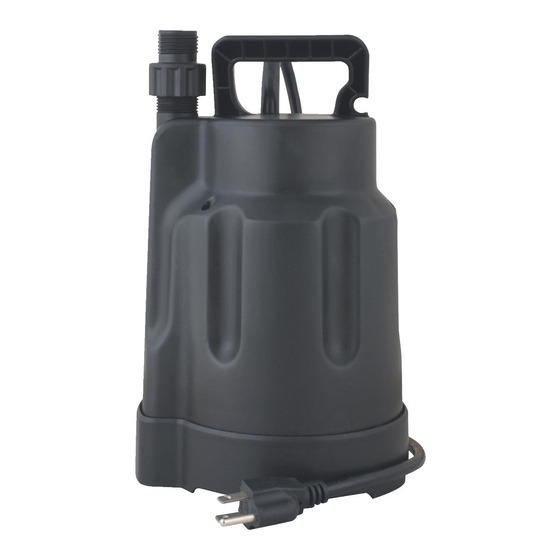

Submersible utility pump
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SUBMERSIBLE UTILITY
PUMP
MODEL #UTHALC, 2STHALC
Español p. 9
ATTACH YOUR RECEIPT HERE
Purchase Date
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTHALC and is the answer not in the manual?

Questions and answers

Related Manuals for Star UTHALC

Summary of Contents for Star UTHALC

  • Page 1 SUBMERSIBLE UTILITY PUMP MODEL #UTHALC, 2STHALC Español p. 9 ATTACH YOUR RECEIPT HERE Purchase Date Serial Number Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
  • Page 2 AMPS NUMBER 0 FT. 5 FT. 10 FT. 15 FT. UTHALC 2STHALC SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. • NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard UL778.
  • Page 3 WARNING • ELECTRICAL SHOCK ALERT. Before installing this product, have the electrical circuit checked by an electrician to ensure proper grounding. All electrical installations must conform to the National Electric Code and all local codes. • ELECTRICAL SHOCK ALERT. Connect this product to a properly-grounded 115 volt circuit equipped with a Ground Fault Circuit Interrupter (GFCI) device.

  • Page 4: Installation Instructions

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 5 minutes No Tools Required for Assembly. INSTALLATION INSTRUCTIONS 1.
  • Page 5 3. Plug pump into a properly grounded 115 V AC power outlet. GFCI Outlet 4. Pump has an air valve to prevent air-locking. Air-locking will keep pump from pumping water. A small spray of water from the air valve is normal and does not represent a defective pump.

  • Page 6: Care And Maintenance

    2. DO NOT RUN DRY. Running pump when it is not submerged in water will damage the seal and impeller, and void the warranty. Do not run dry CARE AND MAINTENANCE The motor housing of pump is completely sealed and requires no service. Disassembly of the motor housing or alteration of the power cord voids all warranty.

  • Page 7: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Pump runs, 1. Hose kinked. 1. Straighten hose. but no water is 2. Defective pump. 2. Replace pump. discharged. 3. Discharge height too great. 3. Reduce discharge height. 4. Clogged inlet. 4. Clean inlet. Motor runs too hot.

  • Page 8: Warranty

    WARRANTY This product is warranted for one year from the date of purchase or two years from the date of manufacture, whichever occurs first. Subject to the conditions hereinafter set forth, the manufacturer will repair or replace to the original consumer, any portion of the product which proves defective due to defective materials or workmanship.

This manual is also suitable for:

2sthalc
