Star HSPJ100 User Manual

Star HSPJ100 User Manual

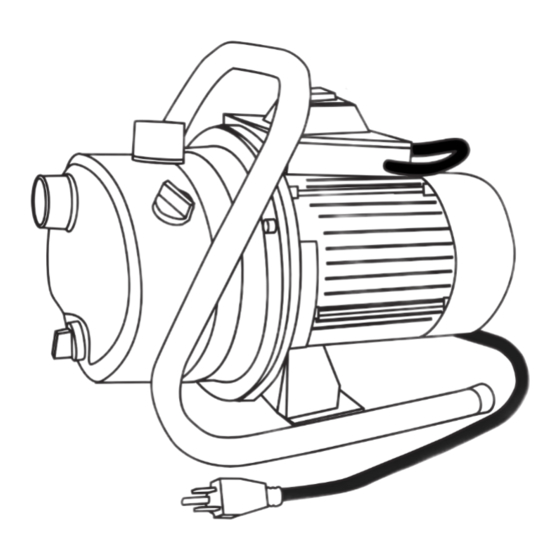

Portable lawn sprinkler and utility pump

Advertisement

Quick Links

Questions, problems, missing
parts? Before returning to your
STOP
retailer, call our customer service
department at 1-800-742-5044,
7:30 a.m. - 5 p.m., EST, Monday
- Friday.

Description

This pump is designed to sprinkle lawns and small
gardens from lakes, ponds, or rivers, empty or fill
stock tanks, remove standing water from flooded
areas, transfer water or boost water pressure.
Flammable liquids such as gasoline, chemicals or
corrosive liquids should never be used with this pump.

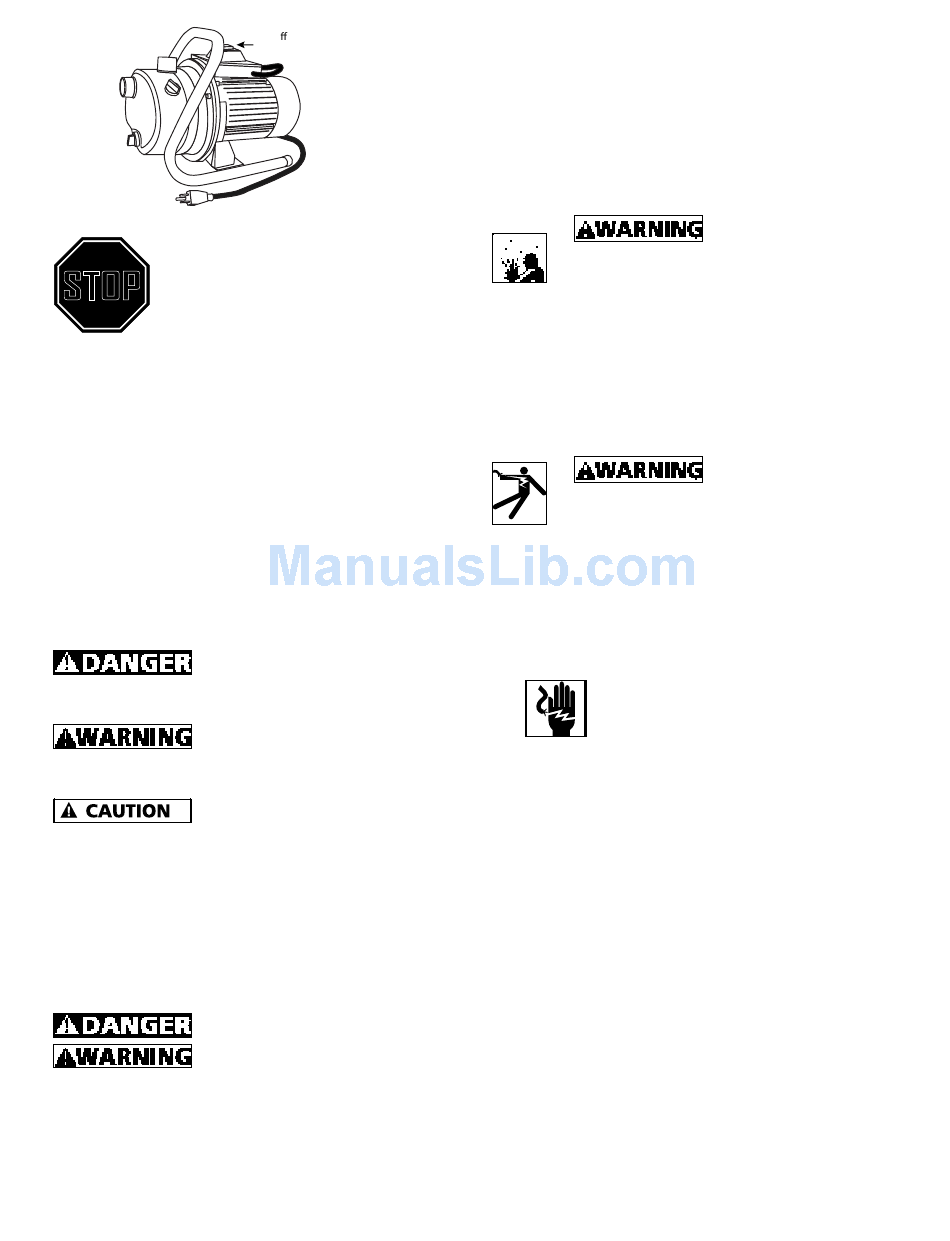

Safety Guidelines

This manual contains information that is very
important to know and understand. This information
is provided for SAFETY and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this information,
observe the following symbols.
Danger indicates an imminently
hazardous situation which, if not avoided, will result
in death or serious injury.
Warning indicates a potentially
hazardous situation which, if not avoided, could result
in death or serious injury.
Caution indicates a potentially
hazardous situation, which, if not avoided, may result
in minor or moderate injury.
NOTE: Indicates important information, that if not
followed, may cause damage to equipment.

General Safety Information

1.
Read these rules and instructions carefully. Failure
to follow these instructions could cause serious
bodily injury and/or property damage.
This pump is non-submersible.
This product contains chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
On/o
switch
SPRINKLER AND UTILITY
IL1856
© 2015 Star Water Systems. All rights reserved.
PORTABLE LAWN
PUMP
Do not pump flammable or explosive fluids
such as gasoline, fuel oil, kerosene, etc. Do
not use in a flammable and/or explosive
atmosphere. Personal injury and/or property damage
could result.
NOTE: This pump is not designed to handle salt water,
brine, laundry discharge or any other application
which may contain caustic chemicals and/or foreign
materials. Pump damage could occur if used in these
applications and will void warranty.
performed by a qualified electrician. The
pump must be installed in compliance with
all local and national codes.
2. Connect this product to a grounded circuit
equipped with a ground fault circuit interruptor
(GFCI) device.
3. Before installing this product, have the electrical
circuit checked by an electrician to ensure proper
grounding.
4.
BE CERTAIN the pump power source
is disconnected before installing or
servicing pump.
5. Be sure the water source and piping are clear of
sand, dirt and scale. Debris will clog pump and
void warranty.
6. Failure to protect pump and piping from freezing
could cause severe damage and will void the
warranty.
7.
Do not run pump dry.

Installation

PUMPING FROM LAKES, PONDS OR SMALL STREAMS
1.
Locate pump as close as possible to the water
source, keeping the vertical distance from the
water to pump as small as possible. Place pump
on level support. Protect against flooding and
excessive moisture.
2. Long lengths of pipe or hose and use of many
fittings will reduce pump flow. Use the smallest
number of fittings and shortest possible length of
pipe or hose.
4. Connect inlet pipe or hose to pump. The inlet
connection is designed for 1" NPT thread. Rigid
1
SW1015 1215
Supersedes
Pump only clear water.
All wiring must be
NEW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSPJ100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Star HSPJ100

  • Page 1 Use the smallest number of fittings and shortest possible length of pipe or hose. 4. Connect inlet pipe or hose to pump. The inlet connection is designed for 1” NPT thread. Rigid © 2015 Star Water Systems. All rights reserved.
  • Page 2 Remove priming port on pump and fill with water. IL1856 Reinstall priming port on pump (see Figure 2). For Figure 4 boosting water pressure: Do not remove priming port. Turn on water supply. Priming Port IL1858 Figure 2 © 2015 Star Water Systems. All rights reserved.
  • Page 3 2. Steel piping (if used) is corroded or 2. Replace with plastic pipe where possible, limed, causing excess friction otherwise with new steel pipe 3. Piping is too small in size 3. Use larger piping © 2015 Star Water Systems. All rights reserved.
  • Page 4: Replacement Parts List

    Discharge connection 1 in. NPT 30 PSI Suction connection 1 in. NPT 40 PSI Water depth rating Maximum of 25 ft. 50 ft. REPLACEMENT PARTS LIST MODEL HSPJ100 Description 024609 Impeller, Diffuser, Nozzle Kit © 2015 Star Water Systems. All rights reserved.

Table of Contents
