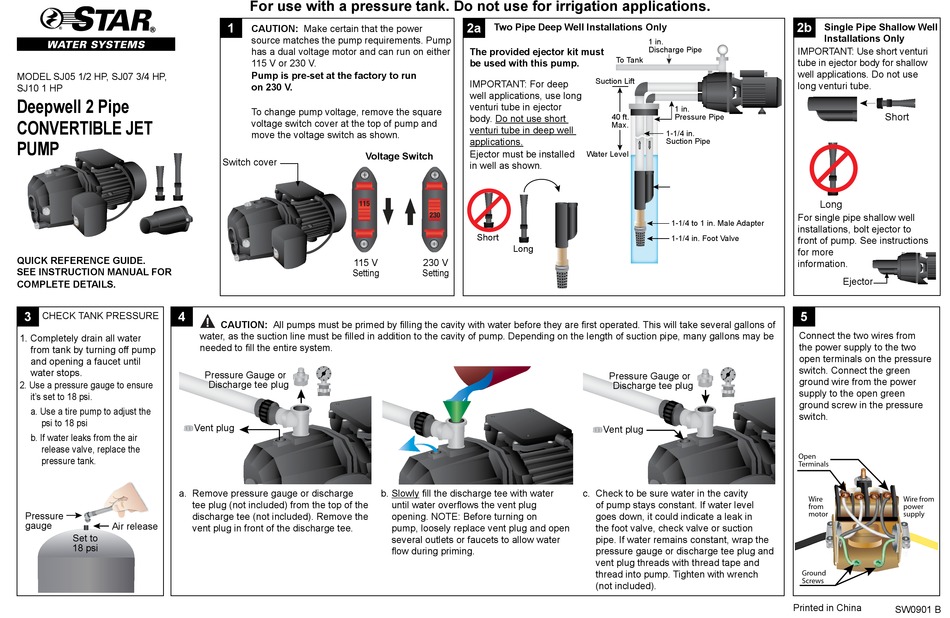

Star SJ05 1/2 HP Quick Reference Manual

MODEL SJ05 1/2 HP, SJ07 3/4 HP,
SJ10 1 HP

Deepwell 2 Pipe

CONVERTIBLE JET
PUMP
QUICK REFERENCE GUIDE.
SEE INSTRUCTION MANUAL FOR
COMPLETE DETAILS.
3 4

CHECK TANK PRESSURE

1. Completely drain all water
from tank by turning off pump
and opening a faucet until
water stops.
2. Use a pressure gauge to ensure
it's set to 18 psi.
a. Use a tire pump to adjust the
psi to 18 psi
Vent plug
b. If water leaks from the air
release valve, replace the
pressure tank.
a. Remove pressure gauge or discharge
tee plug (not included) from the top of the
Pressure discharge tee (not included). Remove the
gauge
Air release valve
vent plug in front of the discharge tee.
Set to
18 psi
For use with a pressure tank. Do not use for irrigation applications.
1
CAUTION: Make certain that the power
source matches the pump requirements. Pump
has a dual voltage motor and can run on either
115 V or 230 V.
Pump is pre-set at the factory to run
on 230 V.
To change pump voltage, remove the square
voltage switch cover at the top of pump and
move the voltage switch as shown.
Voltage Switch
Switch cover
IL1612a
115 V
Setting
CAUTION: All pumps must be primed by filling the cavity with water before they are first operated. This will take several gallons of
water, as the suction line must be filled in addition to the cavity of pump. Depending on the length of suction pipe, many gallons may be
needed to fill the entire system.
Pressure Gauge or
Discharge tee plug
b. Slowly fill the discharge tee with water
2a

Two Pipe Deep Well Installations Only

The provided ejector kit must
be used with this pump.
IMPORTANT: For deep
well applications, use long
venturi tube in ejector
body. Do not use short
venturi tube in deep well
applications.
Ejector must be installed
in well as shown.
Short
Long
230 V
Setting
until water overflows the vent plug
opening. NOTE: Before turning on
pump, loosely replace vent plug and open
several outlets or faucets to allow water
flow during priming.
1 in.
Discharge Pipe
To Tank
Suction Lift
1 in.
40 ft. Pressure Pipe
Max.
1-1/4 in.
Suction Pipe
Water Level
1-1/4 to 1 in. Male Adapter
1-1/4 in. Foot Valve
IL1542a
Pressure Gauge or
Discharge tee plug
Vent plug
c. Check to be sure water in the cavity
of pump stays constant. If water level
goes down, it could indicate a leak in
the foot valve, check valve or suction
pipe. If water remains constant, wrap the
pressure gauge or discharge tee plug and
vent plug threads with thread tape and
thread into pump. Tighten with wrench
(not included).
2b
Single Pipe Shallow Well
Installations Only
IMPORTANT: Use short venturi
tube in ejector body for shallow
well applications. Do not use
long venturi tube.
Short
Long
For single pipe shallow well
IL1634a
installations, bolt ejector to
front of pump. See instructions
for more
Suction
information.
Lift
Ejector
25 ft.
Max.
Water Level
5
1-1/4 in. x 1 in. Male Adapter
1-1/4 in. Foot Valve
Connect the two wires from
the power supply to the two
open terminals on the pressure
switch. Connect the green
ground wire from the power
supply to the open green
ground screw in the pressure
switch.
Open
Terminals
Wire Wire from
from power
motor supply
Ground
Screws
