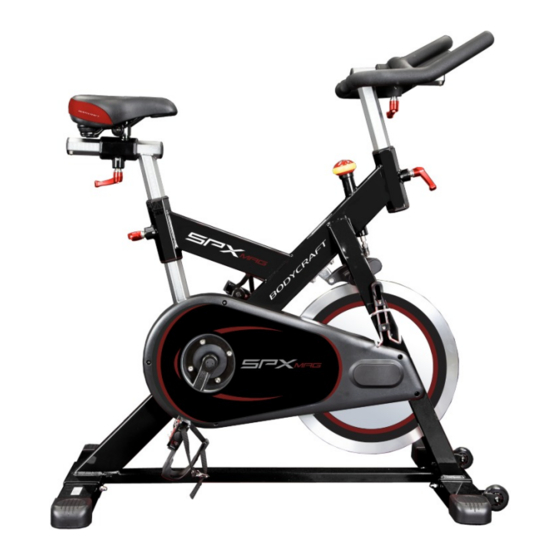

INDOOR TRAINING CYCLE
Record your serial number and
purchase date here:
S/N:
PURCH. DATE:
DEALER:
Open your Camera App and
point it at the QR Code for
additional information.
or go to
www.bodycraft.com/spx-mag-
qr.html
BODYCRAFT SPX-Mag
Register your product warranty at www.bodycraft.com/product-registration.html
Rev.081420
Advertisement
Table of Contents
Related Manuals for BodyCraft SPX-Mag
Summary of Contents for BodyCraft SPX-Mag

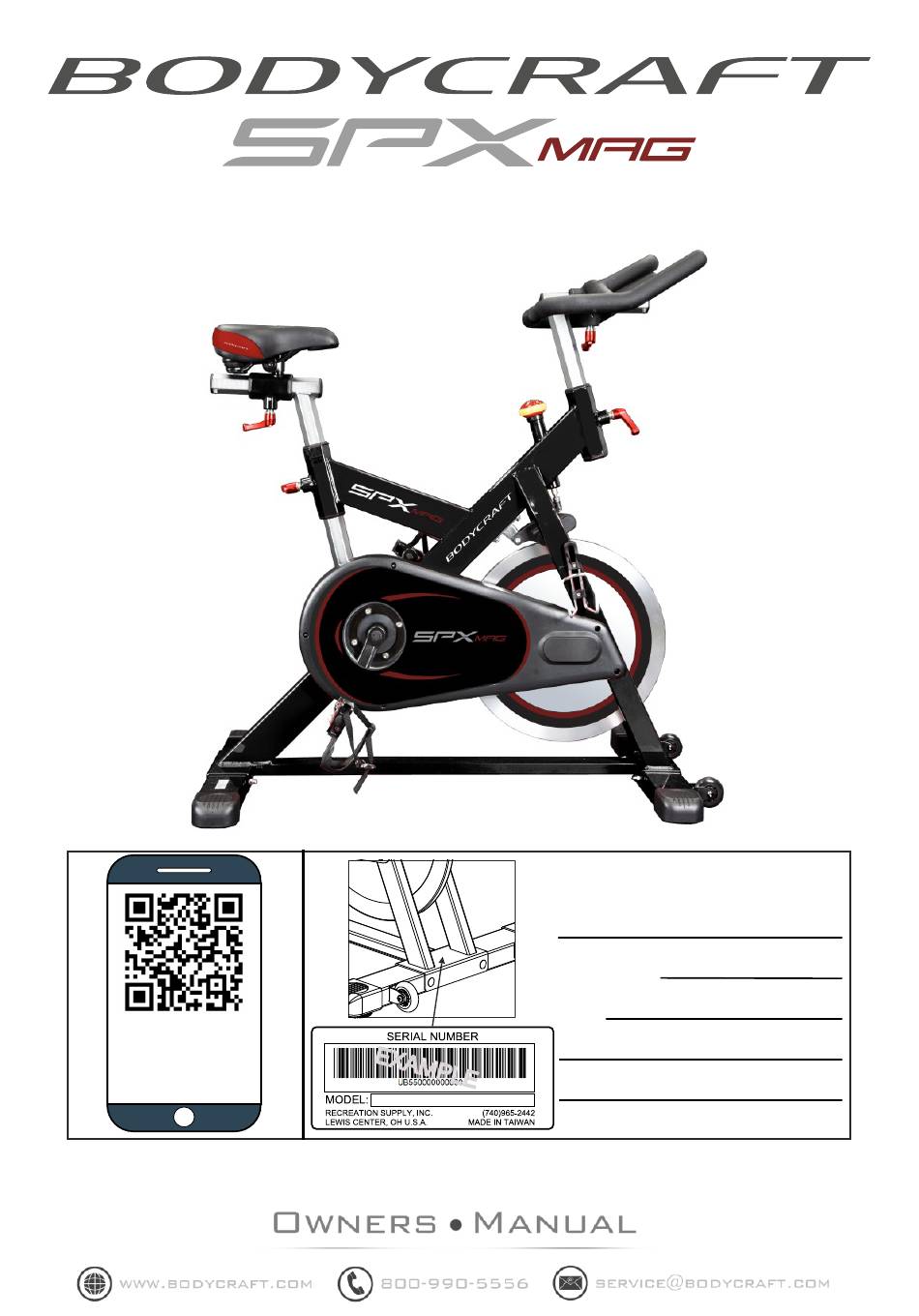

- Page 1 Record your serial number and purchase date here: S/N: PURCH. DATE: DEALER: Open your Camera App and point it at the QR Code for additional information. or go to www.bodycraft.com/spx-mag- qr.html BODYCRAFT SPX-Mag Register your product warranty at www.bodycraft.com/product-registration.html Rev.081420...
-
Page 2: Table Of Contents
Moving your Indoor Cycle Pedal Strap Routing How to set-up your Cycle for Riding Preventative Maintenance and Cleaning Items recommended for Cleaning/Preventive Maintenance: DAILY COMPONENTS INSPECTION: BI-WEEKLY INSPECTION: SPX-Mag Exploded View SPX-Mag Detailed Parts List - (UB55) PRODUCT W ARRANTY... -
Page 3: Congratulations And Thank You
Spending 15 to 30 minutes a day, three times a week is all you need to start seeing the benefits of a regular exercise program. We, at BODYCRAFT want you to enjoy the full benefits of your exercise program, so please take the time to read this manual thoroughly. -
Page 4: Spx-Mag Assembly Parts List
SPX-Mag Assembly Parts List Seat Saddle Handlebar Lock Lever Seat Saddle Post Main Frame Handlebar Post Left Pedal Right Pedal Fronts Stabilizer Rear Stabilizer Cages Recommended Tools for Assembly NOTE: We include a basic tool set with this cycle, but It is always better to use higher quality tools when available 1/2”... -
Page 5: Dimensions
Dimensions 43”L (120 cm) TOP VIEW Height 40”~47” Product Callouts Handlebar Emergency Stop / Resistance Seat Saddle Lock Levers Flywheel Lock Waterbottle Levers Holder x2 Transport Wheels x2 Belt Guard SPD Pedals w/Toecage x2 Levelers x4... -
Page 6: Assembly
Assembly Step 1. Front & Rear Stabilizer 1. Attach the REAR STABILIZER (2) to the MAINFRAME (1) using two CARRIAGE BOLTS (3) two WASHERS (4) and two DOME NUTS (5) as shown in FIG. 1. 2. Attach the FRONT STABILIZER (6) to the MAINFRAME (1) using two CARRIAGE BOLTS (3) two WASHERS (4) and two DOME NUTS (5) as shown in FIG. - Page 7 Assembly Step 3. Handlebar 1. Install HANDLEBAR POST (14) into the front tube of the MAIN FRAME (1) as shown in FIG. 4. Secure by Tightening the LOCK LEVER (18). 2. Remove the Pre-installed CAP SCREW (13) from the HANDLEBAR POST (14). then Slide the HANDLEBAR (11) onto the HANDLEBAR POST (14) as shown in FIG.
-
Page 8: Before Using Your Cycle
Before Using your Cycle Adjusting the Resistance The resistance level of the magnetic brake can be adjusted by rotating the ADJUSTMENT KNOB. Turn the knob clockwise to increase resistance and counter-clockwise to decrease resistance. How to adjust the Seat and Handlebar The SEAT SADDLE and HANDLEBAR are adjustable with both vertical and fore/aft adjustments. -
Page 9: How To Set-Up Your Cycle For Riding
How to set-up your Cycle for Riding NOTE: The bike shown is the SPR, but the setup instructions are the same. -
Page 10: Preventative Maintenance And Cleaning
Preventative Maintenance and Cleaning The life of the bike will be determined by how consistent maintenance is performed. Items recommended for Cleaning/Preventive Maintenance: ● Pedal Wrench ● Metric Allen Wrench Set ● Metric Socket Set ● Non-Abrasive Cleaner (or warm soapy water) ●... - Page 11 NOTES...
-
Page 12: Spx-Mag Exploded View
SPX-Mag Exploded View *The UB55 portion of the part number shown on UB-55 the parts list is omitted from this view to save space. -
Page 13: Spx-Mag Detailed Parts List - (Ub55)
SPX-Mag Detailed Parts List - (UB55) UB55-01 Main Frame UB55-44 Bolt M8*P1.25*20L UB55-02 Rear Stabilizer 40*80*2t*545L Black UB55-45 Plastic Sleeve 8mm*11mm*1.6t UB55-03 Carriage Bolt UB55-46 Nut M8*P1.25 Washer UB55-04 UB55-47 Screw M5*P0.8*8L Dome Nut UB55-05 UB55-48 Sleeve 8mm*18L*M5 Front Stabilizer 40*80*545L Black... -
Page 14: Product W Arranty
If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts. Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic evidence of the damaged part(s) prior to replacement.) Serial number is required.
