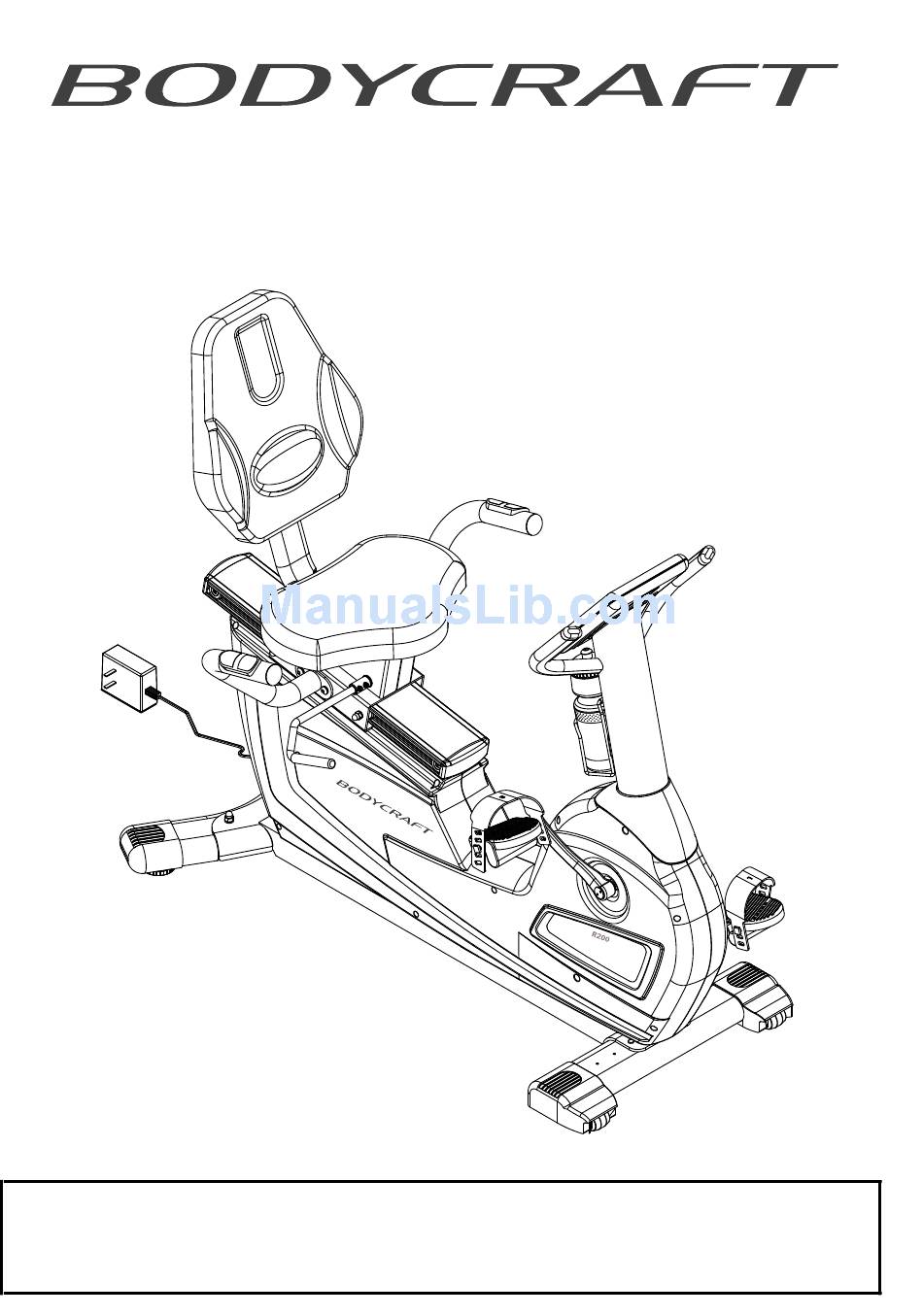

- Page 1 R200 Recumbent OWNERS MANUAL MA902 Recreation Supply Inc. Model No. R200 7699 Green Meadows Drive BODYCRAFT is a division of Recreation Supply Lewis Center, OH 43035 www.bodycraft.com info@bodycraft.com 800-990-5556...
- Page 2 For your safety and benefit, please read this entire manual. Please keep the manual in a convenient place for quick reference when needed. Bodycraft offers a complete array of high quality fitness equipment. Please refer to our web site at www.bodycraft.com to view more ways to enhance your lifestyle.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Safety…….…….……….…………….….….….….….……….….….…….………1 Parts Contents……….….….….….……….….….….….….……….…….….….…….……2 Assembly….……….….….……….….….….….……….……………….….….……………3 Adjustments………….………………….….……….….….……….….….….….….………6 Detailed Parts List.……………………….……….….….….….…………….……………..7 Exploded Drawing.…………….……….……….……….……….….…………….………..10 Computer Operation………………………….…………….…………….…………………12 Warranty…………………….………………………………………………………………..18... -
Page 4: Product Safety
12. The maximum weight capacity for this product is 350 lbs /160 kgs. 13. Clean pads and frame on a regular basis. We recommend warm,soapy water. Do not use harsh or abrasive chemicals. 14. If unsure about the proper use of the BODYCRAFT R200 call your local BODYCRAFT dealer... -
Page 5: Parts Contents
R200 PARTS CONTENTS Rear Stabilizer Front Stabilizer Main Bike Assembly Right Left Seat Pad Handlebar Handlebar Console Mast Console Bottle Water Computer Back Support Mast Holder Bottle Frame Console Cover Back Pad Left Right Power Supply Pedal Pedal... -
Page 6: Assembly
ASSEMBLY Step 1 Front & Rear Stabilizer 1. Use a Styrofoam block from the packing material to raise the front of the Bike Assembly (1) then attach the Front Stabilizer (2) using two 3/8" x 2-1/4" Hex Head Bolts (79), as shown in Fig. - Page 7 ASSEMBLY Step 3 Handlebars Pulse Handlebar Wire (42) to the Pulse Coiled Wire (41) on the Seat Frame (5). Store excess Spring Washers (99), and two M8 x 15L Dome Head Allen Bolts (76) as shown in Fig. C1. Insert the Seat Adjustment Handle (11) into the bracket welded to the Seat Frame (5). As M8 x 8L Set Screws (91) and then tighten the Set Screws (91) against the flat side.
- Page 8 ASSEMBLY Step 5 Console Mast & Computer Console Be Careful not to pinch any of the wires while assembling IMPORTANT NOTE! the Console Mast and Computer. Slide the Console Mast Cover (30) onto the Console Mast (6). See Fig. E1 and E2. Hold the Console Mast (6) close to the Bike Assembly and connect both wires;...
-
Page 9: Adjustments
ADJUSTMENTS The seat can adjust front-to-back to accommodate your leg length. Simply rotate the Seat Adjustment Handle (11) upward to loosen then rotate downward with force to lock the seat into place. The Pedal Straps can be adjusted to fit your shoes. The Back Support (18) can be adjusted for your comfort. -
Page 10: Detailed Parts List
DETAILED PARTS LIST DESCRIPTION QTY. MAIN BIKE ASSEMBLY FRONT STABILIZER REAR STABILIZER SLIDING SEAT TRACK SEAT FRAME CONSOLE MAST LEFT HANDLEBAR RIGHT HANDLEBAR BACK SUPPORT FRAME SEAT TRACK BACKING PLATE BACK PAD ADJUSTMENT KNOB SEAT ADJUSTMENT HANDLE 12 L LEFT CRANK ARM 12 R RIGHT CRANK ARM WRENCH... - Page 11 DETAILED PARTS LIST QTY. 33 L LEFT SHROUD 33 R RIGHT SHROUD BRAKE MOTOR ASSEMBLY 34-1 8 PIN C O N SO L E MAST HARNESS 8 PIN CONSOLE MAST HARNESS POWER RECEPTACAL HARNESS SPEED SENSOR PICKUP CABLE 4 PIN CONSOLE MAST HARNESS PULSE CONNECTHARNESS BRAKE ANTI-ROTATION BRACKET PULSE COILED WIRE...
- Page 12 DETAILED PARTS LIST DESCRIPTION QTY. 1/2" X 3-1/2" HEX HEAD BOLT 3/8" X 2-3/4" HEX HEAD BOLT M8 X 15L DOME HEAD ALLEN BOLT M8 X 20L HEX HEAD THREADED BOLT M8 X 20L DOME HEAD ALLEN BOLT 3/8" X 2-1/4" HEX HEAD BOLT M8 X 30L FLAT HEAD ALLEN BOLT M8 X 16L FLAT HEAD ALLEN BOLT M6 X 15L FLAT HEAD ALLEN BOLT...
-
Page 13: Exploded Drawing
10 92 Exploded View 1 of 2 99 89... - Page 14 34-1 98 84 Exploded View 2 of 2...
-
Page 15: Computer Operation
COMPUTER OPERATION Console Operation Instruction Please read the console operation instruction thoroughly and get familiar with the console layout. Practice using this console before you start in order to get a better understanding of the functions. Make sure the AC adapter is properly plug in before using it. - Page 16 COMPUTER OPERATION Data display windows: There are 8 data display windows displaying “speed, time, distance, calories, rpm, level and watts” during exercising. Alphanumeric display window: this display will prompt instruction messages to assist you setting up the program and during exercising. Keys ...
- Page 17 COMPUTER OPERATION calories. It is recommended you adjust these values with your own personal data to get the most accurate workout feedbacks. The factory defaults are: o Age – 35 o Weight – 150lbs or 70kg o Program time – 30 minutes ...
- Page 18 Built in Wireless Heart Rate Receiver Note: Chest strap transmitter does not come with this unit; contact BODYCRAFT, or your dealer for purchase. This product is equipped with a built-in receiver for your heart rate monitoring. Any heart rate telemetry strap that transmits at 5Khz is compatible.
- Page 19 COMPUTER OPERATION 3. Buckle the other end of the chest strap onto the transmitter. 4. Center the transmitter on your chest below the pectoral muscle (breasts). 5. Stretch the transmitter away from your chest and moisten the conductive electrode strips located next to the buckles with water.
-
Page 20: Warranty
*This warranty is in lieu of all warranties, expressed or implied, and/or all other obligations or liabilities on our part and we neither assume nor authorize any person to assume for us any other obligation or liability in connection with the sale of your BodyCraft product. Under no...
