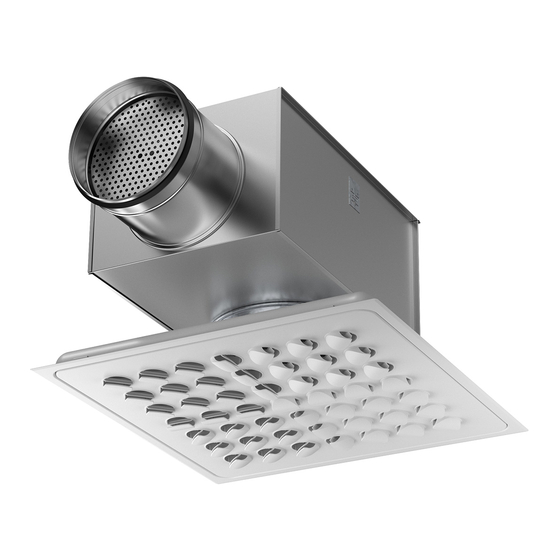

EAGLE Ceiling
Square ceiling diffuser with discs for supply air
QUICK FACTS
Also available in the Extract air version
○
Available with circular (EAGLE Ceiling C) and rectangu-
○
lar (EAGLE Ceiling R) disc pattern
Suitable for VAV and DCV applications
○
○
Fast and simple installation and commissioning through
Swegon Quick Access
○
Manages airflows substantially below room tempera-
ture (High DT)
○
Designed for modular suspended ceilings
ALS commissioning box with 1 or 2 changes in
○
dimension between the inlet and outlet
Available in a version with low installation height
○
○
Adapter for false ceilings
Air diffuser size 250-500 and 315-500 adapted for
○
ADAPTER
Standard colour White RAL 9003
○
-
5 alternative standard colours
-
Other colours upon request
AIR FLOW - SOUND PRESSURE ROOM ( Lp10A) *)
25 dB(A)
EAGLE Ceiling C
Size
l/s
125-400
39
125-600
41
160-400
58
160-600
55
200-500
78
200-600
83
250-500
113
250-600
108
315-500
124
315-600
147
400-600
175
25 dB(A)
EAGLE Ceiling C
ALS
Size
Size
l/s
125-400
100-125
31
125-600
100-125
31
160-400
125-160
48
160-600
125-160
45
200-500
160-200
69
200-600
160-200
68
250-500
200-250
100
250-600
200-250
98
315-500
250-315
114
315-600
250-315
134
400-600
315-400
165
*) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m
room absorption area.
Data applies to open damper.
30 dB(A)
35 dB(A)
m
/h
m
m
3
/h
l/s
3
l/s
142
46
166
54
148
49
176
59
208
67
242
79
198
65
233
76
282
90
324
104
299
97
349
113
407
131
472
152
389
125
451
145
448
145
523
170
528
171
615
199
629
204
734
238
30 dB(A)
35 dB(A)
m
/h
l/s
m
/h
l/s
m
3
3
111
36
130
43
111
36
131
43
171
56
202
66
162
53
191
63
248
80
289
94
245
80
289
95
360
116
418
135
354
114
412
133
410
133
480
156
482
156
561
181
594
192
691
223
/h
3
195
211
283
275
374
406
547
523
611
715
857
/h
3
154
155
238
226
337
341
487
479
562
653
803
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAGLE Ceiling and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swegon EAGLE Ceiling

Summary of Contents for Swegon EAGLE Ceiling

  • Page 1 Also available in the Extract air version ○ 25 dB(A) 30 dB(A) 35 dB(A) EAGLE Ceiling C Size Available with circular (EAGLE Ceiling C) and rectangu- ○ 125-400 lar (EAGLE Ceiling R) disc pattern 125-600 Suitable for VAV and DCV applications ○...

  • Page 2: Table Of Contents

    Dimensions and weights ........22 Disc pattern and disc settings ........24 Examples, circular disc arrangement ......24 Examples, square disc arrangement ......25 Order key ............26 Specification example ........26 Swegon reserves the right to alter specifications. 20190308...

  • Page 3: Technical Description

    Planning The rated coefficient of performance (K-factor) is specified on the The EAGLE Ceiling is available with square dimensions of 595 x identification label of the product and the relevant commissioning 595 mm in all connection sizes. This makes EAGLE instructions are also available at www.swegon.com.
  • Page 4 Figure 1. Opening and closing the diffuser face with Quick Access. Figure 3. Installing air diffusers and commissioning box with low installation height. Figure 4. Damper removal. 0xD / ±5% 0xD / ±5% 2xD / ±10% Figure 2. Installation alternatives. Swegon reserves the right to alter specifications. 20190308...

  • Page 5: Sizing

    Size Size 63 125 250 500 1000 2000 4000 8000 63 125 250 500 1000 2000 4000 8000 250-500 250-500 250-600 250-600 315-500 315-500 315-600 315-600 400-600 400-600 Tol. ± Tol. ± 20190308 Swegon reserves the right to alter specifications.

  • Page 6: Eagle Cc + Als - Supply Air - One Step

    Size Size 63 125 250 500 1000 2000 4000 8000 63 125 250 500 1000 2000 4000 8000 250-500 250-500 250-600 250-600 315-500 315-500 315-600 315-600 400-600 400-600 Tol. ± Tol. ± Swegon reserves the right to alter specifications. 20190308...

  • Page 7: Eagle Cc - Supply Air - Air Diffuser Only

    EAGLE CC 125-400, 160-400 and 200-500 – Supply air EAGLE CC 125-600, 160-600, 200-600, 250-600, 315-600 and 400-600 - Supply air 40 dB(A) 40 dB(A) 200 l/s 100 l/s 500 m 400 m 20190308 Swegon reserves the right to alter specifications.
  • Page 8 EAGLE CC 125-400 + ALS 100-125 - One step EAGLE CC 125-600 + ALS 100-125 - One step 40 dB(A) 40 dB(A) Swegon reserves the right to alter specifications. 20190308...
  • Page 9 40 dB(A) 40 dB(A) 100 l/s 400 m EAGLE CC 160-600 + ALS 100-160 - Two steps EAGLE CC 200-500 + ALS 160-200 - One step 40 dB(A) 40 dB(A) 500 m 20190308 Swegon reserves the right to alter specifications.
  • Page 10 EAGLE CC 200-600 + ALS 160-200 - One step 40 dB(A) 40 dB(A) 500 m EAGLE CC 250-500 + ALS 200-250 - One step EAGLE CC 315-500 + ALS 200-315 - One step 40 dB(A) 40 dB(A) Swegon reserves the right to alter specifications. 20190308...
  • Page 11 300 l/s 400 1000 m EAGLE CC 315-600 + ALS 200-315 - Two steps EAGLE CC 400-600 + ALS 315-400 - One step 40 dB(A) 40 dB(A) 400 l/s 500 1000 m 20190308 Swegon reserves the right to alter specifications.
  • Page 12 EAGLE CC 250-600 + ALS 200-250 - One step EAGLE CC 400-600 + ALS 315-400 - One step 40 dB(A) 40 dB(A) 400 l/s 500 500 m 1000 m EAGLE CC 315-500 + ALS 250-315 - One step 40 dB(A) Swegon reserves the right to alter specifications. 20190308...

  • Page 13: Eagle Cr - Extract Air

    Size Size 63 125 250 500 1000 2000 4000 8000 63 125 250 500 1000 2000 4000 8000 250-500 250-500 250-600 250-600 315-500 315-500 315-600 315-600 400-600 400-600 Tol. ± Tol. ± 20190308 Swegon reserves the right to alter specifications.

  • Page 14: Eagle Cr + Als - Supply Air - One Step

    Size Size 63 125 250 500 1000 2000 4000 8000 63 125 250 500 1000 2000 4000 8000 250-500 250-500 250-600 250-600 315-500 315-500 315-600 315-600 400-600 400-600 Tol. ± Tol. ± Swegon reserves the right to alter specifications. 20190308...

  • Page 15: Eagle Cr - Supply Air - Air Diffuser Only

    500 m 1000 m EAGLE CR 125-600, 160-600 and 200-600 – Supply air EAGLE CR 250-600, 315-600 and 400-600 – Supply air 40 dB(A) 40 dB(A) 400 l/s 500 500 m 1000 20190308 Swegon reserves the right to alter specifications.

  • Page 16: Eagle Cr - Extract Air - Air Diffuser Only

    EAGLE CR 160-400 + ALS 100-160 – Two steps EAGLE CR 125-400 + ALS 100-125 – One step 40 dB(A) 40 dB(A) Swegon reserves the right to alter specifications. 20190308...
  • Page 17 EAGLE CR 160-400 + ALS 125-160 – One step 40 dB(A) 40 dB(A) EAGLE CR 200-500 + ALS 125-200 – Two steps EAGLE CR 160-600 + ALS 100-160 – Two steps 40 dB(A) 40 dB(A) 100 l/s 400 m 20190308 Swegon reserves the right to alter specifications.
  • Page 18 EAGLE CR 200-500 + ALS 160-200 – One step 40 dB(A) 40 dB(A) 100 l/s 400 m EAGLE CR 250-500 + ALS 200-250 – One step EAGLE CR 200-600 + ALS 125-200 – Two steps 40 dB(A) 40 dB(A) Swegon reserves the right to alter specifications. 20190308...
  • Page 19 40 dB(A) 40 dB(A) 100 l/s 400 m 500 m EAGLE CR 250-600 + ALS 200-250 – One step EAGLE CR 315-500 + ALS 250-315 – One step 40 dB(A) 40 dB(A) 20190308 Swegon reserves the right to alter specifications.
  • Page 20 EAGLE CR 315-600 + ALS 250-315 – One step EAGLE CR 400-600 + ALS 315-400 – One step 40 dB(A) 40 dB(A) 300 l/s 400 400 l/s 500 1000 m 1000 m Swegon reserves the right to alter specifications. 20190308...

  • Page 21: Eagle Cr + Als: Extract Air

    EAGLE CR 250-600 + ALS 200-250 – One step EAGLE CR 400-600 + ALS 315-400 – One step 40 dB(A) 40 dB(A) 500 l/s 1000 2000 m EAGLE CR 315-500 + ALS 250-315 – One step 40 dB(A) 20190308 Swegon reserves the right to alter specifications.

  • Page 22: Dimensions And Weights

    125-400 125-600 160-400 160-600 200-500 200-600 250-500 250-600 315-500 10,2 11,3 315-600 14,6 400-600 EAGLE Ceiling with ALS 2-steps Size ØD2 Ød Weight, kg 160-400 160-600 200-500 200-600 250-600 315-500 – 315-600 Swegon reserves the right to alter specifications. 20190308...
  • Page 23 EAGLE Ceiling Figure 6. EAGLE Ceiling with ALS. Figure 7. EAGLE Ceiling with ALS. Low installation height. CL = Centre line CL = Centre line Frame SARb K Size Weight,kg Figure 8. Frame SAR K. When installing size 315-600 and 400-600 diffusers, posi- tion the ALS box so that its branch extends 20 mm below the ceiling surface.

  • Page 24: Disc Pattern And Disc Settings

    Standard and alternative disc settings for various diffusion patterns. NOTE: Air direction in the figure. Examples, circular disc arrangement 1-way Clock-wise swirl (standard) 3-way 2-way Counter-flow distribution pattern 4-way V1 Vertical, concentrated V2 Vertical, diffused Swegon reserves the right to alter specifications. 20190308...

  • Page 25: Examples, Square Disc Arrangement

    EAGLE Ceiling Examples, square disc arrangement 1-way Clock-wise swirl (standard) 2H-way 2M-way 4-way 3-way V2 Vertical, diffused V1 Vertical, concentrated 20190308 Swegon reserves the right to alter specifications.

  • Page 26: Order Key

    Square ceiling diffuser EAGLE xx b -aaa -bbb -c Swegon's complete square ceiling diffuser with discs, type for supply air EAGLE Ceiling circular disc arrangement with ALS com- Variant: missioning box and CC: Circular disc arrangement the following features: CR: Square disc arrangement •...
