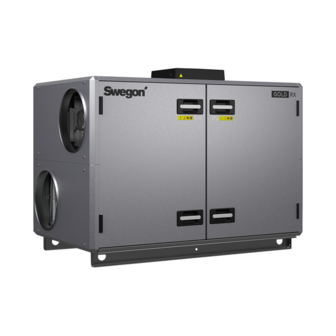

Swegon GOLD Series Upgrade Manual

To upgrade the GOLD/COMPACT air handling unit
by means of the MMC/SD card
1. General
The control unit in the GOLD/COMPACT is equipped with
a connection for insertion of an MMC/SD storage card, i.e.
a Multimedia card.
SD cards cannot be used for the GOLD RX/PX/CX/SD if the
control unit is a Version 5.07 or of an earlier version. SD
cards cannot be used for the COMPACT if the control unit
is of Version 1.03 or of an earlier version.
When an MMC/SD card is connected to the control
unit, the control system automatically searches to detect
whether the program version in the card is newer than the
one in the control system.
If it is, a display image will appear where the operator will
have to confi rm whether the system is to be upgraded.
The time it takes to upgrade the unit depends on how
many fi les differ between the old program and the new
program. This period may vary between one and ten
minutes.
If air handling units with an early version in the hand-held
micro terminal are upgraded, the display images may look
different afterwards. Therefore, two options are shown for
certain display images.
If Image 2a or 2b is shown, wait at least 10 minutes. If the
image remains, switch off the power for 10 seconds. Then
switch it back on again, to restart the control system.
2. Upgrade sequence
Check that the present settings in the air handling unit
agree with those in the Commissioning Report or make
a new note of them. For certain upgrades, involving sub-
stantial changes, it may be necessary to reinstate the origi-
nal factory settings. This will reset any entered settings.
1 Stop the air handling unit. Wait until image 4 appears in
the display on the hand-held micro terminal.
Switch off the safety isolating switch..
2 Fit the MMC/SD card into the card reader, i.e. insert
it, with the text side facing forward, into the slot on the
right-hand side of the control unit. See Image 1.
Switch on the safety isolating switch.
Reservation för ändringar.

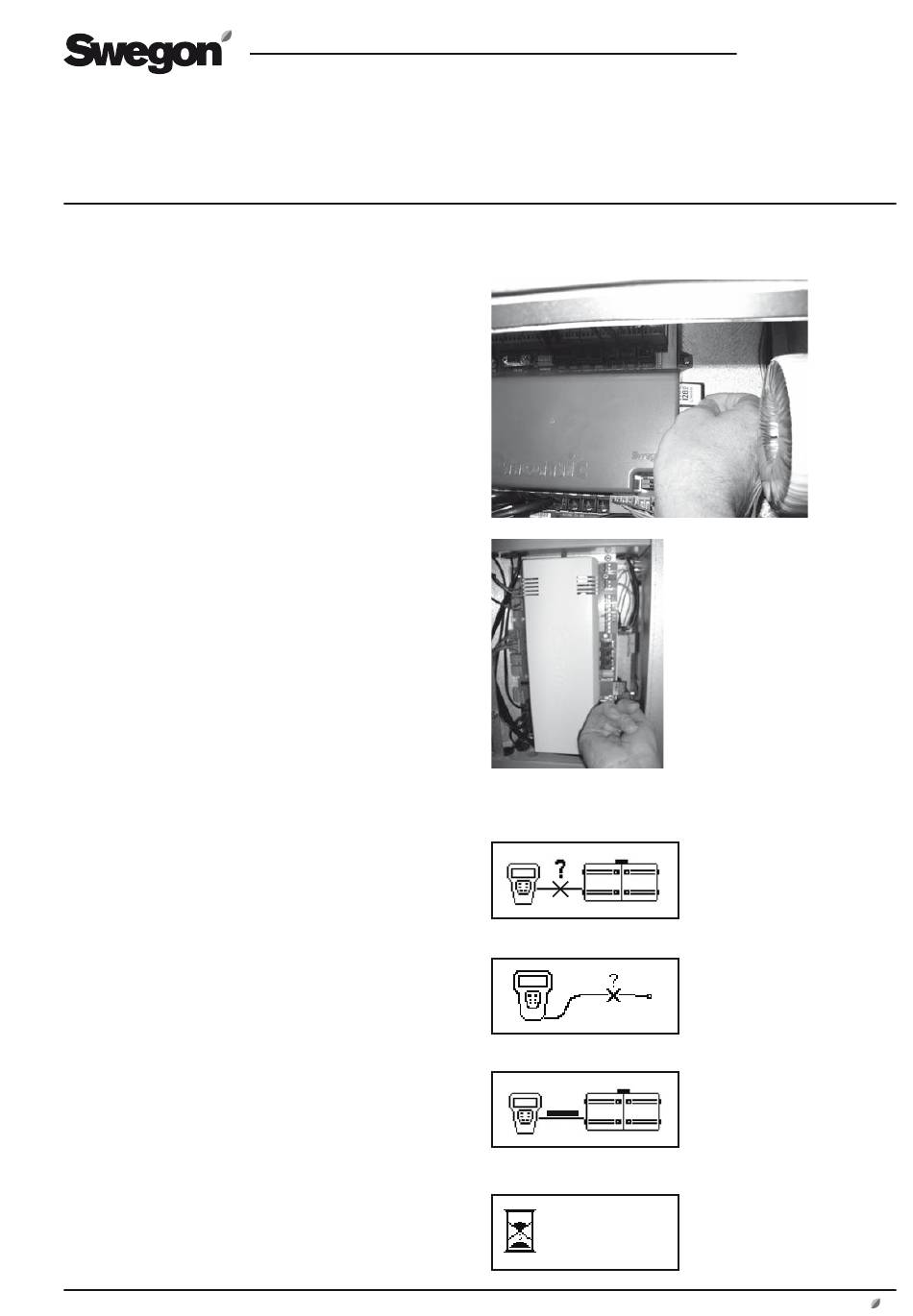

Image 1
Image 2a
Bild 2b
Image 3a
Image 3b
STARTING
UP....
GB.MMC480.101021
GOLD
RX/PX/CX/SD
GOLD LP/
COMPACT
www.swegon.com 1
