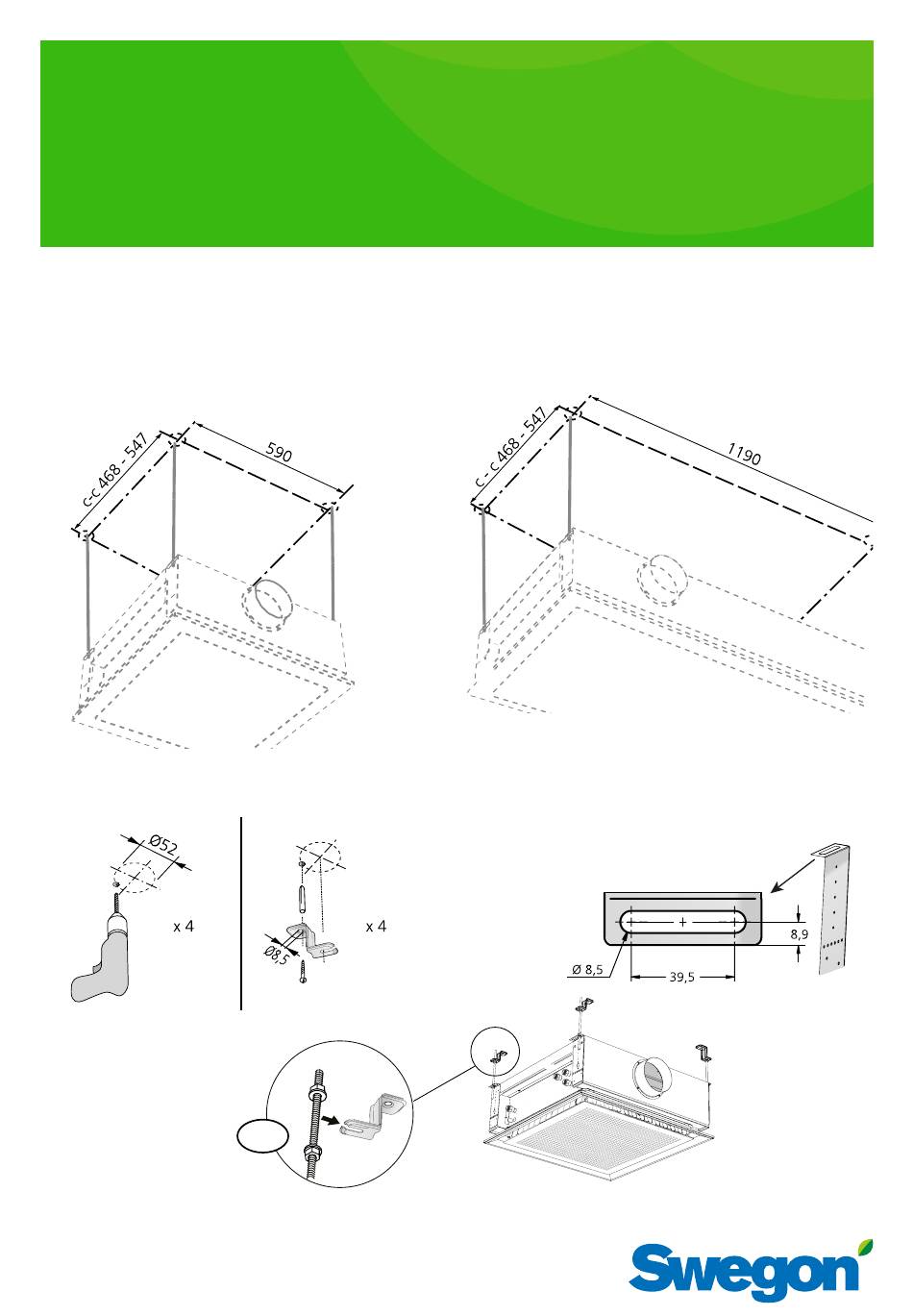

- Page 1 PARASOL c Installation – Commissioning – Maintenance 20160317 Installation / Montering PARASOL 600 PARASOL 1200...
- Page 2 Use support sleeves inside the pipes Tillopp värmevatten together with compression ring couplings. Return, heated water/ male threads, DN (1/2”) / Retur värmevatten utvändig gänga, DN (1/2”) OBS! Använd stödhylsor i rören tillsammans med klämringskopplingar. Swegon reserves the right to alter specifications 20160317...
- Page 3 La compuerta se debe montar siempre con la manija en el lado izquierdo, vista en la dirección del caudal de aire primario. Il registro di flusso deve sempre essere montato con il pomello rivolto a sinistra rispetto alla direzione della portata d'aria primaria. 20160317 Swegon reserves the right to alter specifications...
- Page 4 Commissioning / Injustering Vatten/Water Luft/Air Sida/Side 1 2 3 4 T-25 1 x 8 X-shape [Pa] q = k · √p [l/s] [pi Pa] q [l/s] k = k-faktor/-factor Dyskonfiguration Nozzle configuration Fan-shape Swegon reserves the right to alter specifications 20160317...
- Page 5 2&4 lång/long 3,192 1&3 kort/short 0,556 2&4 lång/long 1,467 * Parasol c 1200 PF with nozzle C is not completely closed * Parasol c 1200 PF med dysa C är inte helt stängd 20160317 Swegon reserves the right to alter specifications...
- Page 6 PARASOL c Maintenance / Skötsel OPEN THIS SIDE Swegon reserves the right to alter specifications 20160317...
