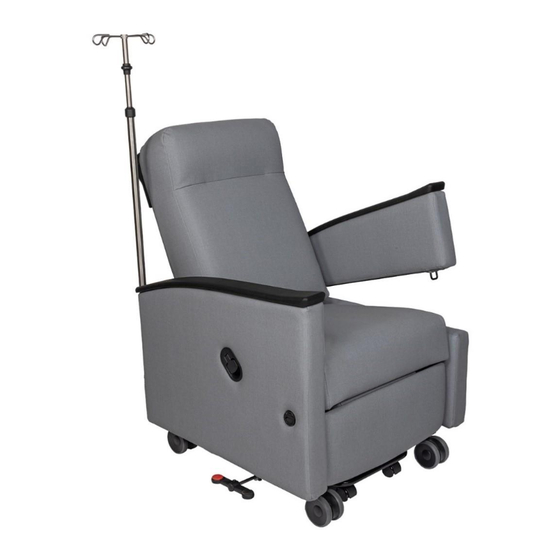

- Page 1 Unity Recliner Operations Manual 3800-000-101 3800-000-201 3800-000-301 3800-000-202 3800-000-302 Unity Recliner Manual REV A GD-00010066...
- Page 2 Symbols IEC 60601-1:2012 Edition General warning 3.1 and ISO 7010:2019- To signify a general warning. W001 Indicates that caution is necessary when operating the device or control close to where the symbol is placed, Caution ISO 15223-1:2021 or that the current situation needs operator awareness of operator action to avoid undesirable consequences.
-
Page 3: Table Of Contents
Contents In-Service Information ............................5 Special notes ................................5 Summary of safety precautions ........................6 Summary of pinch points ............................ 8 Indications for use ............................... 8 Intended use ................................8 Intended users ..............................8 Product description .............................. 9 Capacity information ............................ - Page 4 Single Lock Casters option ............................17 Transfer arm option ..............................18 IV pole/bracket ................................18 Cushion wedge ................................18 Head pillow .................................. 18 Head protector flap ..............................18 Foley hook ................................... 19 General maintenance and care of recliners ....................19 Quarterly preventative maintenance checklist .......................
-
Page 5: In-Service Information
• NOTE: The information contained in this document is subject to change without notice. You may locate the most updated document at: https://techweb.stryker.com/ Welcome We would like to thank you for selecting our recliners. We take great care in making certain that our recliners leave the factory in flawless condition. -
Page 6: Summary Of Safety Precautions
Summary of safety precautions WARNING WARNING: Always place recliner in an upright position or a fully reclined position when cleaning or maintaining your recliner to avoid the risk of injury. This recliner moves easily without an occupant in the recliner and may create pinch points when not fully reclined or upright. WARNING: Always keep hands, feet, and legs clear of the recline mechanism to avoid the risk of injury. - Page 7 Modifying this product also voids the warranty. If you cannot locate your in-service packet, contact Customer Service to obtain one. 1-800-327-0770 CAUTION CAUTION: Always make sure that new recliner inspection is completed by someone who understands the operations manual. Improper operation of the recliner may cause product damage and void your warranty.
-
Page 8: Summary Of Pinch Points
Summary of pinch points The recliner has moving parts that create pinch points. The recliner moves easily without an occupant in the recliner and may create pinch points when not in upright, TV, or full recline positions. Indications for use Unity Recliner, Clinical and Treatment The Unity series recliner is indicated to support and position patients, excluding infants, for treatment and examination in a healthcare facility. -
Page 9: Product Description
Range 42 in. / 43 in. 106.7 cm / 109.2 cm Wide) NARROW RECLINERS: 226 kg 3800-000-101 500 lb Value: Fixed arms, push handle, and optional accessories. 226 kg 3800-000-201 500 lb Clinical: Transfer arm(s), push handle, foley bag hooks, and optional accessories. -
Page 10: Contraindications
You can locate the date of manufacture underneath the footrest of the recliner. Below is a picture of the label. You may also call Stryker’s customer service team (1-800-327-0770) to find the date of manufacture. Please have the serial number found on the... -
Page 11: Receiving New Recliners
Receiving new recliners CAUTION: Always make sure that new recliner inspection is completed by someone who understands the operations manual. Improper operation of the recliner may cause product damage and void your warranty. New recliner setup and inspection Complete the following steps when you receive new recliners: Remove all packing material including foam wrap and bag. -
Page 12: Reporting Damage
If possible, save an undamaged carton and pallet in the event a recliner must be returned to the factory. 3. Contact Stryker Customer Service or Technical Support at: 1-800-327-0770 immediately to report the damage. All claims must be filed by the consignee and reported within 45 days of receipt of shipment. - Page 13 Figure 1 Figure 2 Letter Part Name Letter Part Name Mechanism release handle Push handle Footrest Trendelenburg release bar Foley hook IV hook Transfer arm release Top black collar button Lower black ring Push handle IV pole Backrest IV bracket (13) Unity Recliner Manual REV A GD-00010066...
-
Page 14: Operating Instructions
Operating instructions For safe recliner operation WARNING: Do not exceed the safe working load of the recliner. Safe working load is determined by occupant weight plus attachments to recliner. Exceeding safe working load may cause product damage and injury. WARNING: Always fully lock the casters before entry and exit of the recliner to avoid the risk of injury. -
Page 15: Trendelenburg
CAUTION: Do not force the recliner into position; permanent damage may result. The recliner works with normal effort when operated properly. CAUTION: Return the recliner to the TV position before closing the footrest. Closing the footrest while in the full recline position may damage the mechanism and will void your warranty. CAUTION: Always make sure the backrest is fully upright before you close the footrest. - Page 16 To actuate the Trendelenburg option: 1. Place the recliner into full recline position (See recliner positions). 3. Grasp the push handle (G) (Figure then squeeze and hold the Trendelenburg release bar (Figure 4. Lower the recliner and occupant to the desired degree of Trendelenburg position.
-
Page 17: Recliner Options And Accessories
Recliner options and accessories Foot tray option The foot tray pulls out from under the recliner footrest. Occupants should always be advised that the foot tray has been extended. Foot tray should be stowed when not in use. To fully extend the foot tray: 1. -
Page 18: Transfer Arm Option
Transfer arm option WARNING: Always lock the transfer arm when transferring an occupant or disinfecting the recliner to avoid the risk of injury. Occupant may be able to operate the transfer arm if not locked, which may cause bodily harm. The transfer arm allows the operator to perform a pivot or lateral transfer. -
Page 19: Foley Hook
The head protector flap is a preventative maintenance accessory that can preserve the life of your recliner. This flap features a snap close design that goes over the head portion of the backrest. This can save your backrest from hair products and oils, as the head flap is designed to be placed where the occupant would rest their head. -
Page 20: Quarterly Preventative Maintenance Checklist
Do not lubricate any part of the recliner, this may cause unintended operational use results. For a list of orderable parts and accessories please see https://techweb.stryker.com/. General cleaning and disinfecting WARNING: Direct skin contact with visibly soiled permeable material may increase risk of infection. -
Page 21: Stain Removal
Recliners should be: 1. Cleaned 2. Disinfected (per facility policy) 3. Rinsed 4. Dried with a soft cloth NOTE: Disinfecting a recliner is not the same as cleaning a recliner. Disinfectants alone will not provide adequate cleaning as they do not have grease/oil cutting properties to remove grime, and hair or skin oils. - Page 22 For United States only. Confirm availability for your configuration or region. Call Stryker: 1-800- 327- 0770. Stryker’s preferred wipes (2060-000-001 6'' x 10'' or 2060-000-002 9'' x 12'') and spray (2070-000- 001) include the following active ingredients: n-Alkyl (60% C14, 30% C16, 5% C12, 5% C18) dimethyl benzyl ammonium •...
-
Page 23: Warranty Procedure
NOTE: Follow your hospital protocols to launder cloth towels or dispose of wipes or paper cloths. Warranty procedure Filing a warranty claim To file a warranty claim, you must call Stryker’s customer service team (1-800-327-0770). Refer to the in-service packet provided upon delivery of your recliner(s) to find what your specific warranty covers. - Page 24 Stryker Medical 3800 E Centre Ave. Portage, MI 49002 (24) Unity Recliner Manual REV A GD-00010066...
