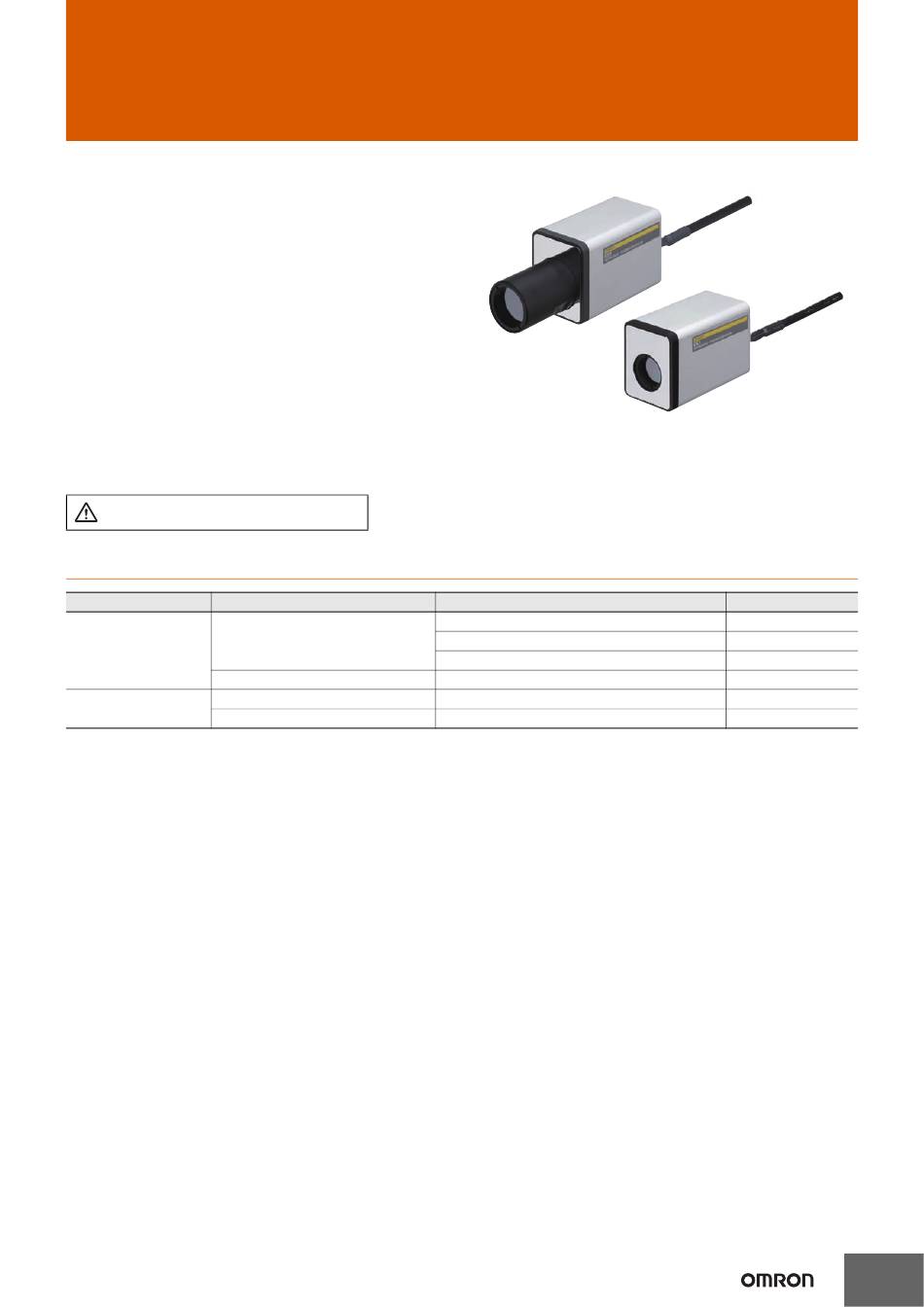

Infrared Thermosensor
ES1-N
Measure Workpieces without
Physical Contact
Non-damaging, Sanitary, and
Efficient Temperature Management
• Measurement temperature -50 to 500°C and -50 to
1,000°C types are available.
• High accuracy and fast measurement with ±0.5°C
reproducibility and a 0.14-second (95%) response time.
• You can use the ES1-TOOLS dedicated software (free
download from our website) as a setting tool to monitor
temperature and change the emissivity, moving average
function, and output range.
• Full lineup of laser pointer types.
Refer to Safety Precautions on 7.
Ordering Information
Type Measurement temperature range
-50 to 500°C *2
Without laser pointer
-50 to 1,000°C *2
-50 to 500°C *2
With laser pointer
-50 to 1,000°C *2
*1. This value is based on the 90% energy limit. The actual target object must be at least 1.5 times larger than this size.
*2. By default, the measurement range is 0 to 500°C, but you can change the range to -50 to +500°C or -50 to +1,000°C on the ES1-TOOLS.
Target size *1
3 mm dia. (at a distance of 30 mm)
8 mm dia. (at a distance of 100 mm)
40 mm dia. (at a distance of 500 mm)
35 mm dia. (at a distance of 1,000 mm)
40 mm dia. (at a distance of 500 mm)
35 mm dia. (at a distance of 1,000 mm)
Model
ES1-LP3-N
ES1-LP10-N
ES1-LW50-N
ES1-LW100-N
ES1-LW50L-N
ES1-LW100L-N
