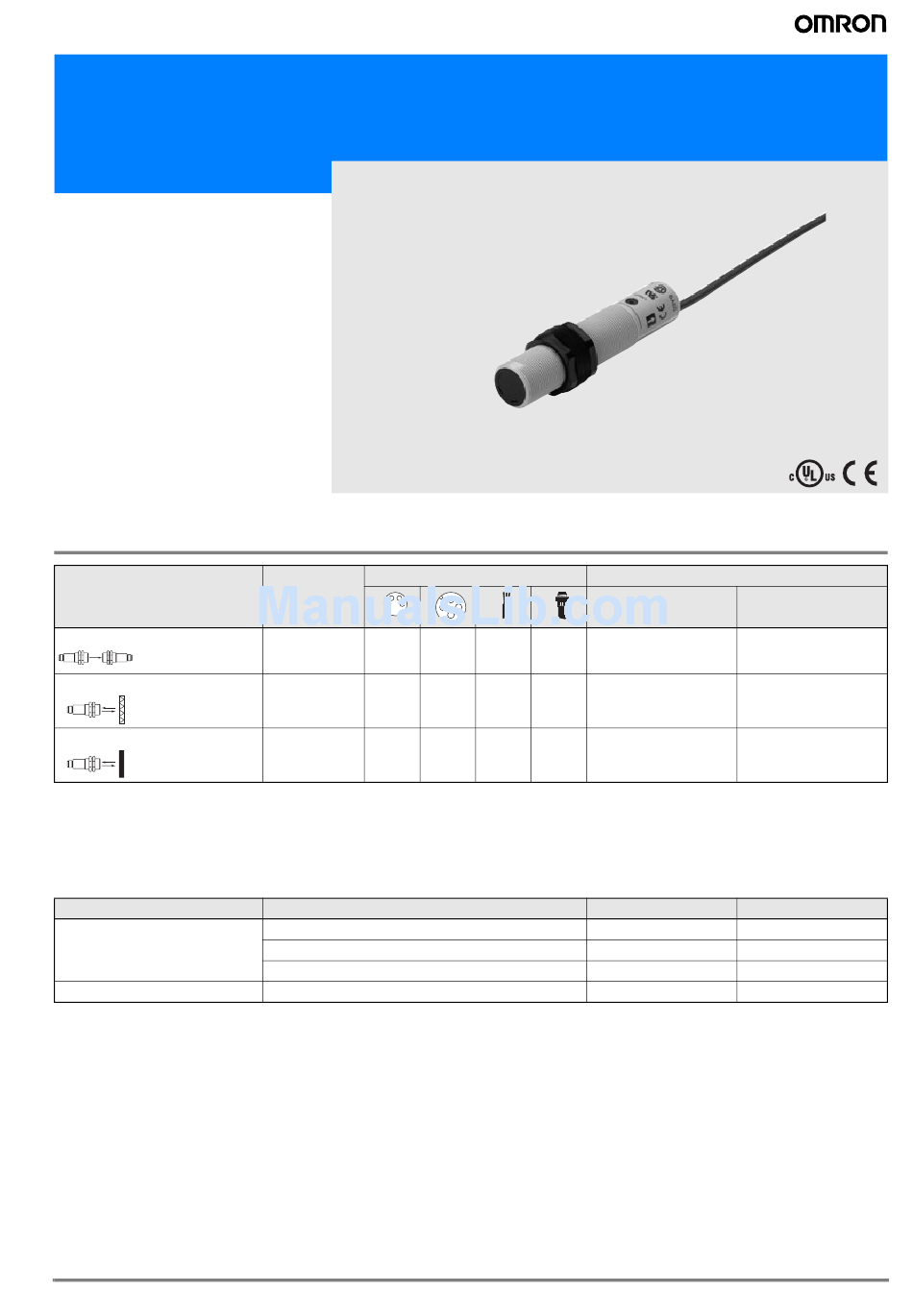

Cylindrical photoelectric sensor with built-in power supply in M18 housing
E3F2-240VAC
• Easy installation by compact
M18 housing
• Built-in power supply, suitable for
24-240 VAC; no extra power supply
needed
• Through-beam, Retro-reflective and
diffuse-reflective types
Ordering information
Sensing method
Through-beam
Retro-reflective without M.S.R
Diffuse-reflective wide beam
*1.
Order reflector seperately
*2.
Measured with E39-R1
Note: Standard cable length is 2 m. Models provided with a 5 m long cable are available. When ordering, specify the cable length by adapting the length of the cable
(e.g. E3F2-R2Z1-E 5M). For other cable length please contact your OMRON sales representative.
Accessories (Order Separately)
Name
Reflectors
Mounting Bracket
For detailed information about Accessories, refer to the main chapter "Accessories" at the end of the document.
E3F2-240VAC
Sensing
Connection method
distance
3 m
–
*1
*2
0.1 to 2 m
–
0.1 m (fixed)
–
Sensing distance (typical)
0.1 - 2 m
0.1 - 3 m
0.1 - 4 m
Order code
Light-ON
E3F2-3Z1 2M
–
2 m
–
E3F2-R2Z1-E 2M
–
2 m
–
E3F2-DS10Z1-N 2M
–
2 m
–
Remark
60 x 40 mm
∅ 84 mm
100 x 100 mm
screw mount
Dark-ON
E3F2-3Z2 2M
E3F2-R2Z2-E 2M
E3F2-DS10Z2-N 2M
Model
E39-R1
E39-R7
E39-R8
Y92E-B18
1
Advertisement
Table of Contents
Related Manuals for Omron E3F2-240VAC
Summary of Contents for Omron E3F2-240VAC
- Page 1 Measured with E39-R1 Note: Standard cable length is 2 m. Models provided with a 5 m long cable are available. When ordering, specify the cable length by adapting the length of the cable (e.g. E3F2-R2Z1-E 5M). For other cable length please contact your OMRON sales representative.
- Page 2 Incandescent lamp: 3000 lx max. Sunlight: 10000 lx max. Ambient temperature Operating: -25 to 55 °C / Storage: -30 to 70 °C (with no icing or condensation) Ambient humidity Operating: 35% to 85% / Storage: 35% to 95% (with no condensation) Insulation resistance 20 MΩ...
- Page 3 –200 Object Reflector –30 –300 –300 Distance X (mm) Distance X (m) Distance X (m) Excess Gain Ratio vs. Distance (typical) Through-beam Models Retro-reflective Models Diffuse-reflective Models E3F2-3Z# E3F2-R2Z# (non polarizing) E3F2-DS10Z-# (wide-beam type) and reflectors Sensing object: 50 x 50 mm...
- Page 4 Operation AC Output Output Connection Model transistor status Timing chart Output circuit method Through-beam emitter Brown Power indicator (red) E3F2-3LZ – – – Main 24 to 240 VAC circuit Blue Incident Interrupted Output E3F2-3Z1 ON when light is indicator E3F2-R2Z1 incident.
- Page 5 Dimensions Note: All units are in millimeters unless otherwise indicated Cable type Without potentiometer E3F2-3Z# E3F2-R2Z# 67.3 E3F2-DS10Z#-N 5 dia. M18 x 1 6g 16.8 dia. Light indicator optical zone Accessories (Order Separately) Reflectors Installation E39-R1 Mounting Bracket E39-R1S Y92E-B18 40.3...
- Page 6 As a general rule, wire the Sensor in a sepa- rate conduit or use shielded cable. Do not use a load that exceeds the rated load. Do not connect the black wire to the brown wire without a load. Direct connection of (2) Do not pull on the cable with excessive force.
