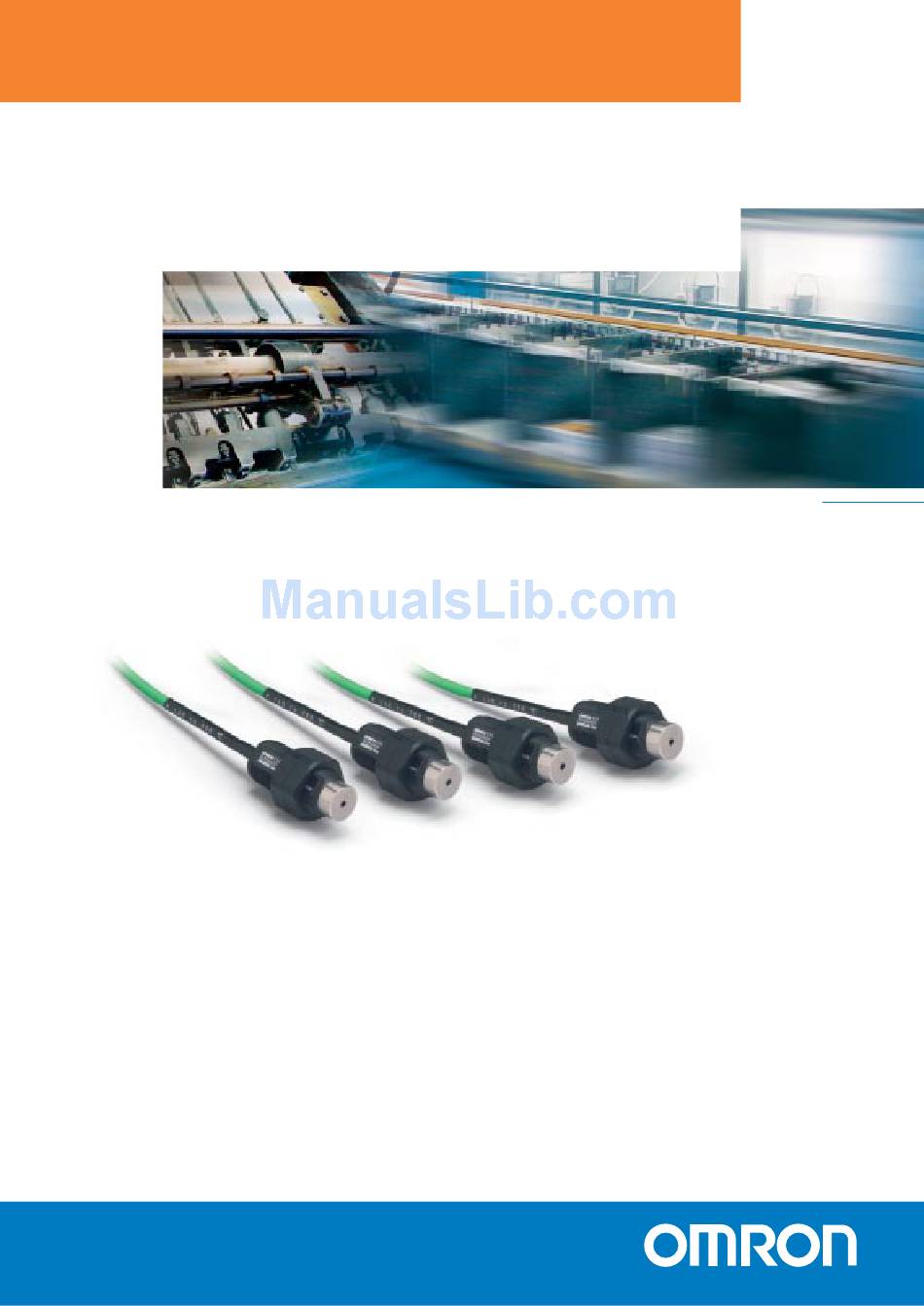

Omron ES1B Brochure

ES1B
Infrared thermosensor
The cost-effective, contact-less way to temperature sensing!
Omron's ES1B is an infrared thermosensor that provides an accurate, stable and cost-effective way to measure the temperature
of objects. It produces an output signal (in mV) that is proportional to the temperature of the object. The unit behaves just like
a standard K type thermocouple, which enables it to operate with any temperature controller or alarm unit.
Compared to some passive IR sensors, Omron's ES1B is more
sensitive. Despite the fact that the stated 'field of view' is the same
(1:1), the ES1B can be mounted up to 40% further away from the
measured object to generate the same output.
Four thermosensor models are available, each being calibrated for
a specific temperature range: 10-70°C, 60-120°C, 115-165°C and
140-260°C. Each model gives reproducibility to within 1% of its range.
Designed to Omron's high-quality standards, the ES1B has a silicon-
based cable that is resistant to dust and water. This thermosensor
is ideal for handling applications that include baking, packaging,
sealing and laminating.
Advanced Industrial Automation
Cost-effective operation
The ES1B is an alternative replacement for standard thermocouples.
While the operating principle of temperature measurement is similar
for both, the ES1B has no contact with the object whose temperature
it measures. Once the ES1B and instrument combination is calibrated,
the reproducible signal is always available and not only provides
stable, real time temperature measurement, it also reduces downtime
of the machine. This is what makes the ES1B very cost effective.
