Draper 15102 User Manual

Draper 15102 User Manual

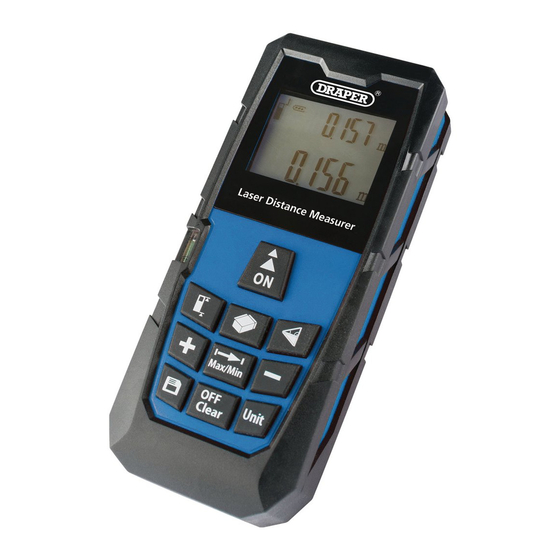

Laser distance measurer

Advertisement

Quick Links

LASER
DISTANCE MEASURER
15102
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Draper 15102

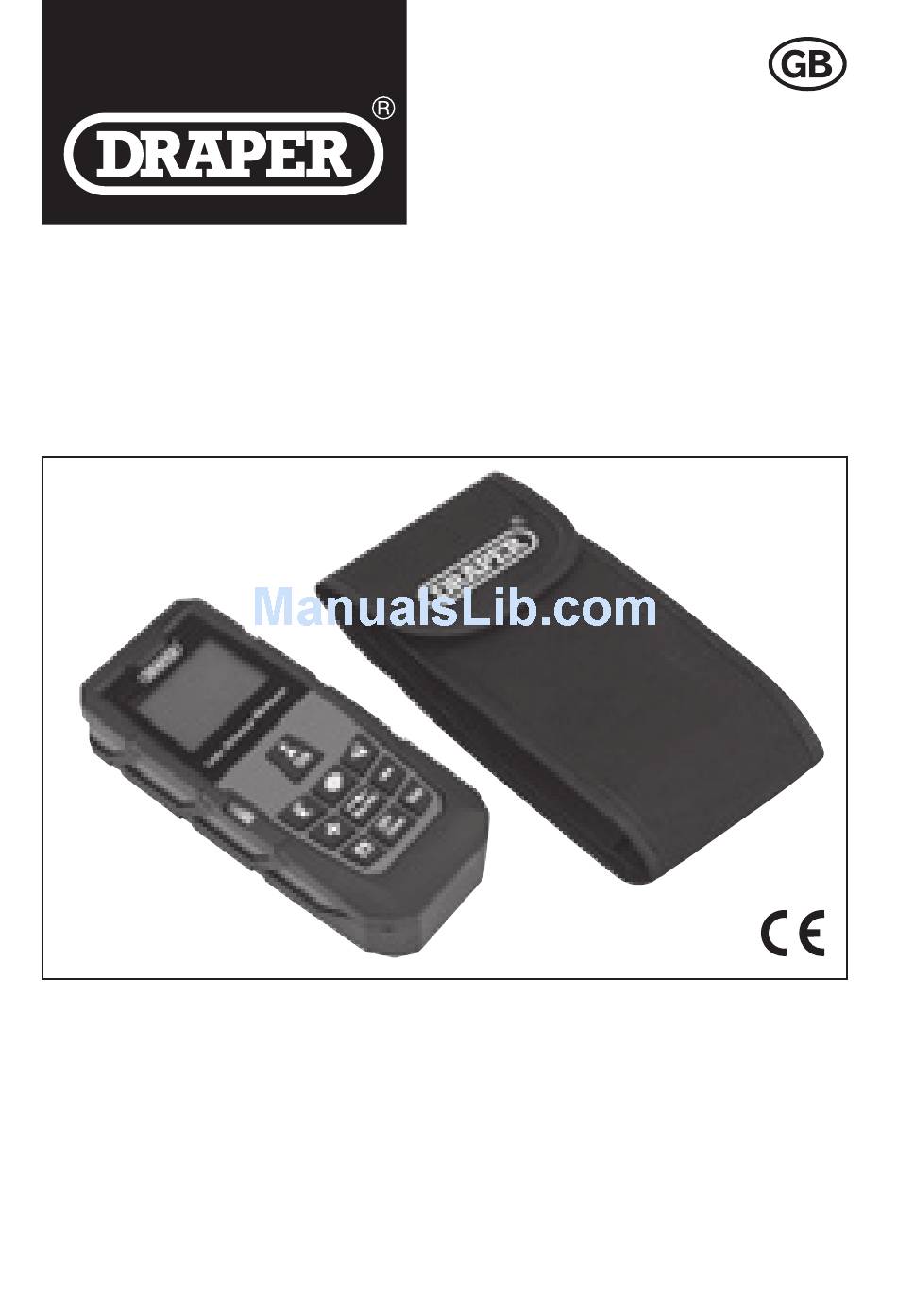

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
  • Page 2: Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
  • Page 3: Table Of Contents

    CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................
  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
  • Page 5: Introduction

    • Tripod-ready. Dynamic (continuous) measuring. • Measures area and volume • Indirect measuring using Pythagorean theorem. 4.2 SPECIFICATION Stock no..........................15102 Part no ..........................LDM-40M Measuring Range ......................0.2M - 40M Accuracy........................±2mm@40m Laser ......................Class 2 , 635nm, <1mW Battery ......................2 x AAA (not supplied) Operating Temperature ....................
  • Page 6: Health And Safety Information

    HEALTH & SAFETY INFORMATION 5.1 HEALTH & SAFETY INFORMATION • Laser radiation. Do NOT stare into beam. Class II • Do NOT use in the vicinity of children. laser product. • Do NOT direct the beam onto reflective surfaces. • Viewing the laser output with certain optical •...
  • Page 7: Technical Description

    6. TECHNICAL DESCRIPTION 6.1 IDENTIFICATION + key Indirect measurement Tripod thread Continuous measurement Measurement of area and Battery compartment volume cover Measuring basis setting Unit conversion Save key Off/clear key Spirit level Laser Laser emission on Receiver - key Laser designator Measure reference edge (back end) Measure reference edge (front end) Open digital power display...
  • Page 8: Preparing The Measure

    7. PREPARING THE MEASURE 7.1 BATTERY INSTALLATION - FIG. 1 FIG. 1 Remove the battery cover on the back of the device. Replace 2 x AAA batteries (not supplied) according to correct polarity. Then replace the battery cover. NOTE: Only use 1.5V AAA alkaline batteries. If not in use, remove battery to avoid battery corrosion to metre body.
  • Page 9: Basic Measure Operations

    8. BASIC MEASURE OPERATIONS 8.1 SINGLE MEASUREMENT Press to start up, and press again to measure the distance. The result will be displayed on the screen immediately. 8.2 CONTINUOUS MEASUREMENT Press to enter continuous measurement status. displays the minimum value and displays minimum value.
  • Page 10: Add/Subtract Calculation Of Measured Value

    8. BASIC MEASURE OPERATIONS 8.6 ADD-SUBTRACT CALCULATION OF MEASURED VALUE Only several simple keys operation is needed to figure out the total of several measured values. When a value is measured, press to save the data (temporarily). Then find the next measuring point and press to measure it.
  • Page 11: Maintenance

    9. MAINTENANCE 9.1 INSTRUMENT MAINTENANCE The measurer should not be stored in high temperatures and strong humidity environment for long periods of time, if not used for a long time please take out the batteries and place the measure in the storage wallet and store in a cool and dry place.
  • Page 12: Troubleshooting

    10. TROUBLESHOOTING All information will be displayed in the form of code or “Error”. Now display codes and relevant solutions are listed below: Code Reason Solution Miscalculation Operate again upon requirements of manual Electric currents exceed standard Please contact with your dealer Low battery Please change battery in time The external measurement temperature of...
  • Page 13: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION Laser radiation. Do not stare into beam Class 2 laser product WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Warning! Read the instruction manual. 12. DISPOSAL 12.1 DISPOSAL –...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.

This manual is also suitable for:

Ldm-40m
