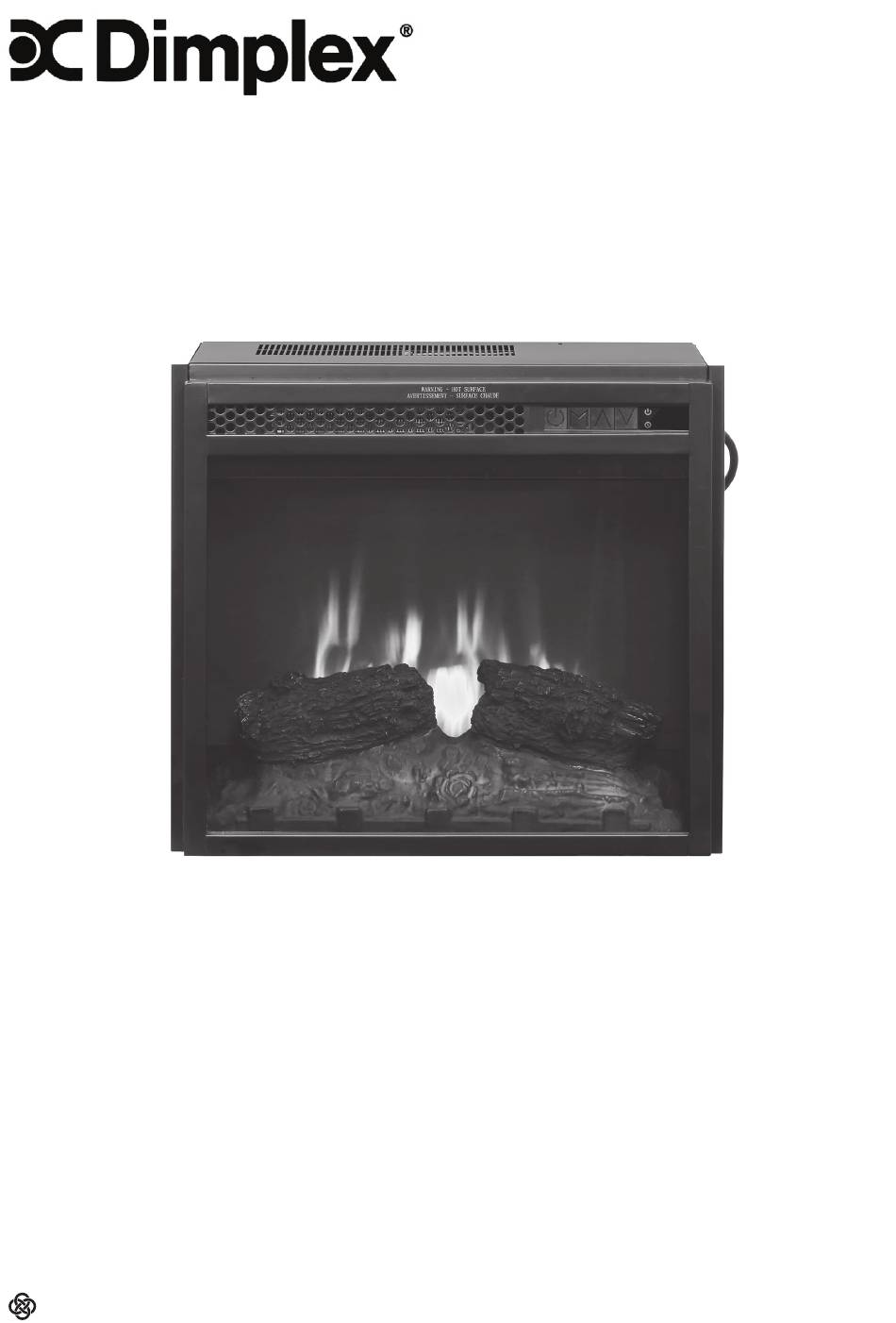

Owner's Manual
Models SPF1808L-IR (6910280100)
SPF2308L-IR (6910290100)
IMPORTANT SAFETY INFORMATION: Read this manual before attempting to
install or use the Dimplex Electric Fireplace. Always comply with the warnings and
safety instructions contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products, visit www.dimplex.com
7215900100R00
A BRAND OF GLEN DIMPLEX AMERICAS
Advertisement
Table of Contents
Related Manuals for Dimplex SPF1808L-IR
Summary of Contents for Dimplex SPF1808L-IR
- Page 1 Models SPF1808L-IR (6910280100) SPF2308L-IR (6910290100) IMPORTANT SAFETY INFORMATION: Read this manual before attempting to install or use the Dimplex Electric Fireplace. Always comply with the warnings and safety instructions contained in this manual to prevent personal injury or property damage.
-
Page 2: Table Of Contents
NOTE: Procedures and techniques considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Welcome
Welcome Thank you for purchasing a Dimplex Electric Fireplace. Please use our convenient online registration page to record your model and serial numbers for future reference at: www.dimplex.com/register Model Number XXXXXXXXXXXXX CAT. # № DE CAT. CAT. NO. ELECTRIC FIREPLACE FOYER ÉLECTRIQUE CHIMENEA ELÉCTRICA... -
Page 4: Important Instructions
• To disconnect the fireplace, turn the • Always connect to properly controls off, then remove the plug grounded outlets. from the outlet. • Do not use outdoors. SAVE THESE INSTRUCTIONS www.dimplex.com... - Page 5 IMPORTANT INSTRUCTIONS FCC Compliance • Do not run cord under carpeting. Do not cover cord with throw rugs, This equipment has been tested and found runners or the like. Arrange cord to comply with the limits for Class B digital away from traffic areas and where it devices, pursuant to part 15 of the FCC will not be tripped over.
-
Page 6: Specifications
Specifications Electrical Dimensions Volts: 120 V~, 60 Hz SPF1808L-IR Amps: 12.5 A Width: 19" (480 mm) Watts: 1500 W Height: 17" (430 mm) Heating: Infrared Depth: 8-1/2" (215 mm) Wiring: Plug-In Weight: 28.6 lbs (13 kg) Bulb Type: LED Mantel Opening... -
Page 7: Installation
Installation The fireplace insert is intended for use with a mantel. Make sure you can access the back of the mantel as your fireplace is installed from the back. Follow the mantel instructions for proper fireplace installation, if available. NOTE The fireplace insert needs to be secured to the mantel before it is used. -
Page 8: Operation
If the fireplace insert is disconnected from the main power source, it reverts to the default settings. ! NOTE: Each time the fireplace insert is plugged in, it runs an internal program check and the heater will turn on for 5 seconds. www.dimplex.com... - Page 9 Operation Mode Button Press the Mode Button to cycle through Heat, Timer or Flame Brightness set mode. Heat Set Mode When active press Up or Down Button to set temperature from 59°F (15°C) to 86°F (30°C), ON and OF. ‘ON’ means the heater operates continuously.
- Page 10 To disable the Child Lock, again press and hold the Power ON/OFF Button for 10 seconds. ! NOTE: This function can only be done through the fireplace controls, not using the remote control. www.dimplex.com...
-
Page 11: Maintenance
Maintenance Remote Control The battery compartment is located on the back end of the remote control. • Press the small tab inward as you slide the battery door open. • Insert the included or a new CR2025 lithium battery, ensuring the polarities of the battery match the inside of the battery compartment. - Page 12 NOTE: When the heater is not in use, the heater should be stored in a dry location, away from possible damage. The power cord should be stored properly to avoid contact with hot or sharp objects. www.dimplex.com...
-
Page 13: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION No power, The unit does not have Check that unit is plugged into a logs do not power. standard 120 volt outlet. Then make glow. sure power is set at “ON” position. E1 displayed The overheat Unplug unit, wait 5-10 minutes, then on control protection device has... -
Page 14: Warranty
What Glen Dimplex Americas will do in the event of a defect What this limited warranty covers and for In the event a product or part covered by this... - Page 15 Glen Dimplex Americas may, in lieu of repair or replacement, What Glen Dimplex Americas and its dealers choose to refund the purchase price for and service agents are also not responsible such product or part.
-
Page 16: Technical Support
Make sure you have your sales receipt, location of purchase, and the model and serial number of your product. 1-888-346-7539 | www.dimplex.com/contact_us In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice. Glen Dimplex Americas 1-888-346-7539 | www.dimplex.com © 2020 Glen Dimplex Americas...
