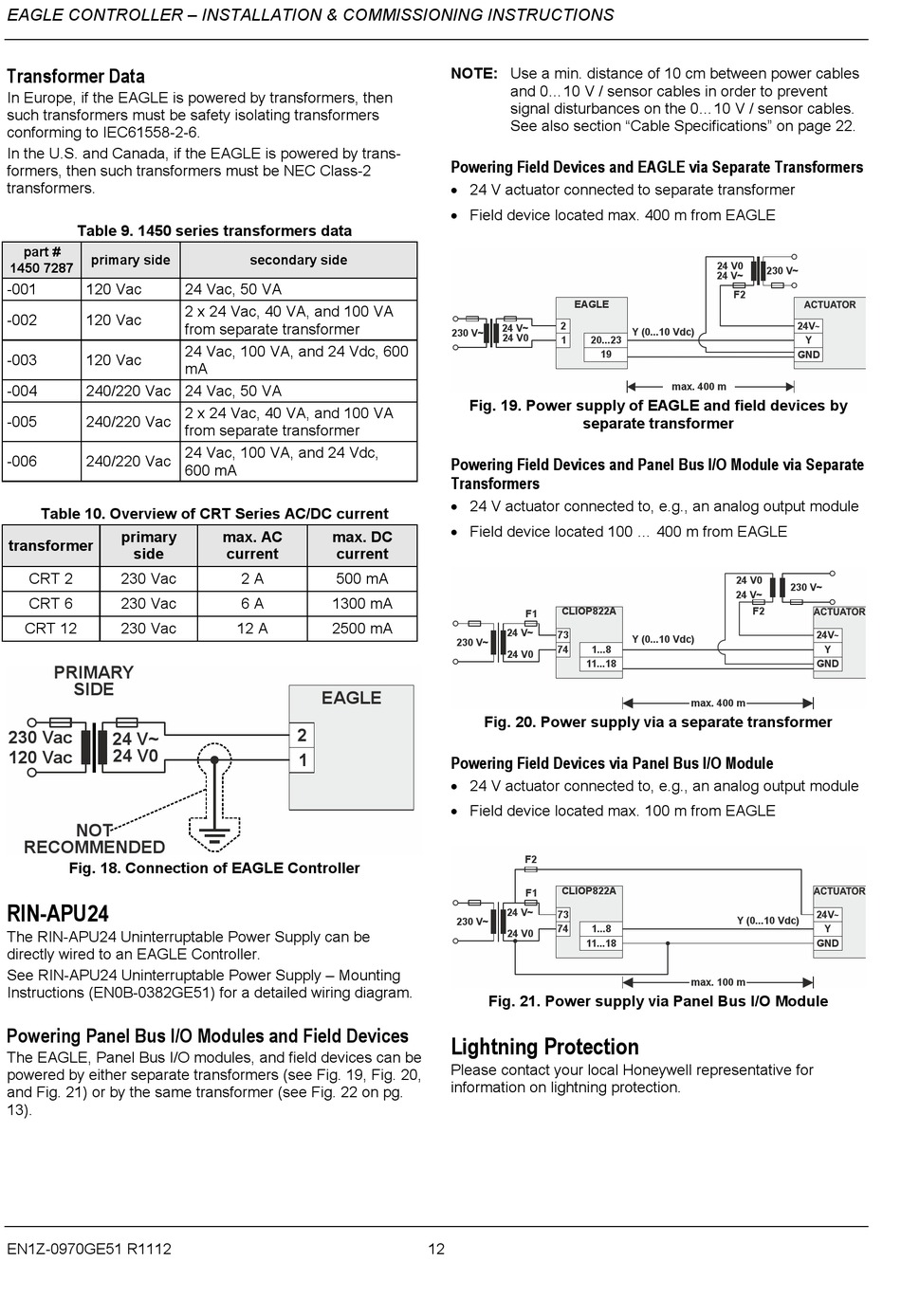

EAGLE CONTROLLER – INSTALLATION & COMMISSIONING INSTRUCTIONS
Transformer Data
In Europe, if the EAGLE is powered by transformers, then
such transformers must be safety isolating transformers
conforming to IEC61558-2-6.
In the U.S. and Canada, if the EAGLE is powered by trans-
formers, then such transformers must be NEC Class-2
transformers.
Table 9. 1450 series transformers data
part #
primary side
1450 7287
-001
120 Vac
-002
120 Vac
-003
120 Vac
-004
240/220 Vac 24 Vac, 50 VA
-005
240/220 Vac
-006
240/220 Vac
Table 10. Overview of CRT Series AC/DC current
primary
transformer
side
CRT 2
230 Vac
CRT 6
230 Vac
CRT 12
230 Vac
PRIMARY
SIDE
230 Vac
24 V~
24 V0
120 Vac
NOT
RECOMMENDED
Fig. 18. Connection of EAGLE Controller

RIN-APU24

The RIN-APU24 Uninterruptable Power Supply can be
directly wired to an EAGLE Controller.
See RIN-APU24 Uninterruptable Power Supply – Mounting
Instructions (EN0B-0382GE51) for a detailed wiring diagram.
Powering Panel Bus I/O Modules and Field Devices
The EAGLE, Panel Bus I/O modules, and field devices can be
powered by either separate transformers (see Fig. 19, Fig. 20,
and Fig. 21) or by the same transformer (see Fig. 22 on pg.
13).
EN1Z-0970GE51 R1112
secondary side
24 Vac, 50 VA
2 x 24 Vac, 40 VA, and 100 VA
from separate transformer
24 Vac, 100 VA, and 24 Vdc, 600
mA
2 x 24 Vac, 40 VA, and 100 VA
from separate transformer
24 Vac, 100 VA, and 24 Vdc,
600 mA
max. AC
max. DC
current
current
2 A
500 mA
6 A
1300 mA
12 A
2500 mA
EAGLE
2
1
NOTE: Use a min. distance of 10 cm between power cables
and 0...10 V / sensor cables in order to prevent
signal disturbances on the 0...10 V / sensor cables.
See also section "Cable Specifications" on page 22.
Powering Field Devices and EAGLE via Separate Transformers
 24 V actuator connected to separate transformer
 Field device located max. 400 m from EAGLE
EAGLE
2
24 V~
230 V~
24 V0
1
20...23
Fig. 19. Power supply of EAGLE and field devices by
separate transformer
Powering Field Devices and Panel Bus I/O Module via Separate
Transformers
 24 V actuator connected to, e.g., an analog output module
 Field device located 100 ... 400 m from EAGLE
CLIOP822A
F1
24 V~
73
230 V~
74
1...8
24 V0
11...18
Fig. 20. Power supply via a separate transformer
Powering Field Devices via Panel Bus I/O Module
 24 V actuator connected to, e.g., an analog output module
 Field device located max. 100 m from EAGLE
F2
CLIOP822A
F1
24 V~
73
230 V~
74
1...8
24 V0
11...18
Fig. 21. Power supply via Panel Bus I/O Module

Lightning Protection

Please contact your local Honeywell representative for
information on lightning protection.
12
24 V0
230 V~
24 V~
F2
Y (0...10 Vdc)
19
max. 400 m
24 V0
24 V~
F2
Y (0...10 Vdc)
max. 400 m
Y (0...10 Vdc)
max. 100 m
24V
~
Y
GND
230 V~
24V
~
Y
GND
24V
~
Y
GND
