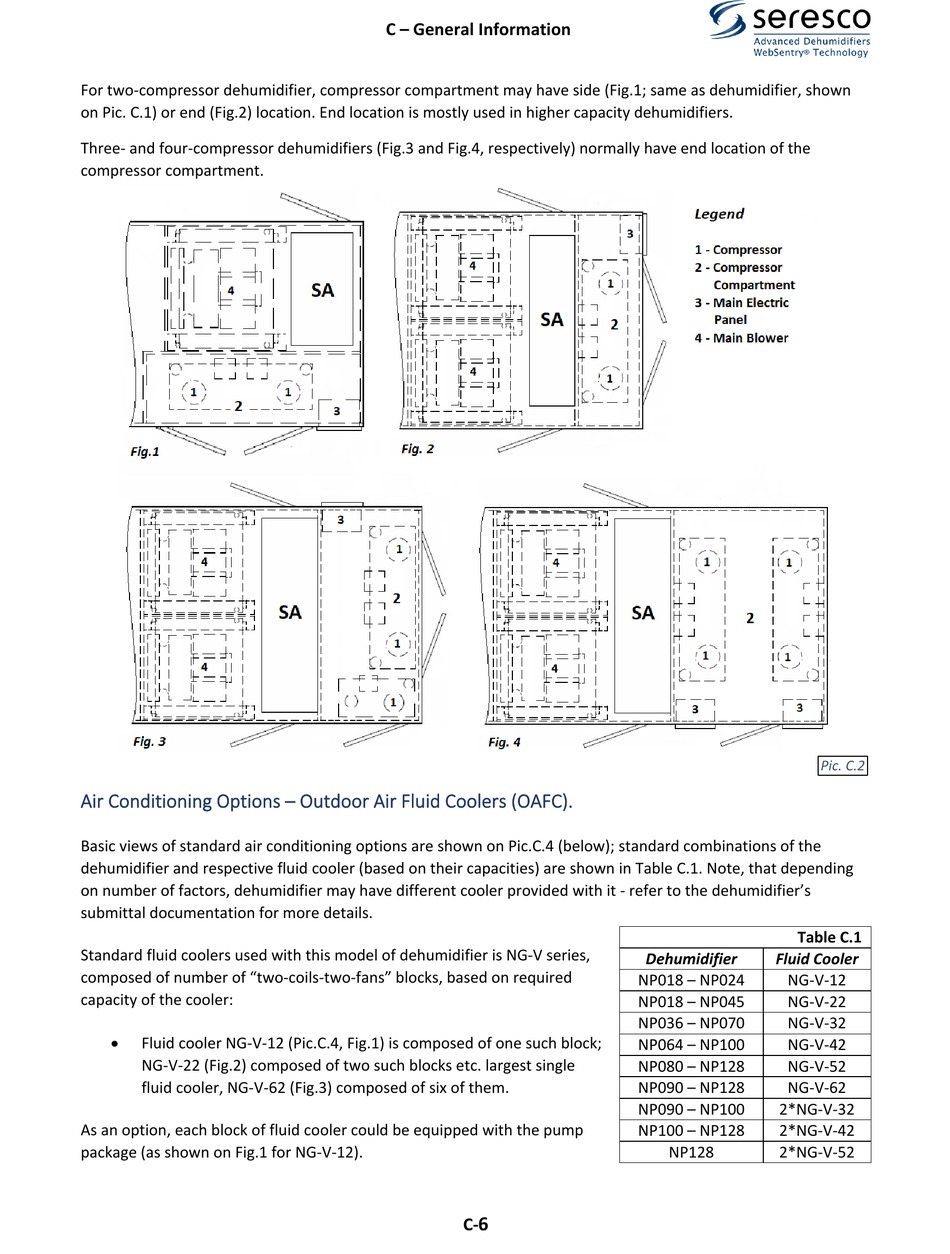

For two‐compressor dehumidifier, compressor compartment may have side (Fig.1; same as dehumidifier, shown
on Pic. C.1) or end (Fig.2) location. End location is mostly used in higher capacity dehumidifiers.
Three‐ and four‐compressor dehumidifiers (Fig.3 and Fig.4, respectively) normally have end location of the
compressor compartment.

Air Conditioning Options – Outdoor Air Fluid Coolers (OAFC).
Basic views of standard air conditioning options are shown on Pic.C.4 (below); standard combinations of the
dehumidifier and respective fluid cooler (based on their capacities) are shown in Table C.1. Note, that depending
on number of factors, dehumidifier may have different cooler provided with it ‐ refer to the dehumidifier's
submittal documentation for more details.
Standard fluid coolers used with this model of dehumidifier is NG‐V series,
composed of number of "two‐coils‐two‐fans" blocks, based on required
capacity of the cooler:
Fluid cooler NG‐V‐12 (Pic.C.4, Fig.1) is composed of one such block;
NG‐V‐22 (Fig.2) composed of two such blocks etc. largest single
fluid cooler, NG‐V‐62 (Fig.3) composed of six of them.
As an option, each block of fluid cooler could be equipped with the pump
package (as shown on Fig.1 for NG‐V‐12).

C – General Information
6
C‐


Dehumidifier
NP018 – NP024
NP018 – NP045
NP036 – NP070
NP064 – NP100
NP080 – NP128
NP090 – NP128
NP090 – NP100
NP100 – NP128
NP128

Pic. C.2
Table C.1
Fluid Cooler
NG‐V‐12
NG‐V‐22
NG‐V‐32
NG‐V‐42
NG‐V‐52
NG‐V‐62
2*NG‐V‐32
2*NG‐V‐42
2*NG‐V‐52
