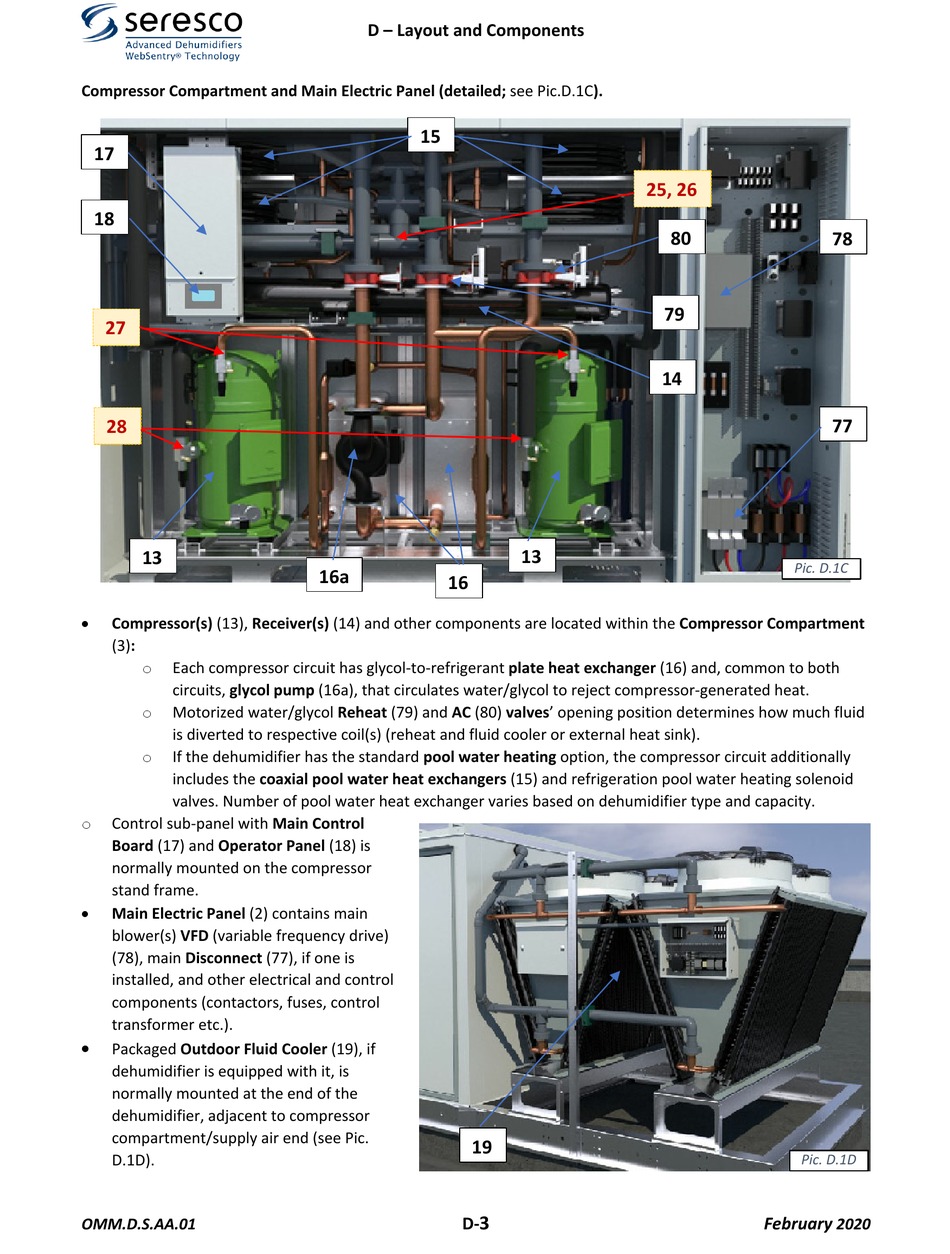

Compressor Compartment and Main Electric Panel (detailed; see Pic.D.1C).
17
18
27
28
13

Compressor(s) (13), Receiver(s) (14) and other components are located within the Compressor Compartment
(3):
o
Each compressor circuit has glycol‐to‐refrigerant plate heat exchanger (16) and, common to both
circuits, glycol pump (16a), that circulates water/glycol to reject compressor‐generated heat.
o
Motorized water/glycol Reheat (79) and AC (80) valves' opening position determines how much fluid
is diverted to respective coil(s) (reheat and fluid cooler or external heat sink).
o
If the dehumidifier has the standard pool water heating option, the compressor circuit additionally
includes the coaxial pool water heat exchangers (15) and refrigeration pool water heating solenoid
valves. Number of pool water heat exchanger varies based on dehumidifier type and capacity.
o
Control sub‐panel with Main Control
Board (17) and Operator Panel (18) is
normally mounted on the compressor
stand frame.
Main Electric Panel (2) contains main
blower(s) VFD (variable frequency drive)
(78), main Disconnect (77), if one is
installed, and other electrical and control
components (contactors, fuses, control
transformer etc.).
Packaged Outdoor Fluid Cooler (19), if
dehumidifier is equipped with it, is
normally mounted at the end of the
dehumidifier, adjacent to compressor
compartment/supply air end (see Pic.

D.1D).

OMM.D.S.AA.01
D – Layout and Components
15
16a
16
19
3
D‐

25, 26
80
79
14
13
78
77

Pic. D.1C

Pic. D.1D
February

 2020
