Interface and Communication
Touch Display Operator Panel

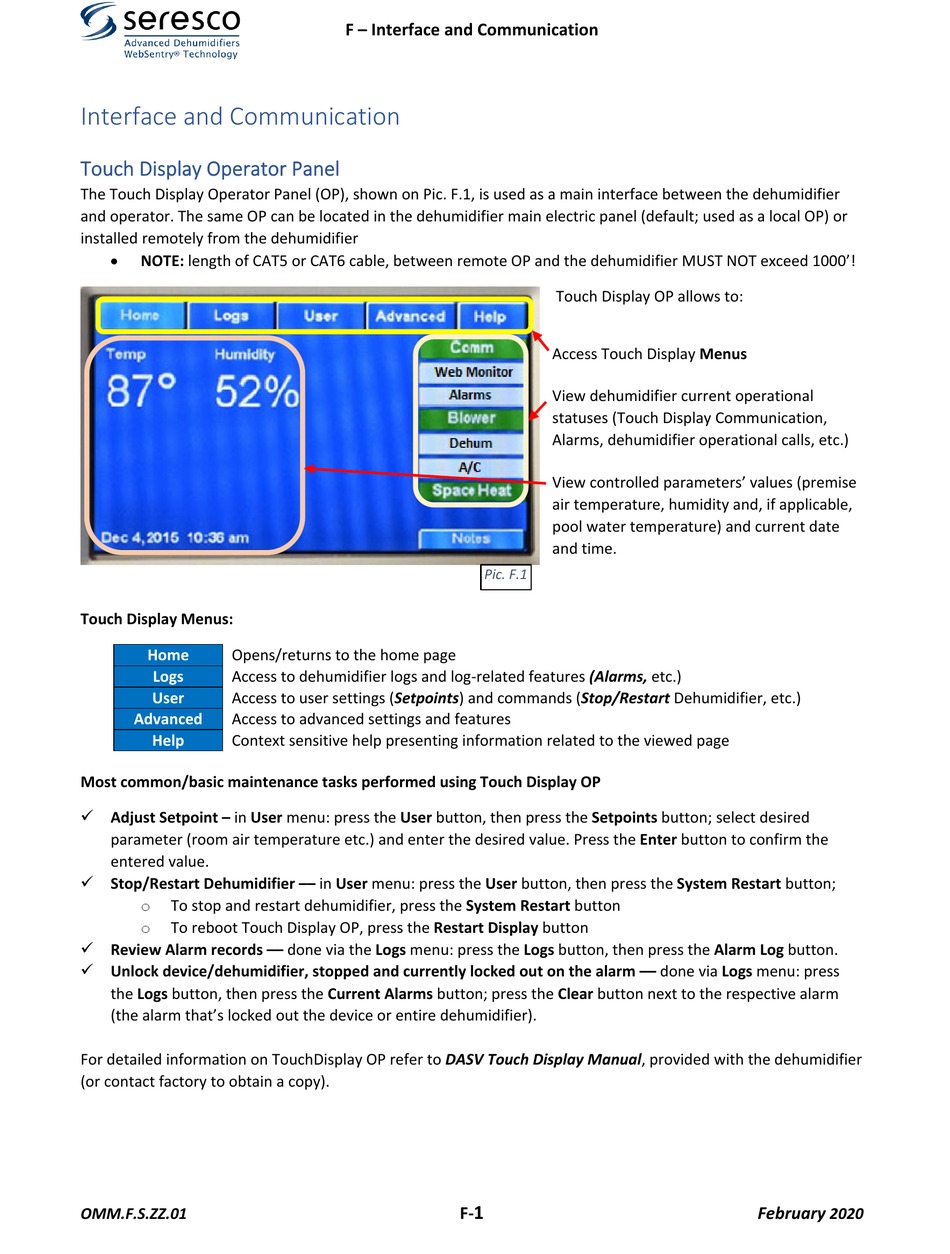

The Touch Display Operator Panel (OP), shown on Pic. F.1, is used as a main interface between the dehumidifier
and operator. The same OP can be located in the dehumidifier main electric panel (default; used as a local OP) or
installed remotely from the dehumidifier
NOTE: length of CAT5 or CAT6 cable, between remote OP and the dehumidifier MUST NOT exceed 1000'!

Touch Display Menus:
Home
Opens/returns to the home page
Logs
Access to dehumidifier logs and log‐related features (Alarms, etc.)
User
Access to user settings (Setpoints) and commands (Stop/Restart Dehumidifier, etc.)
Advanced
Access to advanced settings and features
Help
Context sensitive help presenting information related to the viewed page
Most common/basic maintenance tasks performed using Touch Display OP
 Adjust Setpoint – in User menu: press the User button, then press the Setpoints button; select desired
parameter (room air temperature etc.) and enter the desired value. Press the Enter button to confirm the
entered value.
 Stop/Restart Dehumidifier –– in User menu: press the User button, then press the System Restart button;
o
To stop and restart dehumidifier, press the System Restart button
o
To reboot Touch Display OP, press the Restart Display button
 Review Alarm records –– done via the Logs menu: press the Logs button, then press the Alarm Log button.
 Unlock device/dehumidifier, stopped and currently locked out on the alarm –– done via Logs menu: press
the Logs button, then press the Current Alarms button; press the Clear button next to the respective alarm
(the alarm that's locked out the device or entire dehumidifier).

For detailed information on TouchDisplay OP refer to DASV Touch Display Manual, provided with the dehumidifier
(or contact factory to obtain a copy).

OMM.F.S.ZZ.01
F – Interface and Communication
Pic. F.1
1
F‐

 Touch Display OP allows to:

Access Touch Display Menus
View dehumidifier current operational
statuses (Touch Display Communication,
Alarms, dehumidifier operational calls, etc.)
View controlled parameters' values (premise
air temperature, humidity and, if applicable,
pool water temperature) and current date
and time.

February

 2020
