Summary of Contents for Nexen AIR CHAMP XHW

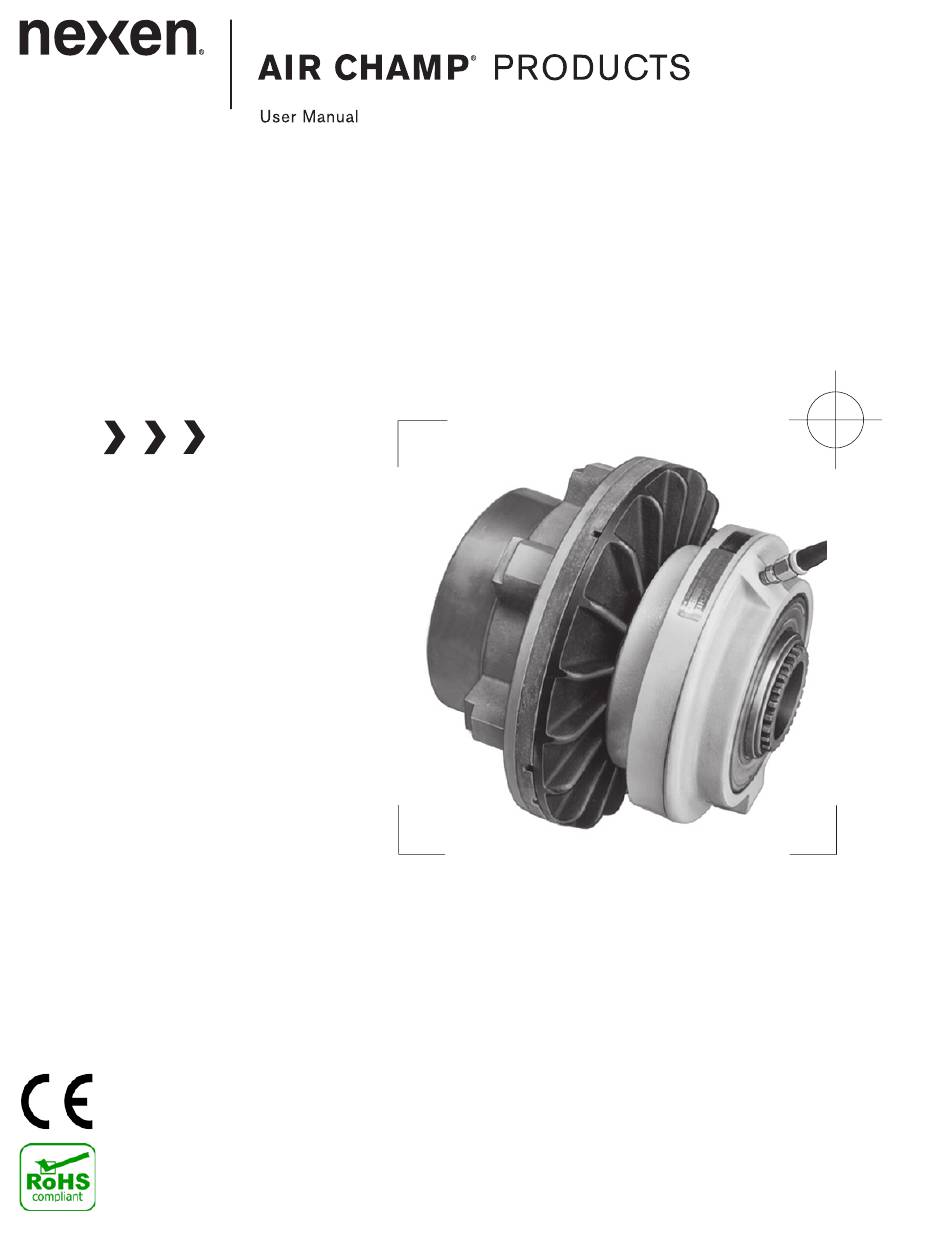

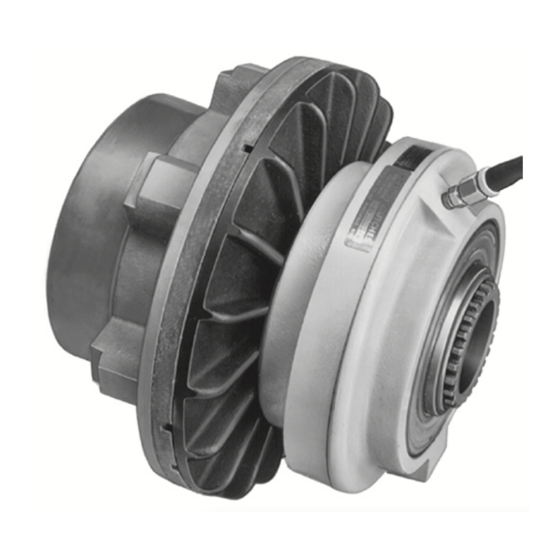

- Page 1 Model XHW Clutch FORM NO. L-20004-L-0914...
- Page 2 In accordance with Nexen’s established policy of constant product improvement, the specifications contained in this manual are subject to change without notice. Technical data listed in this manual are based on the latest information available at the time of printing and are also subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents General Specifications ----------------------------------------------------------------------------------------------------------------------- 4 General Safety Precautions ---------------------------------------------------------------------------------------------------------------- 4 Installation ----------------------------------------------------------------------------------------------------------------------------------------- 5 Lubrication ---------------------------------------------------------------------------------------------------------------------------------------- 6 Air Connections --------------------------------------------------------------------------------------------------------------------------------- 6 Operation ------------------------------------------------------------------------------------------------------------------------------------------ 7 Troubleshooting --------------------------------------------------------------------------------------------------------------------------------- 7 Parts Replacement --------------------------------------------------------------------------------------------------------------------------- 8 eplacement Parts ------------------------------------------------------------------------------------------------------------------------------- 9 Warranty ----------------------------------------------------------------------------------------------------------------------------------------- 10 FORM NO. L-20004-L-0914... -
Page 4: General Specifications
CAUTION Ensure proper guarding of the product is This product has possible pinch used. Nexen recommends the machine points. Care should be taken when builder design guarding in compliance with OSHA 29 CFR 1910 “Occupational Safety interacting with this product. -
Page 5: Installation
INSTALLATION Refer to Figures 1 & 2. SHEAVE MOUNT AND PILOT MOUNT TABLE 1 1. Insert Key (Item #21) into shaft keyway. 2. Slide clutch onto shaft, fully seating Key (Item #21) into Hub (Item #1). 3. Align sheaves and belts. 4. -
Page 6: Lubrication
NOTE Nexen pneumatically actuated devices require clean, pressure regulated air for maximum performance and life. All seals in Nexen Pneumatically operated devices are lubricated for life and do not require additional lubrication. However, some customers prefer to use an air line lubricator, which injects oil into the pressurized air, forcing an oil mist into the air chamber. -
Page 7: Operation
Never exceed life of facing material. Facing Ensure proper guarding of the product is life depends on the volume of material and the used. Nexen recommends the machine builder total energy over the life of the unit. Expected design guarding in compliance with OSHA 29 life (in hrs) can be found by: Time=Volume/ CFR 1910 “Occupational Safety and Health... -
Page 8: Parts Replacement
PARTS REPLACEMENT AIR CHAMBER BEARING (ITEM #11) CAUTION Working with spring loaded or tension 1. Remove Retaining Ring (Item #13) and Bearing Adapter loaded fasteners and devices can cause (Item #7). injury. Wear safety glasses and take the 2. Remove Air Chamber (Item #5) and Piston (Item # 6) appropriate safety precautions. -
Page 9: Replacement Parts
REPLACEMENT PARTS The Item or “Balloon” Number for all Nexen Products is When ordering replacement parts, specify model designation, used for part identification on all Product Parts List, Product item number, part description, and quantity. Purchase Price List, Unit Assembly Drawings, Bills of Materials, and replacement parts through your local Nexen Distributor. -
Page 10: Warranty
Warranties Nexen warrants that the Products will (a) be free from any defects in material or workmanship for a period of 12 months from the date of shipment, and (b) will meet and perform in accordance with the specifications in any engineering drawing specifically for the Product that is in Nexen’s current product catalogue, or that is accessible at the Nexen website, or that is...
