Summary of Contents for Nexen AIR CHAMP 1000

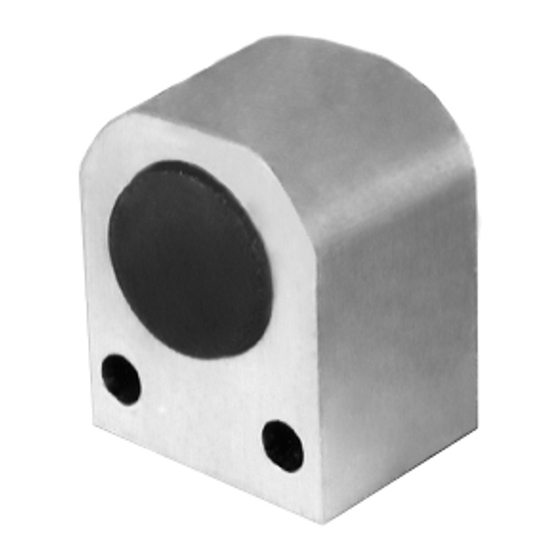

- Page 1 AIR CHAMP PRODUCTS Single Puck Caliper Brakes Model 625 and 1000 FORM NO. L-20118-C-1209...
- Page 2 In accordance with Nexen’s established policy of constant product improvement, the specifications contained in this manual are subject to change without notice. Technical data listed in this manual are based on the latest information available at the time of printing and are also subject to change without notice.
- Page 3 TABLE OF CONTENTS General Specifications ------------------------------------------------------------------------------------------------------------------------- 4 General Safety Precautions ------------------------------------------------------------------------------------------------------------------ 4 Lubrication ------------------------------------------------------------------------------------------------------------------------------------------- 5 Air Connections ----------------------------------------------------------------------------------------------------------------------------------- 5 Installation ------------------------------------------------------------------------------------------------------------------------------------------- 6 Replacement Parts ------------------------------------------------------------------------------------------------------------------------------- 7 Parts List --------------------------------------------------------------------------------------------------------------------------------------------- 7 Warranty ---------------------------------------------------------------------------------------------------------------------------------------------- 8 FORM NO. L-20118-C-1209...
- Page 4 WARNING CAUTION Ensure proper guarding of the product is The temperature limits for the used. Nexen recommends the machine product 4.5-100 degree builder design guarding in compliance with OSHA 29 CFR 1910 “Occupational Safety Celsius (40-220 degree F).
- Page 5 NOTE Note: Nexen pneumatically actuated devices require clean, pressure regulated air for maximum performance and life. Nexen pneumatically operated devices pneumatic seals are lubricated life, and do not require additional lubrication. However, some customers prefer to use an air line lubricator, which injects oil into the pressurized air, forcing an oil mist into the air chamber.
- Page 6 INSTALLATION 1. Provide a flat mounting surface below the rotor disc (See Figure 1). Rotor Disc 2. Drill and tap mounting surface. See Figure 2 and Table 1 for hole locations. Brake 3. Using socket head cap screws (#10-24 for Model 625 and 1/4-20 for Model 1000) mount brake (See Mounting Figure 1).
- Page 7 REPLACEMENT PARTS The item or balloon number for all Nexen products is used When ordering replacement parts, specify model designation, for part identification on all product parts lists, product item number, part description, and quantity. Purchase price lists, unit assembly drawings, bills of materials, and replacement parts through your local Nexen Distributor.
- Page 8 Buyer shall be obligated to pay or which Buyer may incur based upon, related to or arising out of its contracts with its customers or other third parties. In no event shall Nexen be liable for any amount of damages in excess of amounts paid by Buyer for Products or services as to which a breach of contract has been determined to exist.
