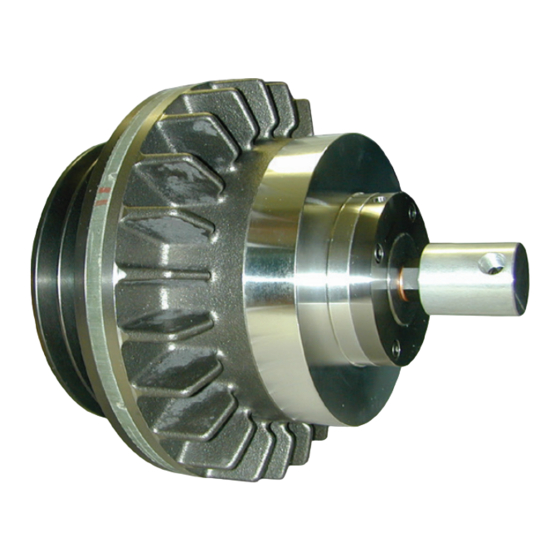

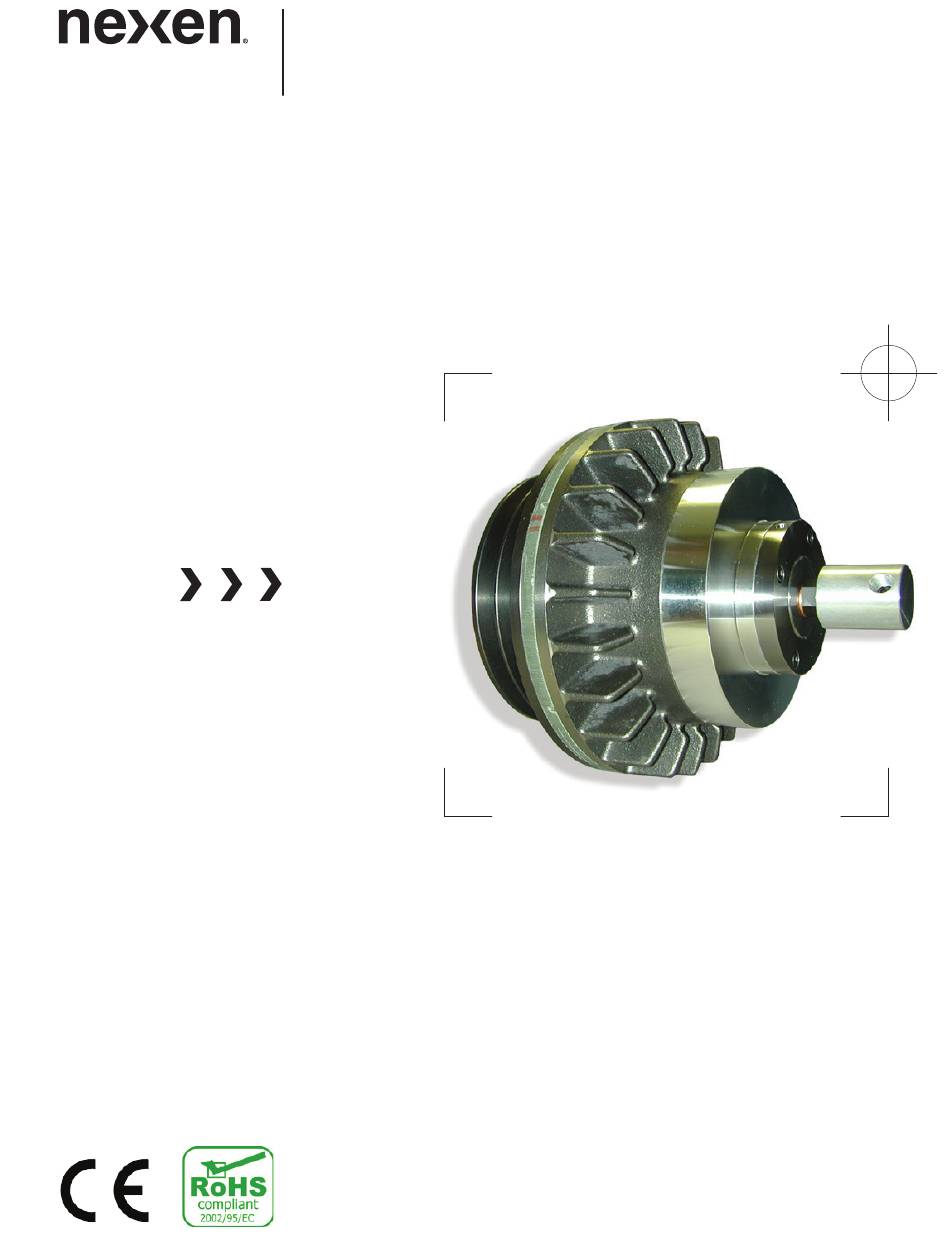

- Page 1 AIR CHAMP PRODUCTS ® User Manual High Speed Clutch Models MWHS & HWHS FORM NO. L-20005-Q-1214 FORM NO. L-20005-Q-1214...
- Page 2 In accordance with Nexen’s established policy of constant product improvement, the specifications contained in this manual are subject to change without notice. Technical data listed in this manual are based on the latest information available at the time of printing and are also subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS General Specifications ----------------------------------------------------------------------------------------------------------------------- 1 General Safety Precautions -----------------------------------------------------------------------------------------------------------------1 Installation -----------------------------------------------------------------------------------------------------------------------------------------2 Lubrication -----------------------------------------------------------------------------------------------------------------------------------------2 Air Connections ---------------------------------------------------------------------------------------------------------------------------------3 Operation ------------------------------------------------------------------------------------------------------------------------------------------3 Troubleshooting ---------------------------------------------------------------------------------------------------------------------------------4 Maintenance --------------------------------------------------------------------------------------------------------------------------------------4 Replacement Parts -----------------------------------------------------------------------------------------------------------------------------5 Repair Kits -----------------------------------------------------------------------------------------------------------------------------------------6 Warranty -------------------------------------------------------------------------------------------------------------------------------------------7 FORM NO. L-20005-Q-1214... -
Page 4: General Specifications
CAUTION WARNING Ensure proper guarding of the product is This product has possible pinch points. used. Nexen recommends the machine Care should be taken when interacting builder design guarding in compliance with this product. with OSHA 29 CFR 1910 “Occupa- tional Safety and Health Hazards. -
Page 5: Installation
NOTE Nexen pneumatically actuated devices require clean, pressure regulated air for maximum performance and life. All seals in Nexen pneumatically operated devices are lubricated for life, and do not require additional lubrication. However, some customers prefer to use an air line lubricator, which injects oil into the pressurized air, forcing an oil mist into the air chamber. -
Page 6: Air Connections
AIR CONNECTIONS All Nexen pneumatically actuated devices require clean, The following is a common air supply scheme used with this dry air that meets or exceeds ISO 8573.1:2001 Class product. This is an example and not an all-inclusive list. All 4.4.3 to quality. -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Air not getting to the Clutch due to a control Check control valve and air pressure valve malfunction or low air pressure. settings. Defective O-ring Seals causing air leaks. Replace O-ring Seals. Lack of lubrication on the Hub Spline or in the Lubricate the Hub Spline with a thin film of Failure to Engage Air Chamber. -
Page 8: Replacement Parts
REPLACEMENT PARTS LIST The item or balloon number for all Nexen products is used When ordering replacement parts, specify model designa- for part identification on all product parts lists, product tion, item number, part description, and quantity. Purchase price lists, unit assembly drawings, bills of materials, and replacement parts through your local Nexen Distributor. -
Page 9: Repair Kits
REPAIR KITS The repair kits listed include a friction facing, friction facing Model Product Number screws, spring, and O-rings. They do not contain bearings. MWHS 848400 Order replacement bearings separately. Specify model size HWHS 848500 and type (Sheave or Drive Disc). FORM NO. -
Page 10: Warranty
Buyer shall be obligated to pay or which Buyer may incur based upon, related to or arising out of its contracts with its customers or other third parties. In no event shall Nexen be liable for any amount of damages in excess of amounts paid by Buyer for Products or services as to which a breach of contract has been determined to exist.
