Swing-N-Slide TB 1408 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
R
TB 1408

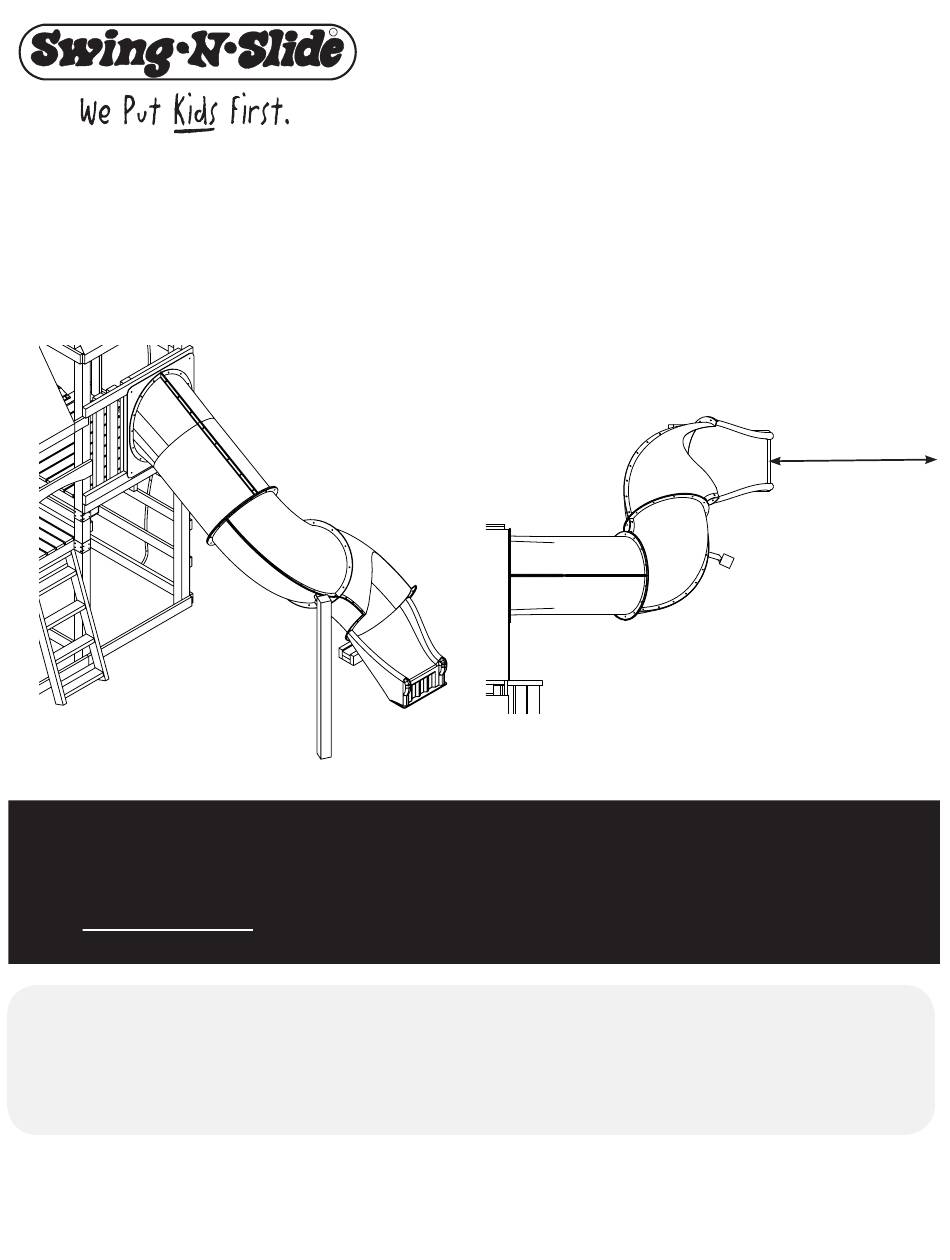

ASSEMBLY INSTRUCTIONS
72'' Minimum
Safety Zone
IMPORTANT!!
PLEASE READ BEFORE BEGINNING ASSEMBLY!!
Please make sure all lumber, hardware and accessory parts are accounted for. If you are missing anything,
DO NOT RETURN
please
to the store where purchased. Please call our Customer Service Department at
the number below.
To register your product visit:
http://www.swing-n-slide.com
Other benefits include information on product warranties, assembly plan updates, joining our mailing list for
new products and promotions, receiving our newsletter, and providing feedback on products.
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at
1-800-888-1232
