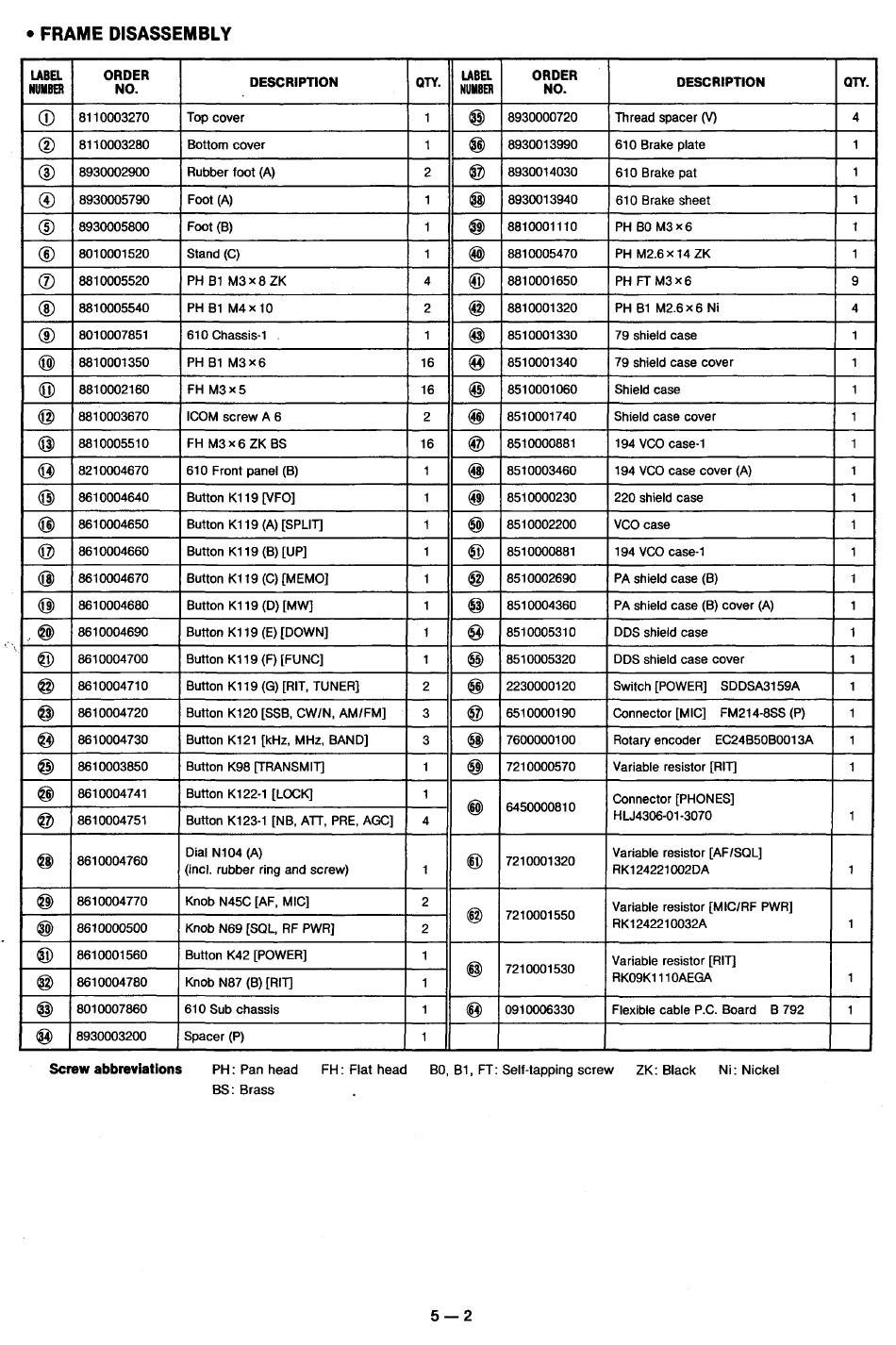

• FRAME DISASSEMBLY
LABEL ORDER
DESCRIPTION
QTY.
LABEL ORDER
DESCRIPTION QTY.
NUMBER NO.
NUMBER
NO.
©
8110003270 Top cover 1
@
8930000720 Thread spacer
M
4
®
8110003280 Bottom cover 1
@
8930013990 610 Brake plate 1
®
8930002900 Rubber foot (A)
2
@
8930014030
61 O Brake pat
1
©
8930005790
Foot (A)
1
@
8930013940
61 O Brake sheet
1
®
8930005800 Foot (B) 1
®>
8810001110 PH BO M3x6 1
®
8010001520 Stand (C) 1
@>
8810005470
PH M2.6 x 14 ZK 1
(J)
8810005520 PH B1 M3x8 ZK 4
@
8810001650 PH FT M3x6
9
®
8810005540 PH B1 M4x10 2
@
8810001320 PH B1 M2.6x6 Ni 4
®
8010007851 610 Chassis-1 1
@
8510001330 79 shield case 1
@>
8810001350 PH B1 M3x6 16
@
8510001340 79 shield case cover 1
(jJ)
8810002160 FH M3x5
16
@
8510001060 Shield case
1
@
8810003670 ICOM screw A 6 2
@
8510001740 Shield case cover 1
@
8810005510 FH M3x6 ZK BS 16
@
8510000881 194 VCO case-1 1
0
8210004670 610 Front panel (B} 1
@
8510003460 194 VCO case cover (A) 1
@
8610004640 Button K119 [VFO] 1
@
8510000230 220 shield case 1
@
8610004650
Button K119 (A) [SPLIT] 1
'®)
8510002200
VCO case 1
@
8610004660 Button K119 (B) [UP] 1
@
8510000881 194 VCO case-1 1
@
8610004670 Button K119 (C) [MEMO] 1
®
8510002690 PA shield case (B) 1
@
8610004680 Button K119 (D) [MW] 1
@
8510004360 PA shield case (B) cover (A) 1
"
@
8610004690 Button K119 (E) [DOWN] 1
@
8510005310 DDS shield case 1
~·
\
@
8610004700 Button K119 (F) [FUNC] 1
®
8510005320 DDS shield case cover
1
@
8610004710 Button K119 (G) [RIT, TUNER]
2
®
2230000120
Switch [POWER]
SDDSA3159A
1
@
8610004720 Button K120 [SSB, CW/N, AM/FM]
3
@
6510000190 Connector [MIC] FM214-8SS (P) 1
@
8610004730
Button K121 [kHz, MHz, BAND] 3
@
7600000100
Rotary encoder EC24B50B0013A 1
@
8610003850 Button K98 [TRANSMIT] 1
I@
7210000570 Variable resistor [RIT] 1
@
8610004741
Button K122-1 [LOCK] 1
Connector [PHONES]
~
6450000810
HLJ4306-01-3070 1
@
8610004751 Button K123-1 [NB, ATT, PRE, AGC] 4
@
8610004760
Dial N104 (A)
{!)
7210001320
Variable resistor [AF/SOL]
(incl. rubber ring and screw) 1 RK124221002DA 1
@
8610004770 Knob N45C [AF, MIC] 2
Variable resistor [MIC/RF PWR]
(@
7210001550
RK1242210032A 1
®)
8610000500 Knob N69 [SOL, RF PWR]
2
@
8610001560 Button K42 [POWER]
1
Variable resistor [RIT]
(@
7210001530
RK09K1110AEGA
1
@
8610004780
Knob N87 (B) [RIT] 1
@
8010007860 610 Sub chassis 1
@
0910006330
Flexible cable P.C. Board
B 792
1
@
8930003200
Spacer (P)
1
Screw abbreviations
PH: Pan head FH: Flat head BO, B1, FT: Self-tapping screw ZK: Black Ni: Nickel
BS: Brass
5-2
