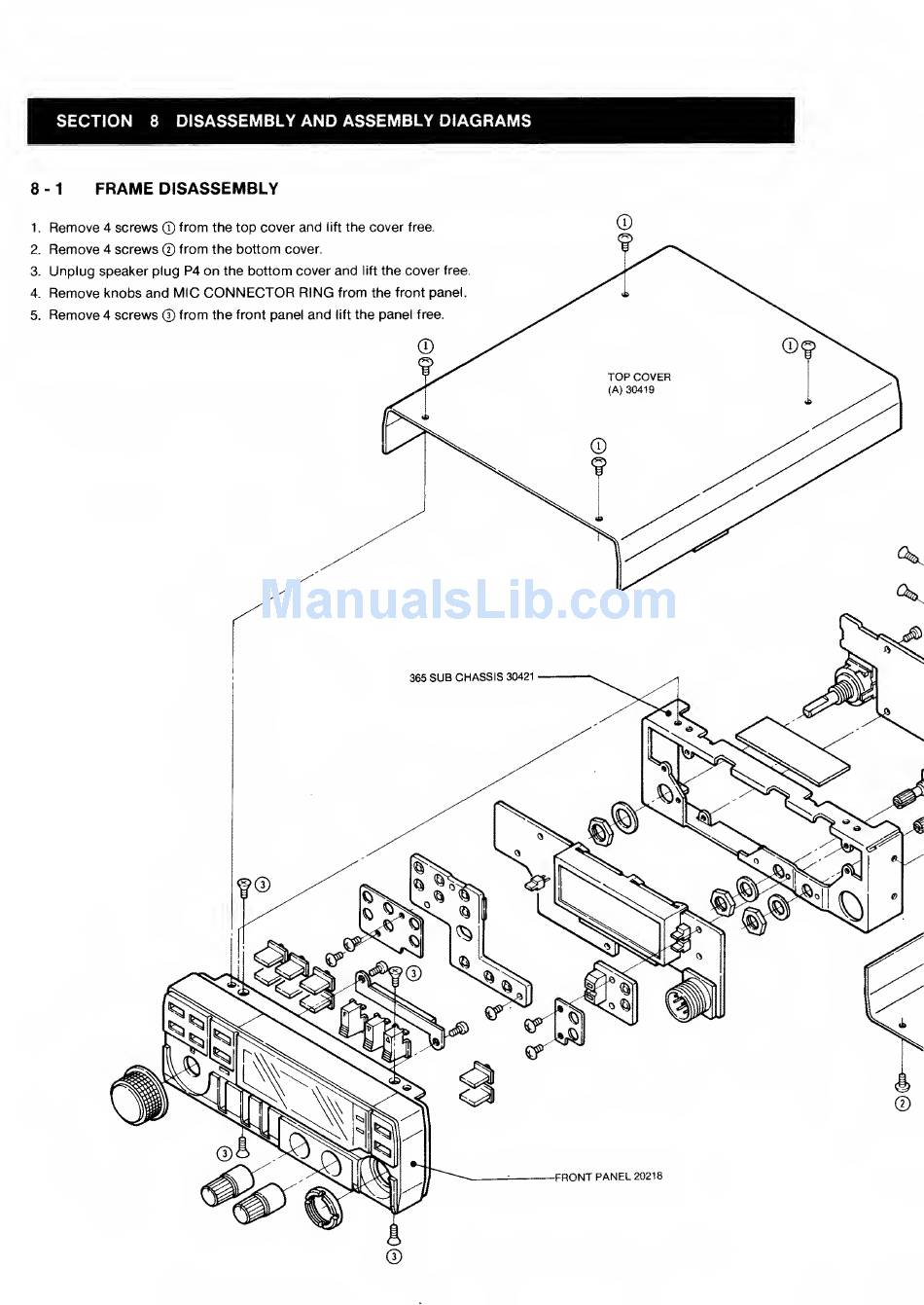

SECTION
8
DISASSEMBLY
AND
ASSEMBLY DIAGRAMS
FRAME
DISASSEMBLY
1.
Remove
4 screws
©
from
the
top cover
and
lift
the
cover
free.
2.
Remove
4
screws
®
from
the
bottom
cover.
3.
Unplug
speaker
plug
P4 on
the
bottom cover and
lift
the cover
free.
4.
Remove
knobs and
MIC
CONNECTOR
RING
from
the
front panel.
5.
Remove
4 screws
©
from
the
front
panel
and
lift
the panel
free.
TOP COVER
(A)
30419
365
SUB
CHASSIS
30421
-FRONT PANEL
20218
