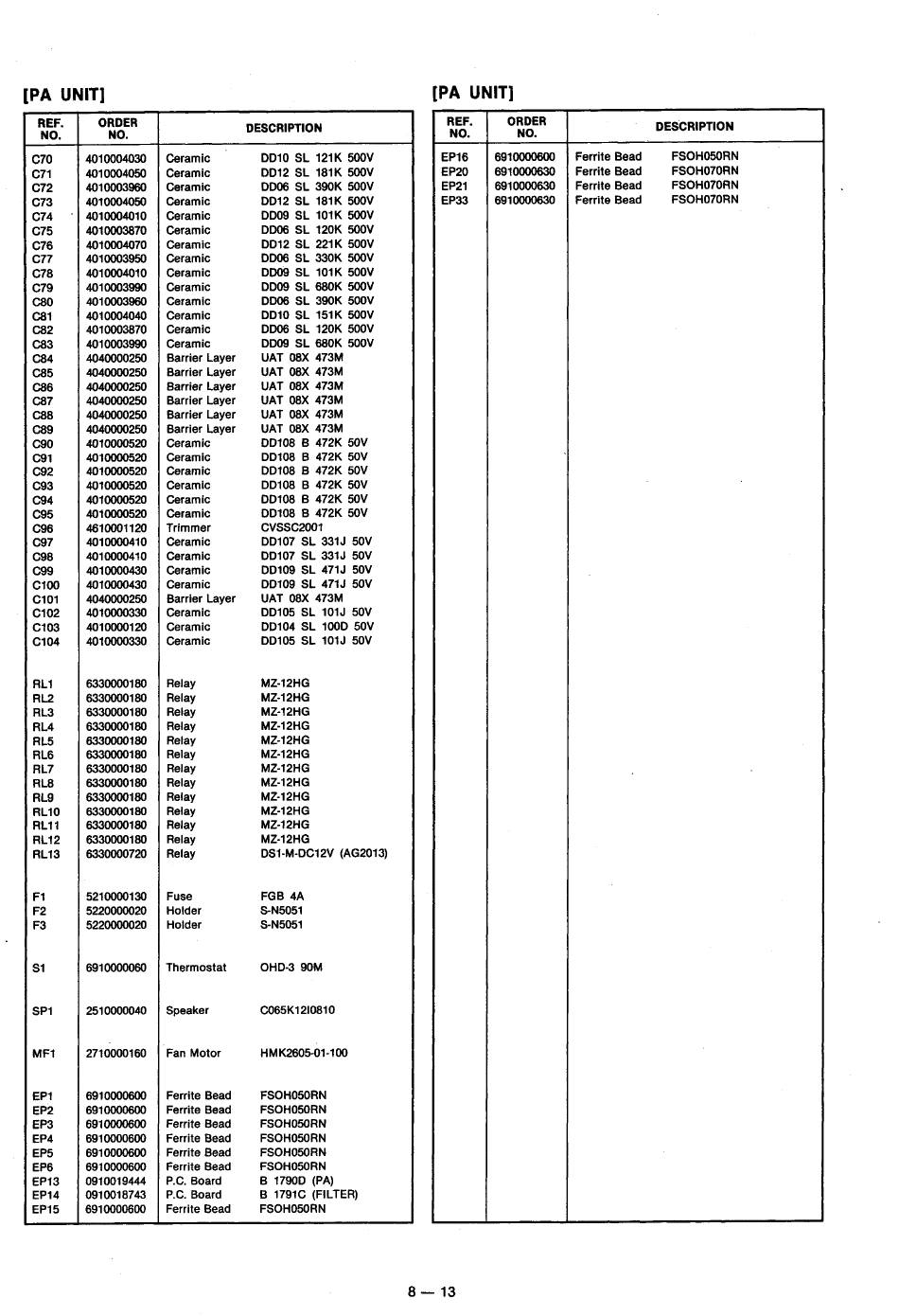

[PA UNIT]
[PA UNIT]
REF.
ORDER
DESCRIPTION
NO.
NO.
REF.
ORDER
DESCRIPTION
NO.
NO.
C70
4010004030
Ceramic
0010 SL 121K 500V
EP16
6910000600
Ferrite Bead
FSOH050RN
C71
4010004050
Ceramic
0012 SL 181K 500V
EP20
6910000630
Ferrite Bead
FSOH070RN
C72
4010003960
Ceramic
0006 SL 390K 500V
EP21
6910000630
Ferrite Bead
FSOH070RN
C73
4010004050
Ceramic
0012 SL 181K 500V
EP33
6910000630
Ferrite Bead
FSOH070RN
C74
4010004010
Ceramic
0009 SL 101K 500V
C75
4010003870
Ceramic
0006 SL 120K 500V
C76
4010004070
Ceramic
0012 SL 221K 500V
C77
4010003950
Ceramic
0006 SL 330K 500V
C78
4010004010
Ceramic
0009 SL 101K 500V
C79
4010003990
Ceramic
0009 SL 680K 500V
C80
4010003960
Ceramic
0006 SL 390K 500V
C81
4010004040
Ceramic
0010 SL 151K 500V
C82
4010003870
Ceramic
0006 SL 120K 500V
C83
4010003990
Ceramic
0009 SL 680K 500V
C84
4040000250
Barrier Layer
UAT
oax
473M
C85
4040000250
Barrier Layer
UAT
oax
473M
C86
4040000250
Barrier Layer
UAT
oax
473M
C87
4040000250
Barrier Layer
UAT 08X 473M
C88
4040000250
Barrier Layer
UAT 08X 473M
C89
4040000250
Barrier Layer
UAT 08X 473M
C90
4010000520
Ceramic
00108 B 472K 50V
C91
4010000520
Ceramic
00108 B 472K 50V
C92
4010000520
Ceramic
00108 B 472K 50V
C93
4010000520
Ceramic
00108 B 472K 50V
C94
4010000520
Ceramic
00108 B 472K 50V
C95
4010000520
Ceramic
00108 B 472K 50V
C96
4610001120
Trimmer
CVSSC2001
C97
4010000410
Ceramic
00107 SL 331J 50V
C98
4010000410
Ceramic
00107 SL 331J 50V
C99
4010000430
Ceramic
00109 SL 471J 50V
C100
4010000430
Ceramic
00109 SL 471J 50V
C101
4040000250
Barrier Layer
UAT 08X 473M
C102
4010000330
Ceramic
00105 SL 101J 50V
C103
4010000120
Ceramic
00104 SL 1000 50V
C104
4010000330
Ceramic
00105 SL 101J 50V
RL1
6330000180
Relay
MZ-12HG
RL2
6330000180
Relay
MZ·12HG
RL3
6330000180
Relay
MZ-12HG
RL4
6330000180
Relay
MZ-12HG
RL5
6330000180
Relay
MZ-12HG
RL6
6330000180
Relay
MZ-12HG
RL7
6330000180
Relay
MZ-12HG
RL8
6330000180
Relay
MZ-12HG
RL9
6330000180
Relay
MZ-12HG
RL10
6330000180
Relay
MZ-12HG
RL11
6330000180
Relay
MZ-12HG
RL12
6330000180
Relay
MZ-12HG
RL13
6330000720
Relay
OS1-M-OC12V (AG2013)
F1
5210000130
Fuse
FGB 4A
F2
5220000020
Holder
S-N5051
F3
5220000020
Holder
S-N5051
S1
6910000060
Thermostat
OH0-3 90M
SP1
2510000040
Speaker
C065K1210810
MF1
2710000160
Fan Motor
HMK2605-01-100
EP1
6910000600
Ferrite Bead
FSOH050RN
EP2
6910000600
Ferrite Bead
FSOH050RN
EP3
6910000600
Ferrite Bead
FSOH050RN
EP4
6910000600
Ferrite Bead
FSOH050RN
EP5
6910000600
Ferrite Bead
FSOH050RN
EP6
6910000600
Ferrite Bead
FSOH050RN
EP13
0910019444
P.C. Board
B 17900 (PA)
EP14
0910018743
P.C. Board
B 1791C (FILTER)
EP15
6910000600
Ferrite Bead
FSOH050RN
8-13
