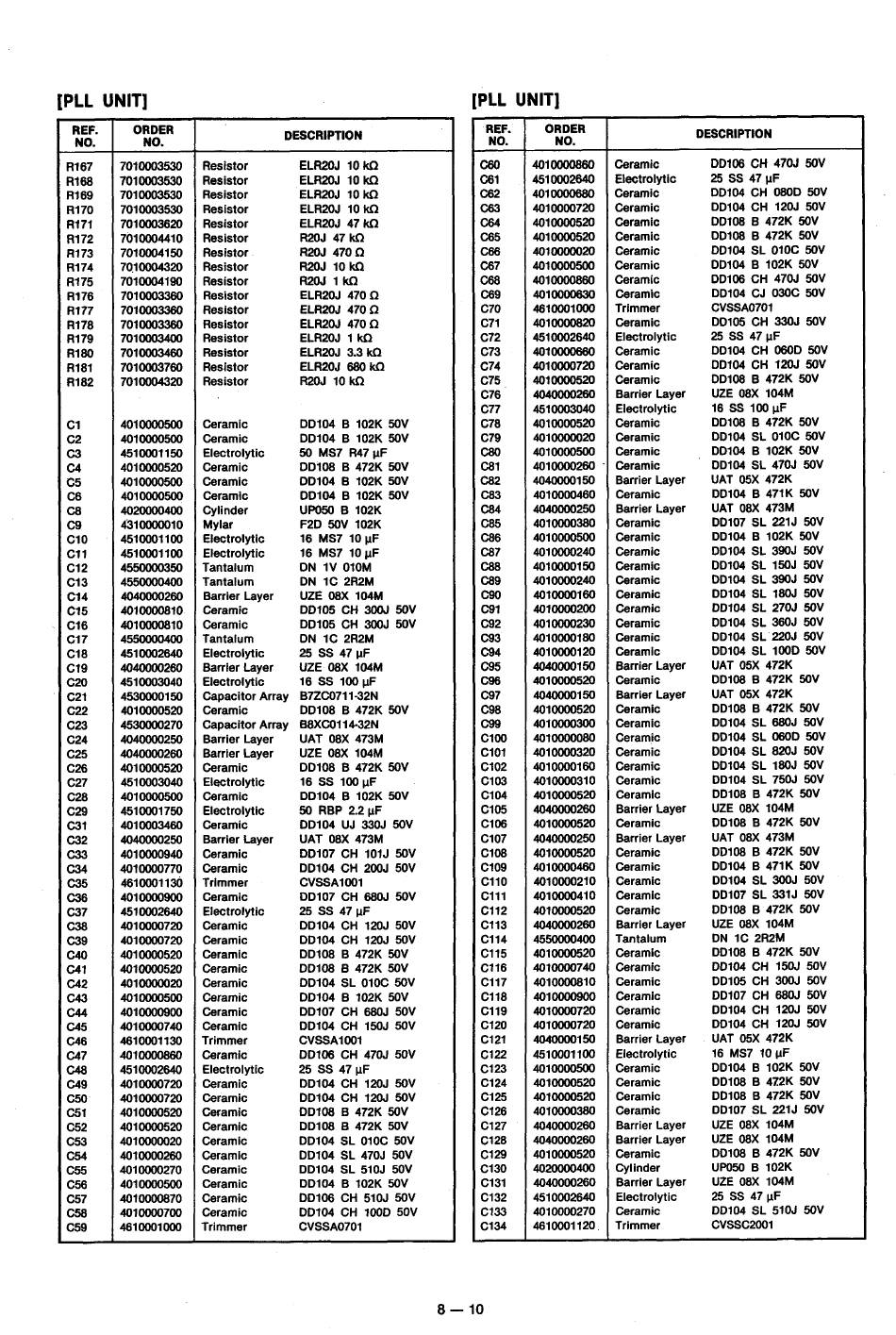

Icom IC-725 Service Manual page 51

(PLL UNIT)
(Pll UNIT)
REF. ORDER
DESCRIPTION
NO.
NO.
REF. ORDER
DESCRIPTION
NO. NO.
R167 7010003530
Resistor ELR20J 10 kO
C60
4010000860 Ceramic
00106 CH 470J 50V
R168 7010003530
Resistor ELR20J 10 kO
C61 4510002640
Electrolytic
25 SS 47 µF
R169
7010003530 Resistor ELR20J 10 kO
C62 4010000680
Ceramic
00104 CH 0800 50V
R170
7010003530 Resistor ELR20J 10 kO
C63 4010000720
Ceramic 00104 CH 120J 50V
R171
7010003620
Resistor ELR20J 47 kO
C64 4010000520 Ceramic
00108 B 472K 50V
R172
7010004410 Resistor R20J 47 kO
C65 4010000520
Ceramic
00108 B 472K 50V
R173
7010004150 Resistor R20J 4700
C66 4010000020
Ceramic 00104 SL 010C 50V
R174 70.10004320
Resistor R20J 10 kO
C67 4010000500
Ceramic 00104 B 102K 50V
R175 7010004190
Resistor
R20J
1 kO C66
4010000860 Ceramic
00106 CH 470J 50V
R176
7010003360 Resistor ELR20J 470 0
C69
4010000630 Ceramic
00104 CJ 030C 50V
R177
7010003360 Resistor ELR20J 4700
C70
4610001000 Trimmer CVSSA0701
R178 7010003360
Resistor ELR20J 4700
C71 4010000820
Ceramic
00105 CH 330J 50V
R179
7010003400 Resistor ELR20J 1 kO
C72 4510002640
Electrolytic
25 SS 47 µF
R180 7010003460
Resistor ELR20J 3.3 kO
C73 4010000680 Ceramic
00104 CH 0600 50V
R181 7010003760
Resistor ELR20J 680 kO C74
4010000720
Ceramic 00104 CH 120J 50V
R182 7010004320
Resistor R20J 10 kO C75
4010000520 Ceramic
00108 B 472K 50V
C76 4040000260
Barrier Layer
UZE 08X 104M
C77 4510003040
Electrolytic 16 SS 100 µF
C1
4010000500 Ceramic 00104 B 102K 50V
C78 4010000520 Ceramic
00108 B 472K 50V
C2 4010000500
Ceramic 00104 B 102K 50V C79
4010000020 Ceramic
00104 SL 010C 50V
C3 4510001150
Electrolytic 50 MS7 R47 µF
C80 4010000500 Ceramic
00104 B 102K 50V
C4
4010000520 Ceramic
00108 B 472K 50V C81
4010000260 Ceramic
00104 SL 470J 50V
C5
4010000500 Ceramic
00104 B 102K 50V C82 4040000150
Barrier Layer
UAT 05X 472K
C6
4010000500 Ceramic
00104 B 102K 50V C83 4010000460
Ceramic
00104 B 471K 50V
C8 4020000400
Cylinder UP050 B 102K
C84 4040000250
Barrier Layer UAT 08X 473M
C9
4310000010 Mylar F20 50V 102K
C85 4010000380
Ceramic 00107 SL 221J 50V
C10
4510001100 Electrolytic 16 MS7 10 µF
C86 4010000500
Ceramic 00104 B 102K 50V
C11
4510001100
Electrolytic 16 MS7 10 µF C87
4010000240 Ceramic
00104 SL 390J 50V
C12 4550000350 Tantalum ON 1V 010M
C88
4010000150 Ceramic
00104 SL 150J 50V
C13 4550000400 Tantalum ON 1C 2R2M
C89
4010000240 Ceramic
00104 SL 390J 50V
C14
4040000260 Barrier Layer UZE 08X 104M
C90
4010000160
Ceramic
00104 SL 180J 50V
C15
4010000810 Ceramic
00105 CH 300J 50V C91 4010000200
Ceramic
00104 SL 270J 50V
C16 4010000810
Ceramic 00105 CH
300J
50V
C92 4010000230 Ceramic
00104 SL 360J 50V
C17
4550000400 Tantalum ON 1C 2R2M C93
4010000180
Ceramic 00104 SL 220J 50V
C18 4510002640
Electrolytic 25 SS 47 µF
C94 4010000120
Ceramic 00104 SL 1000 50V
C19
4040000260
Barrier Layer UZE 08X 104M C95 4040000150
Barrier Layer
UAT 05X 472K
C20 4510003040 Electrolytic
16 SS 100 µF C96
4010000520 Ceramic
00108 B 472K 50V
C21
4530000150 capacitor Array B7ZC0711-32N
C97 4040000150
Barrier Layer UAT 05X 472K
C22
4010000520 Ceramic 00108 B 472K 50V C98
4010000520 Ceramic
00108 B 472K 50V
C23 4530000270
Capacitor Array B8XC0114-32N
C99 4010000300 Ceramic
00104 SL 680J 50V
C24 4040000250
Barrier Layer UAT 08X 473M
C100 4010000080 Ceramic
00104 SL 0600 50V
C25 4040000260 Barrier Layer
UZE 08X 104M C101
4010000320 Ceramic
00104 SL 820J 50V
C26
4010000520
Ceramic 00108 B 472K 50V C102 4010000160
Ceramic
00104 SL 180J 50V
C27
4510003040 Electrolytic 16 SS 100 µF
C103 4010000310
Ceramic
00104 SL 750J 50V
C28 4010000500
Ceramic 00104 B 102K 50V
C104
4010000520 Ceramic
00108 B 472K 50V
C29
4510001750 Electrolytic 50 RBP 2.2 µF
C105 4040000260
Barrier Layer UZE 08X 104M
C31 4010003460
Ceramic 00104 UJ 330J 50V
C106 4010000520
Ceramic 00108 B 472K 50V
C32 4040000250 Barrier Layer
UAT 08X 473M C107
4040000250 Barrier Layer
UAT 08X 473M
C33
4010000940 Ceramic 00107 CH 101J 50V
C108 4010000520
Ceramic 00108 B 472K 50V
C34
4010000770
Ceramic 00104 CH 200J 50V
C109 4010000460
Ceramic 00104 B 471K 50V
C35 4610001130
Trimmer CVSSA1001
C110 4010000210 Ceramic
00104 SL 300J 50V
C36 4010000900 Ceramic
00107 CH 680J 50V C111
4010000410 Ceramic
00107 SL 331J 50V
C37
4510002640 Electrolytic 25 SS 47 µF
C112 4010000520
Ceramic 00108 B 472K 50V
C38
4010000720 Ceramic 00104 CH 120J 50V
C113 4040000260 Barrier Layer
UZE 08X 104M
C39 4010000720
Ceramic 00104 CH 120J 50V
C114 4550000400 Tantalum
ON 1C 2R2M
C40 4010000520 Ceramic
00108 B 472K 50V
C115 4010000520
Ceramic 00108 B 472K 50V
C41
4010000520
Ceramic 00108 B 472K 50V C116
4010000740 Ceramic
00104 CH 150J 50V
C42
4010000020 Ceramic
00104 SL 010C 50V C117 4010000810
Ceramic
00105 CH 300J 50V
C43 4010000500
Ceramic 00104 B 102K 50V
C118 4010000900
Ceramic 00107 CH
680J
50V
C44
4010000900 Ceramic 00107 CH 680J 50V C119
4010000720 Ceramic
00104 CH 120J 50V
C45
4010000740
Ceramic 00104 CH 150J 50V C120
4010000720 Ceramic
00104 CH 120J 50V
C46 4610001130
Trimmer CVSSA1001
C121 4040000150 Barrier Layer
UAT 05X 472K
C47
4010000860 Ceramic
00106 CH 470J 50V
C122
4510001100
Electrolytic 16 MS7 10 µF
C48
4510002640 Electrolytic 25 SS 47 µF C123
4010000500 Ceramic
00104 B 102K 50V
C49 4010000720
Ceramic 00104 CH 120J 50V
C124 4010000520 Ceramic
00108 B 47.2K 50V
C50 4010000720
Ceramic 00104 CH 120J 50V
C125 4010000520 Ceramic
00108 B 472K 50V
C51 4010000520 Ceramic
00108 B 472K 50V
C126 4010000380
Ceramic 00107 SL 221J 50V
C52
4010000520
Ceramic 00108 B 472K 50V C127 4040000260
Barrier Layer
UZE 08X 104M
C53
4010000020 Ceramic 00104 SL 010C 50V
C128 4040000260
Barrier Layer
UZE 08X 104M
C54 4010000260
Ceramic 00104 SL 470J 50V
C129 4010000520
Ceramic 00108 B 472K 50V
C55
4010000270 Ceramic 00104 SL 510J 50V
C130 4020000400
Cylinder UP050 B 102K
C56
4010000500
Ceramic 00104 B 102K 50V
C131 4040000260
Barrier Layer UZE 08X 104M
C57
4010000870
Ceramic 00106 CH 510J 50V
C132 4510002640 Electrolytic
25 SS 47 µF
C58 4010000700 Ceramic 00104 CH 1000 50V
C133 4010000270
Ceramic
00104 SL 510J 50V
C59
4610001000 Trimmer CVSSA0701
C134 4610001120.
Trimmer CVSSC2001
