Model ATF™ End Control with Sensor Plus™

Switch Adjustment

The SENSOR PLUS Pan Half Round Sensor Switch is adjusted at the factory to a sensitivity of .25'' [6 mm]
and a time delay of 15 seconds, but they may be changed for a specific installation. The sensitivity
adjustment range is 0'' to .80'' [0 mm to 15 mm] and the time delay adjustment is 0 seconds to 600 seconds.
To adjust the Sensitivity:
• For less sensitivity — turn Sensitivity Adjusting Screw (item 4) clockwise
• For more sensitivity — turn Sensitivity Adjusting Screw (item 4) counter-clockwise
To adjust the Time Delay:
• For less time — turn Time Delay Adjusting Screw (item 5) clockwise (Light blinks fast)
• For more time — turn Time Delay Adjusting Screw (item 5) counter-clockwise (Light blinks slow)
2
1

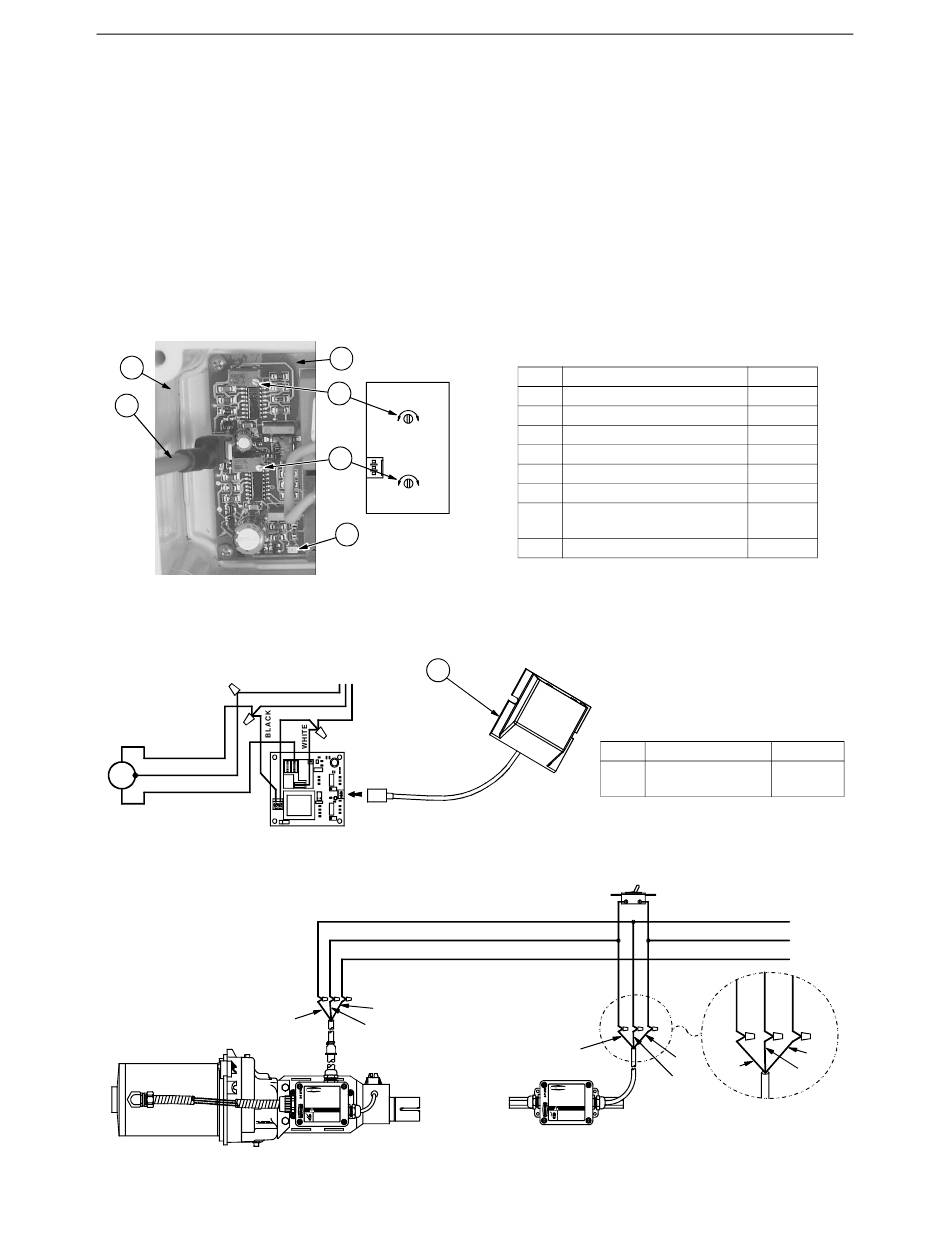

Internal Wiring
